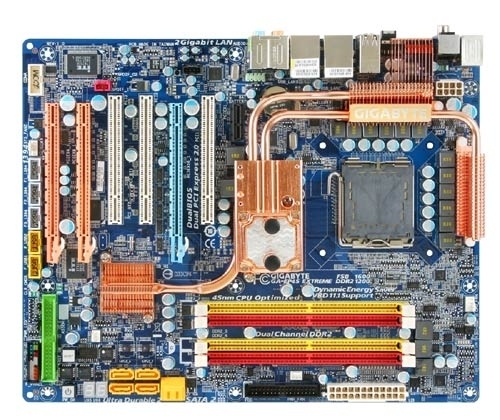

GIGABYTE GA-EP45-EXTREME S775 P45 ATX
Model GA-EP45-EXTREME S775 P45 ATXPart no. GA-EP45-EXTREMEEAN 818313005885
46 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors10
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111C
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 10
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111C
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-EP45-EXTREME S775 P45 ATX
- Part number
- GA-EP45-EXTREME
- EAN / UPC
- 818313005885, 4719331824129
- Also known as
- GIGABYTE GA-EP45-EXTREME S775 P45 ATX LGA 775 (Socket T)
Specifications
46 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.8 V |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 10 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 0 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft/ Windows/ Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 2 |
| Expansion slots | 2 x PCI Express x16 1 x PCI Express x4 1 x PCI Express x1 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version) |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
