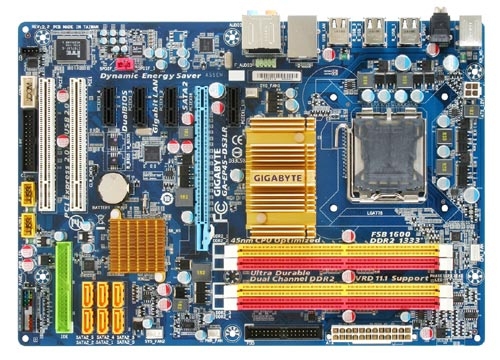

GIGABYTE GA-EP45-DS3LR motherboard LGA 775 (Socket T) ATX
Model GA-EP45-DS3LREAN 4719331832117
65 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 8
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-EP45-DS3LR
- Part number
- GA-EP45-DS3LR
- EAN / UPC
- 4719331832117
- Also known as
- GIGABYTE GA-EP45-DS3LR motherboard LGA 775 (Socket T) ATX
Specifications
65 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.8 V |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 0 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | No |
| Number of IEEE1394 connectors | 0 |
| TPM connector | No |

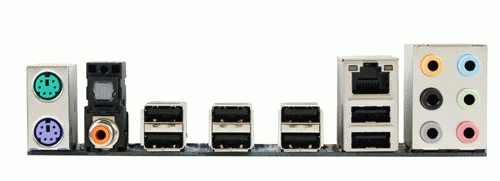

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 0 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| WiFi-AP antenna jack | 0 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Win Vista/XP |
| Overclocking features | PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 4 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| S/PDIF in port | Yes |
| Controller 2nd interface type | ATA-133/100/66/33 |
| Controller interface type | JMicron 368 + iTE IT8718 |
| Dimensions (WxDxH) | 305 x 210 x 0 mm |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
| Azalia Digital Header (ADH) connector | No |
| EZ plug connector | No |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | No |
| IPMI 2.0 slot | No |
| Special features | @BIOS Q-Flash Download Center Xpress Install Xpress Recovery2 EasyTune Dynamic Energy Saver Advanced Time Repair Q-Share |
| I/O ports | 1x IDE 1x 24-pin ATX 1x 4-pin ATX 12V 2x system fan 1x front panel 1x power LED |
