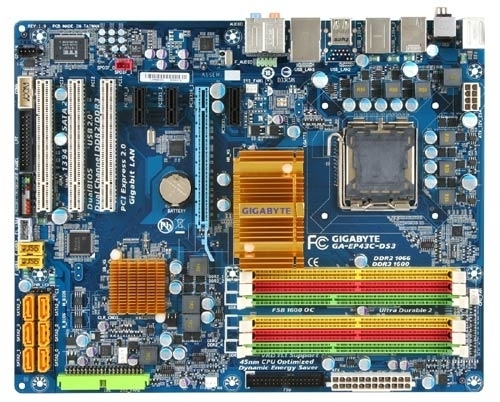

GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX
Model GA-EP43C-DS3EAN 4719331830083
43 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors12
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 12
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-EP43C-DS3
- Part number
- GA-EP43C-DS3
- EAN / UPC
- 4719331830083
- Also known as
- GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX
Specifications
43 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 12 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 3 |

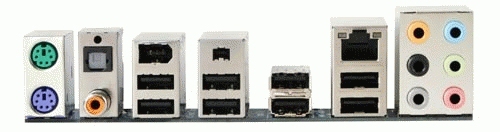

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista, XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| Expansion slots | 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX
All motherboard comparisons- GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-G31M-S2C motherboard LGA 775 (Socket T) micro ATXCompare specs

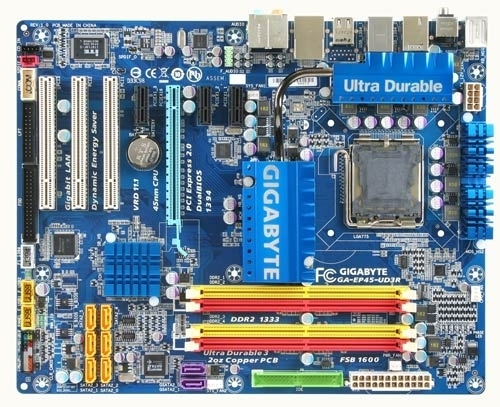

- GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-P31-ES3G motherboard LGA 775 (Socket T) ATXCompare specs

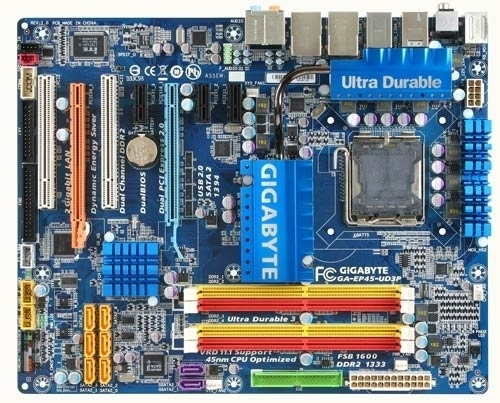

- GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-EP45-UD3R motherboard Intel® P45 LGA 775 (Socket T) ATXCompare specs
- GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-EP45-UD3P motherboard LGA 775 (Socket T) ATXCompare specs
- GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX vsASUS P6T DeluxeCompare specs
- GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX vsMSI P45-8D Memory LoverCompare specs

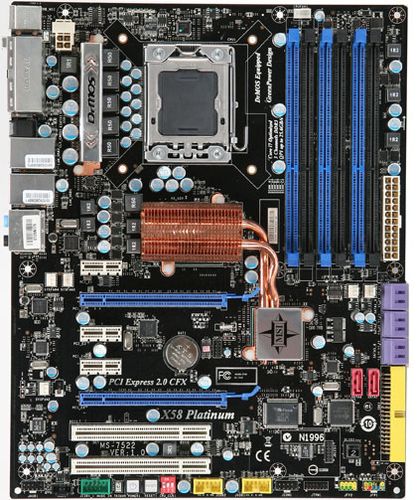

- GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX vsMSI X58 PlatinumCompare specs

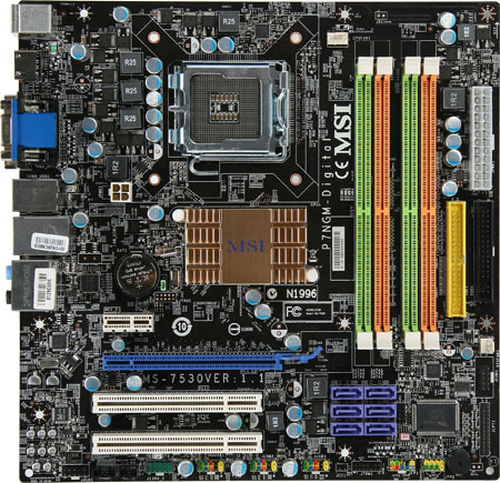

- GIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATX vsMSI P7NGM-Digital LGA 775 (Socket T) micro ATXCompare specs
