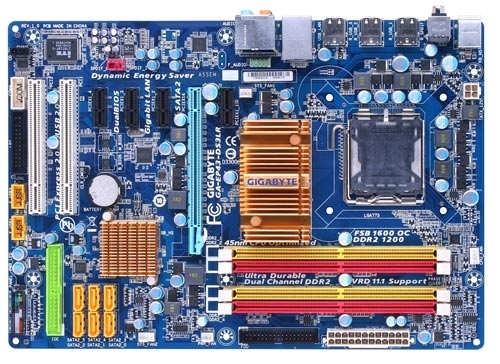

GIGABYTE GA-EP43-DS3LR motherboard LGA 775 (Socket T) ATX
Model GA-EP43-DS3LREAN 818313006639
45 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-EP43-DS3LR
- Part number
- GA-EP43-DS3LR
- EAN / UPC
- 818313006639
- Also known as
- GIGABYTE GA-EP43-DS3LR motherboard LGA 775 (Socket T) ATX
Specifications
45 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

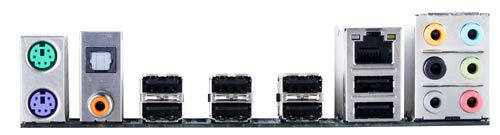

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 4 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version) |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | @BIOS Q-Flash Virtual Dual BIOS Download Center Xpress Install Xpress Recovery2 EasyTune Dynamic Energy Saver Advanced Time Repair Q-Share |
| RAID controller type | SATA |
What people say
Reviews & ratings
GIGABYTE GA-EP43-DS3LR motherboard LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-EP43-DS3LR motherboard LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-EP43-DS3LR motherboard LGA 775 (Socket T) ATX

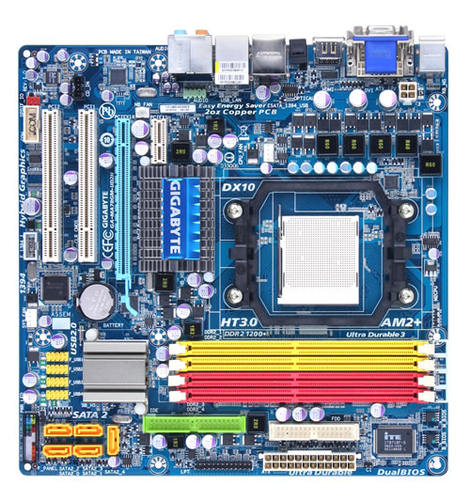

All motherboard comparisons- GIGABYTE GA-EP43-DS3LR motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-MA78GM-UD2H motherboard AMDCompare specs

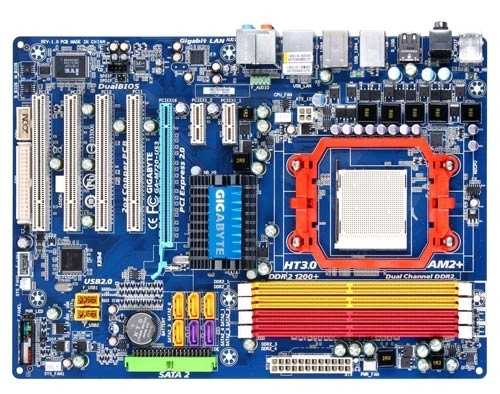

- GIGABYTE GA-EP43-DS3LR motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-M720-US3 motherboard Socket AM3 ATXCompare specs
