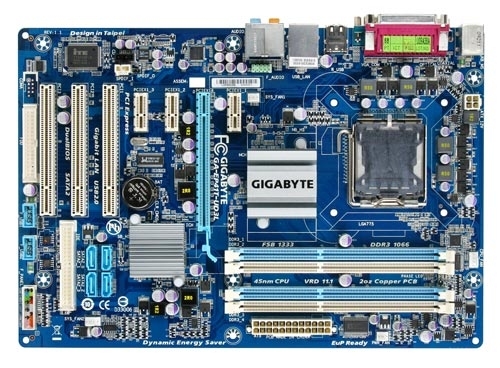

GIGABYTE GA-EP41T-UD3L motherboard LGA 775 (Socket T) ATX
Model GA-EP41T-UD3LEAN 4719331846138
41 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors8
- Networking features10/100/1000 Mbit
- Motherboard form factorATX
- PCI Express x1 slots3
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 8
- Networking features
- 10/100/1000 Mbit
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 3
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-EP41T-UD3L
- Part numbers
- GA-EP41T-UD3L, EP41T-UD3L
- EAN / UPC
- 4719331846138, 5052179088124
- Also known as
- GIGABYTE GA-EP41T-UD3L motherboard LGA 775 (Socket T) ATX
Specifications
41 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 8 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

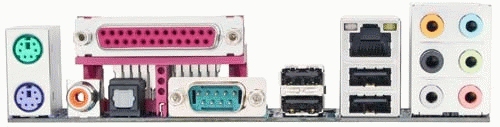

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Floppy disk drive connector | Yes |
