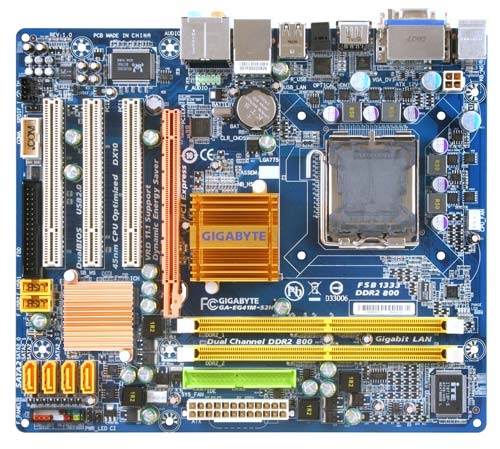

GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX
Model GA-EG41M-S2H
42 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking features10/100/1000 Mbit
- Motherboard form factormicro ATX
- PCI Express x16 slots1
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- 10/100/1000 Mbit
- Motherboard form factor
- micro ATX
- PCI Express x16 slots
- 1
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-EG41M-S2H
- Part number
- GA-EG41M-S2H
- Also known as
- GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX
Specifications
42 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory voltage | 1.8 V |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

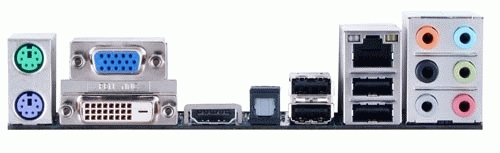

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| Digital audio optical out | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/XP/9X/ME |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Controller interface type | iTE IT8718 |
| Dimensions (WxDxH) | 244 x 207 x 0 mm |
| Floppy disk drive connector | Yes |
| Special features | @BIOS Q-Flash Virtual Dual BIOS Download Center Xpress Install Xpress Recovery2 EasyTune Dynamic Energy Saver Advanced Time Repair Q-Share |
What people say
Reviews & ratings
GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX
All motherboard comparisons- GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-P43-ES3G (rev. 1.0)Compare specs

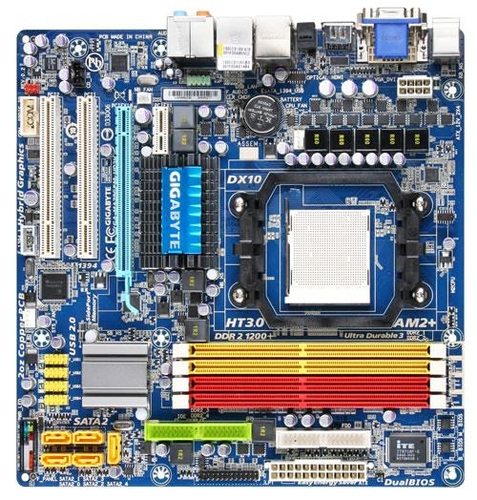

- GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-MA78GPM-UD2H motherboard AMDCompare specs
- GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-EP43-UD3L motherboard LGA 775 (Socket T) ATXCompare specs

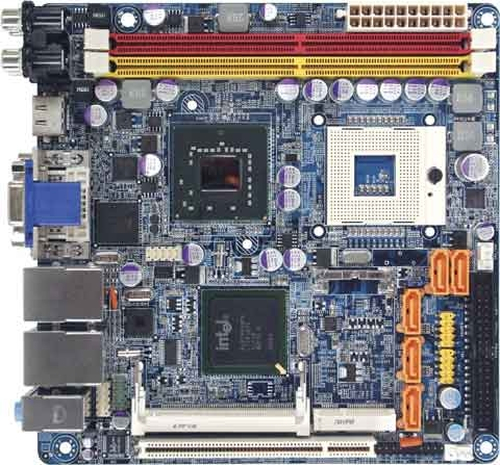

- GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-6KIEH-RH motherboard mini ITXCompare specs
- GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX vsASUS P5KPL-AM SECompare specs

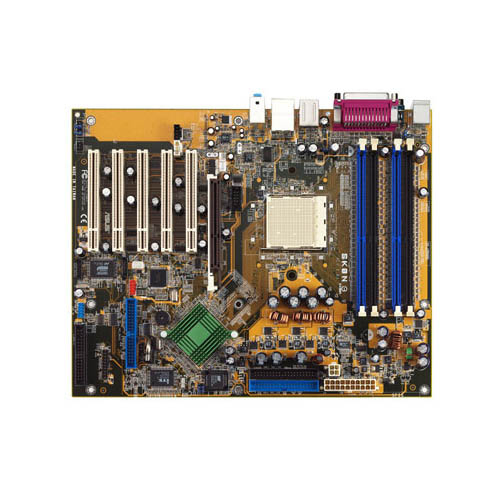

- GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX vsASUS SK8N motherboard Socket 940 ATXCompare specs
- GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX vsMSI X58 PRO-ECompare specs

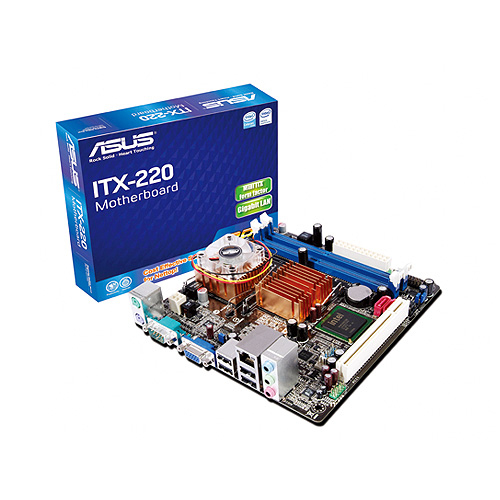

- GIGABYTE GA-EG41M-S2H motherboard LGA 775 (Socket T) micro ATX vsASUS ITX-220 motherboard LGA 775 (Socket T) mini ITXCompare specs
