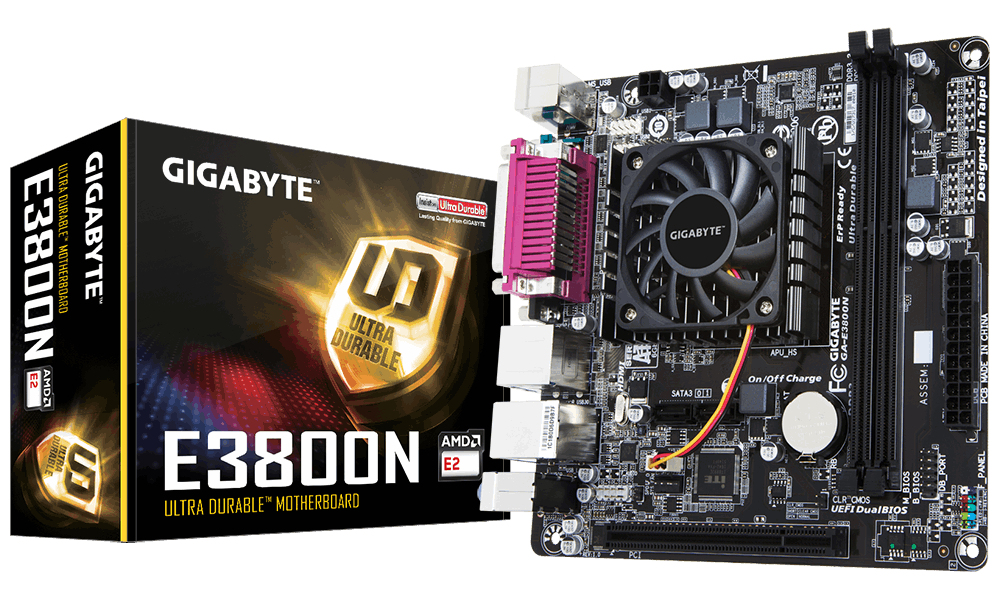

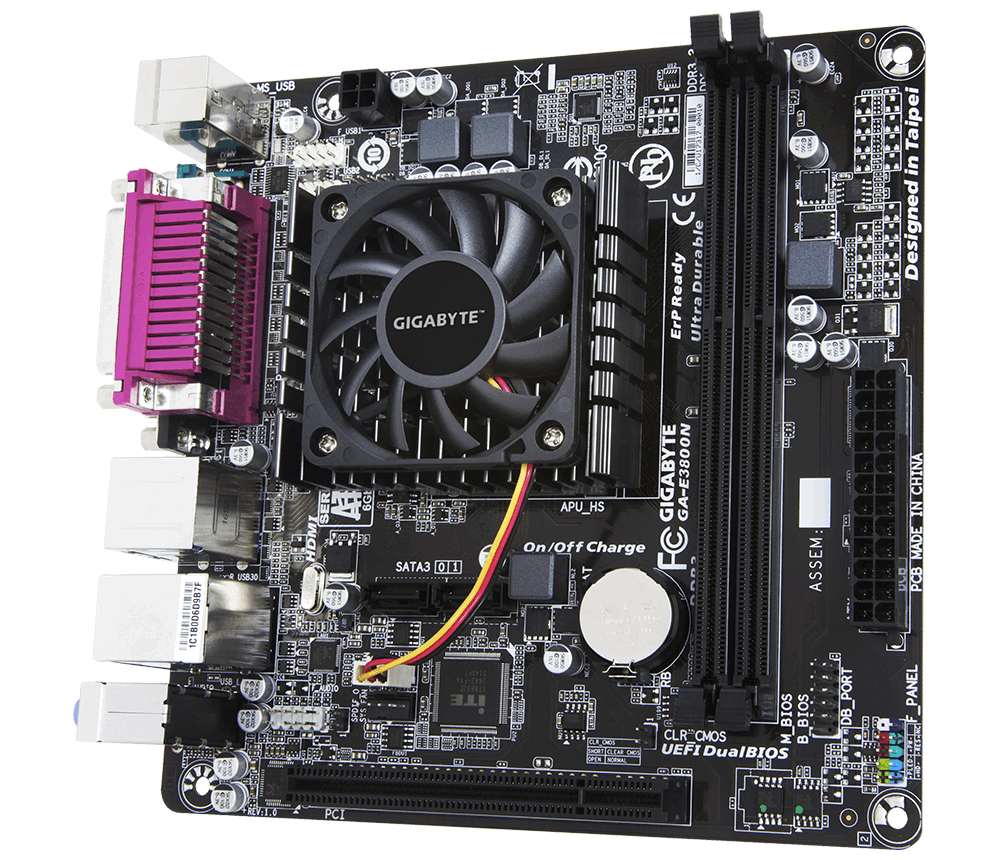

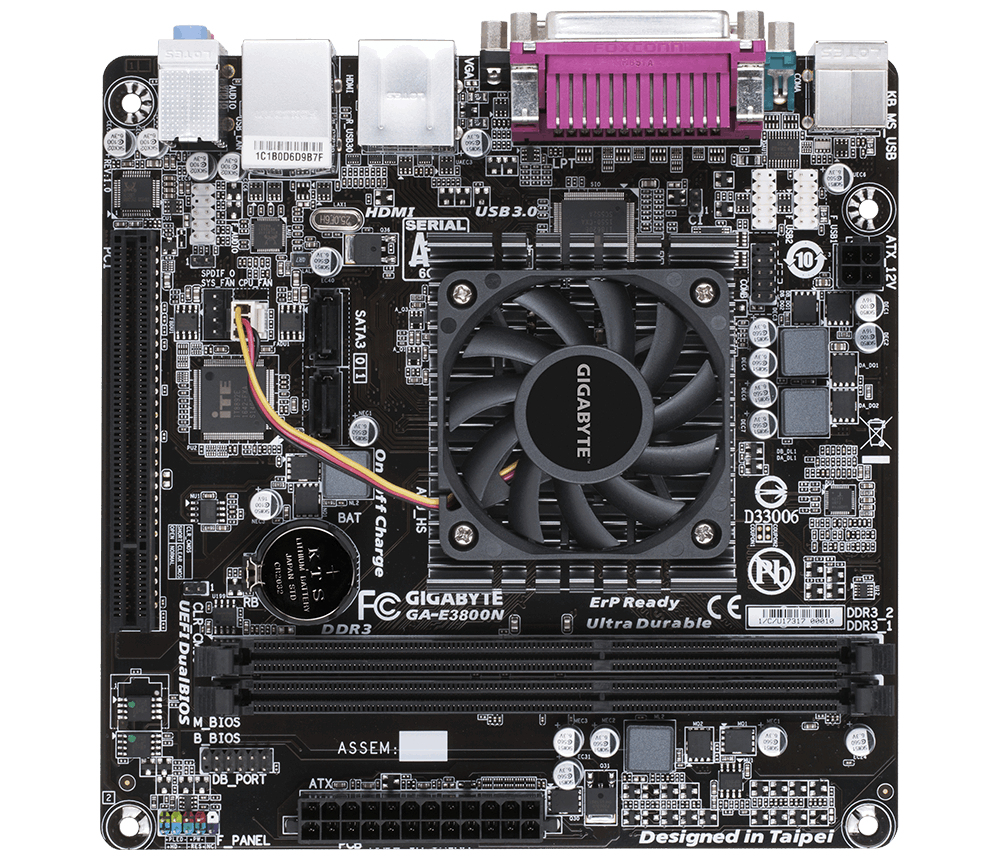

GIGABYTE GA-E3800N motherboard mini ITX
Model GA-E3800NEAN 4719331801731
63 specifications
- ProcessorE2-3800
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor
- E2-3800
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-E3800N
- Part number
- GA-E3800N
- EAN / UPC
- 4719331801731
- Also known as
- GIGABYTE GA-E3800N motherboard mini ITX
Specifications
63 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Compatible processor series | AMD E2 |
| Maximum number of SMP processors | 1 |
| Processor model | E2-3800 |
| Processor cores | 4 |
| Processor thermal power (max) | 15 W |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Single-channel |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 32 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Front panel connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Serial port headers | 1 |

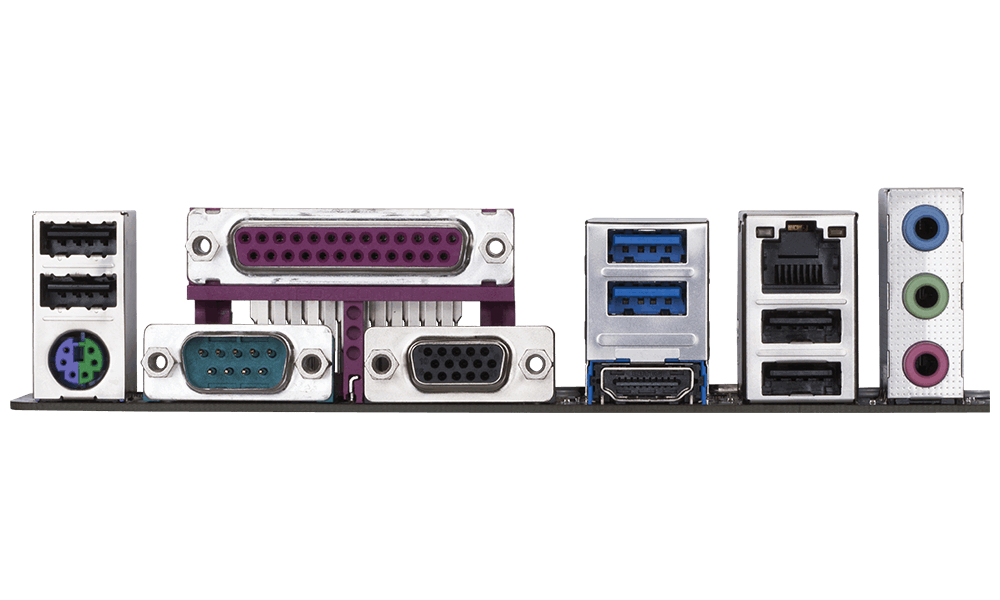

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | Mini PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windo |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Number of SATA Express ports | 2 |
| S/PDIF in connector | Yes |
| Analog audio output | 1 |
| Processor frequency | 1.3 GHz |
