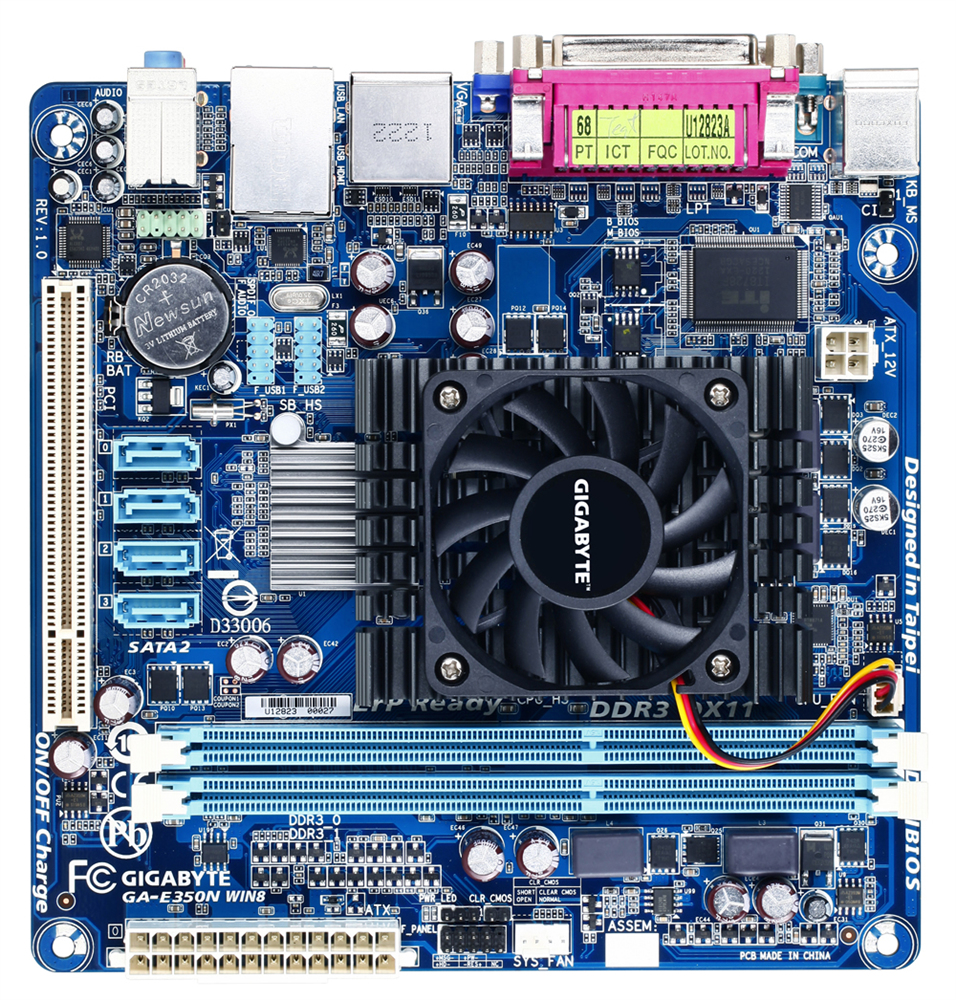

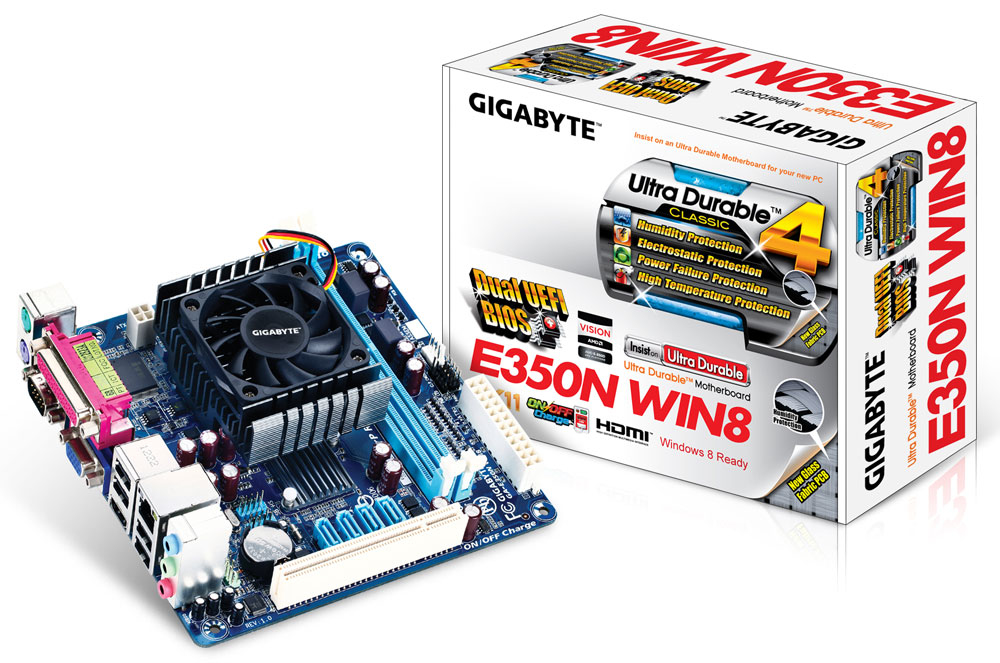

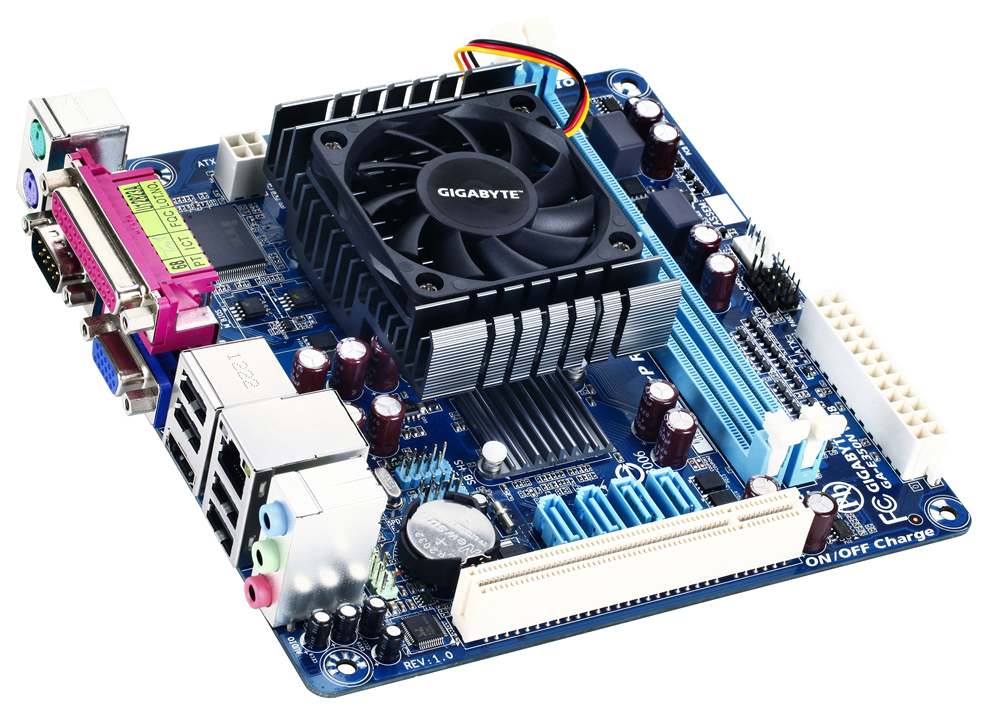

GIGABYTE GA-E350N WIN8

GIGABYTE GA-E350N WIN8

Model GA-E350N WIN8EAN 818313016690

62 specifications
  • ProcessorE-350D
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
See all specifications

Overview

Processor
E-350D
Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
2
Brand
GIGABYTE
Category
Motherboard
Model
GA-E350N WIN8
Part number
GA-E350N WIN8
EAN / UPC
818313016690, 4719331802127, 8183130166906
Also known as
GIGABYTE GA-E350N WIN8 motherboard AMD A45 FCH BGA 413 (Socket FT1) mini ITX

Specifications

62 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketBGA 413 (Socket FT1)
Compatible processor seriesAMD E
Processor modelE-350D

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsSingle-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB
Supported memory module capacities8GB

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 6310
Maximum resolution1920 x 1200 pixels
HDCPYes
DirectX version11

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors2
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes

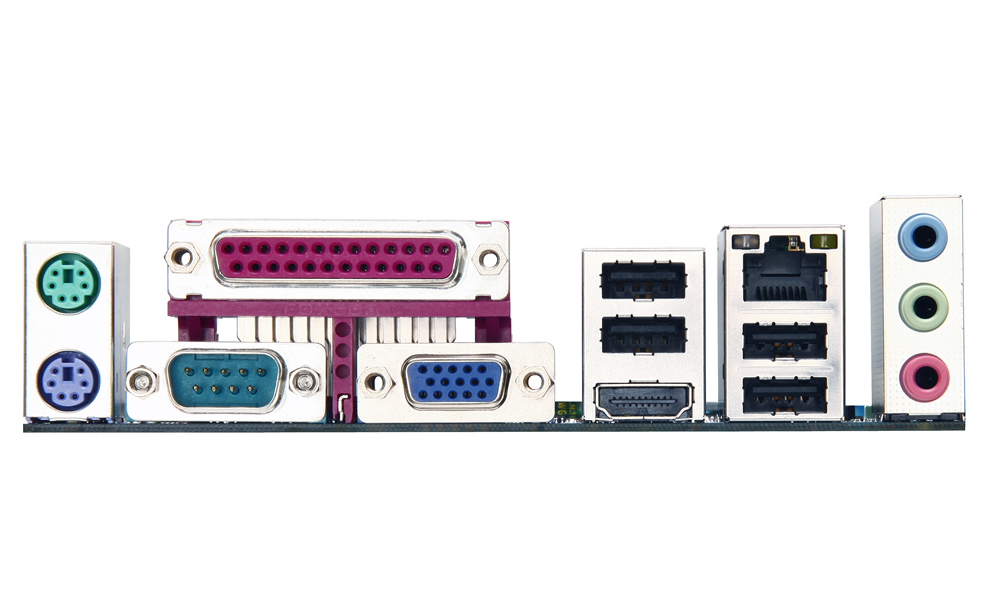

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forNettop
Motherboard form factormini ITX
Motherboard chipset familyAMD
Motherboard chipsetAMD A45 FCH
Audio chipRealtek ALC887
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Power supply, Temperature
Cooling typeActive
Power source typeATX

Expansion slots

PCI slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm
