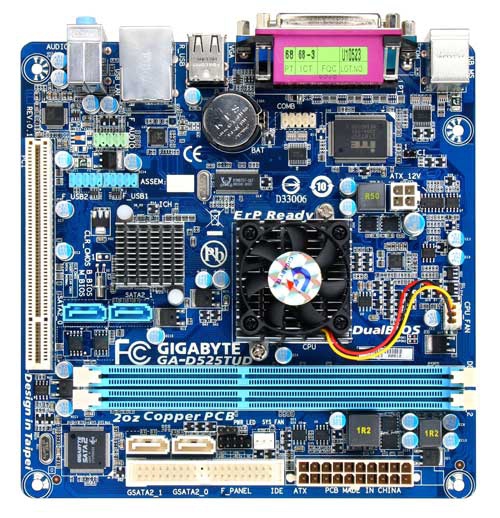

GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX
Model GA-D525TUDEAN 818313011176
57 specifications
- ProcessorD525
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
Overview
- Processor
- D525
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-D525TUD
- Part numbers
- GA-D525TUD, GA-D525TUD-R1.x
- EAN / UPC
- 818313011176, 999992410365, 4719331828226
- Also known as
- GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX
Specifications
57 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | NA (integrated CPU) |
| Processor model | D525 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 800 MHz |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 4 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

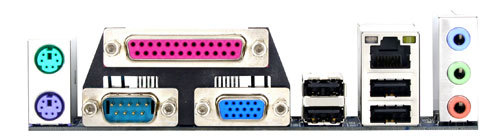

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® NM10 Express |
| Audio chip | Realtek ALC888B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi |
| Certification | FCC |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
| ACPI version | 1.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | iTE IT8720 |
What people say
Reviews & ratings
GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX
No reviews yet
Be the first to tell others how GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX
All motherboard comparisons- GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX vsGIGABYTE GA-X58-USB3 motherboard Socket B (LGA 1366) ATXCompare specs
- GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX vsGIGABYTE GA-7VM400MF-P motherboard Socket A (462) micro ATXCompare specs
- GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX vsGIGABYTE GA-G41MT-D3 motherboard LGA 775 (Socket T) micro ATXCompare specs

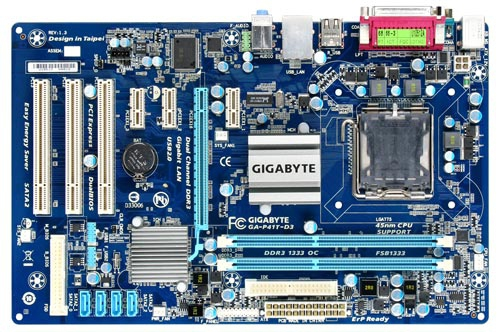

- GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX vsGIGABYTE GA-P41T-D3 motherboard LGA 775 (Socket T) ATXCompare specs
- GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX vsMSI 870-C45 AMD 770 Socket AM2 ATXCompare specs
- GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX vsASUS M4A87TD motherboard Socket AM3 ATXCompare specs

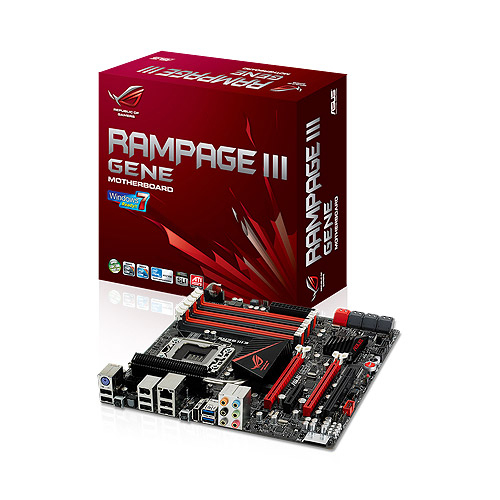

- GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX vsASUS Rampage III GENECompare specs

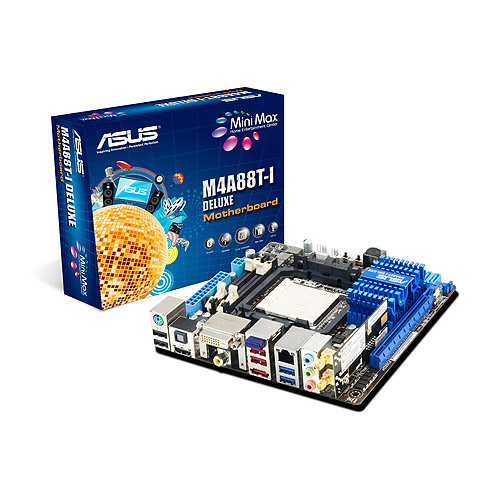

- GIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITX vsASUS M4A88T-I DeluxeCompare specs
