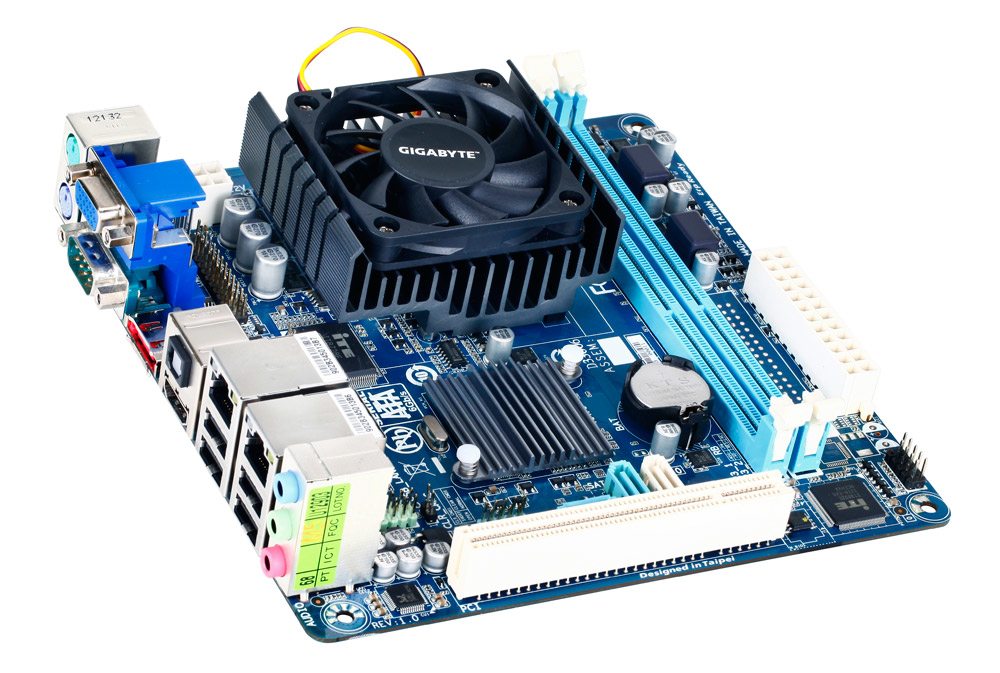

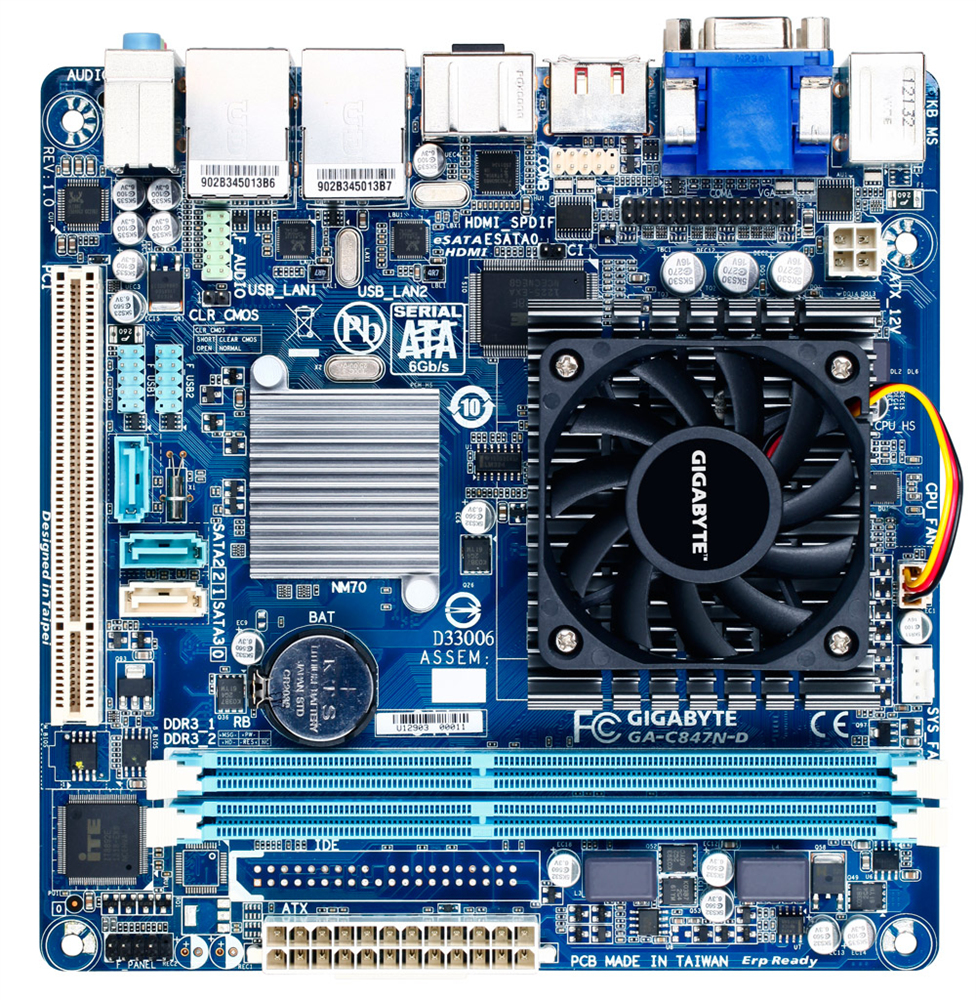

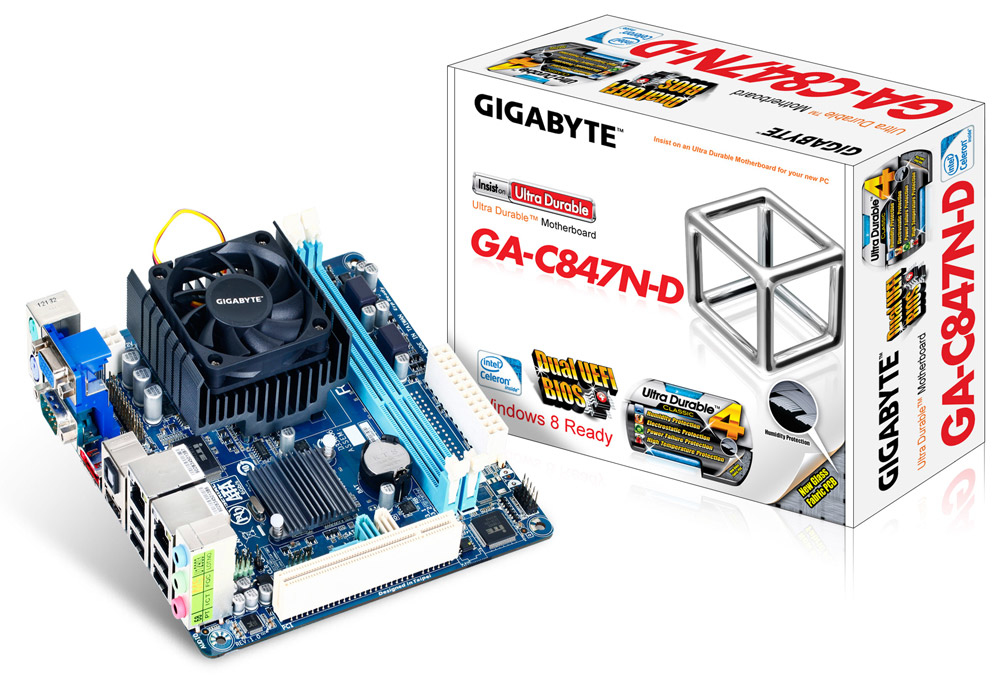

GIGABYTE GA-C847N-D (rev. 1.0)
Model GA-C847N-D (rev. 1.0)Part no. GA-C847N-DEAN 818313016591
76 specifications
- Processor847
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
Overview
- Processor
- 847
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-C847N-D (rev. 1.0)
- Part number
- GA-C847N-D
- EAN / UPC
- 818313016591, 8183130165916
- Also known as
- GIGABYTE GA-C847N-D (rev. 1.0) Intel® NM70 Express BGA 1023 mini ITX
Specifications
76 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 1023 |
| Compatible processor series | Intel® Celeron® |
| Maximum number of SMP processors | 1 |
| System bus rate | 5 GT/s |
| Processor model | 847 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 1920 x 1200 pixels |
| Discrete graphics support | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 1 |
| Number of SATA II connectors | 2 |
| Number of SATA connectors | 3 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Parallel connector | Yes |

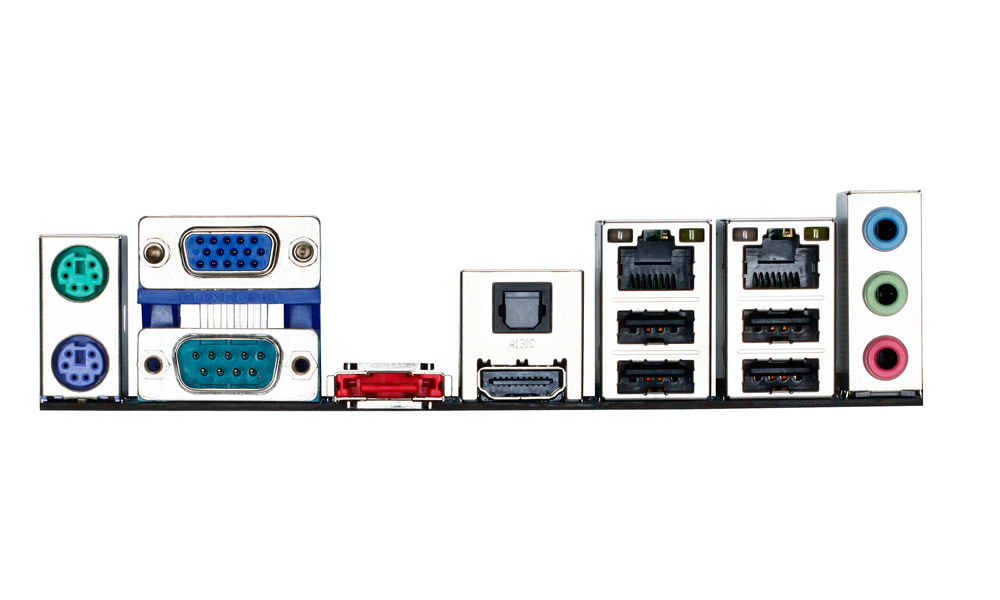

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Bluetooth | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® NM70 Express |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature |
| Cooling type | Active |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 8/7/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Trial software | Norton Internet Security |
| Bundled software | Intel Smart Connect |
Other features
| Specification | Value |
|---|---|
| Controller interface type | Intel NM70 |
| Audio output | 3 |
| PCI Express slots quantity | 0 |
| Quick installation guide | Yes |
| Mac operating systems supported | No |
What people say
Reviews & ratings
GIGABYTE GA-C847N-D (rev. 1.0)
No reviews yet
Be the first to tell others how GIGABYTE GA-C847N-D (rev. 1.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-C847N-D (rev. 1.0)

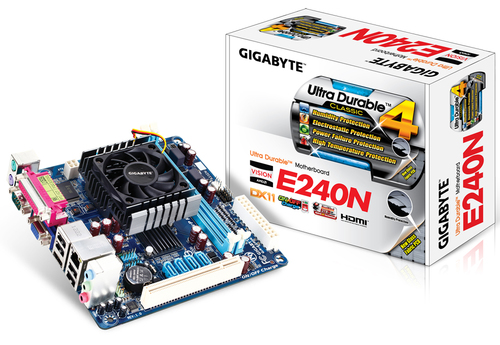

All motherboard comparisons- GIGABYTE GA-C847N-D (rev. 1.0) vsGIGABYTE GA-E240N-LA motherboard AMD A45 FCH BGA 413 (Socket FT1) mini ITXCompare specs
- GIGABYTE GA-C847N-D (rev. 1.0) vsGIGABYTE GA-H61TN motherboard Intel® H61 LGA 1155 (Socket H2) mini ITXCompare specs

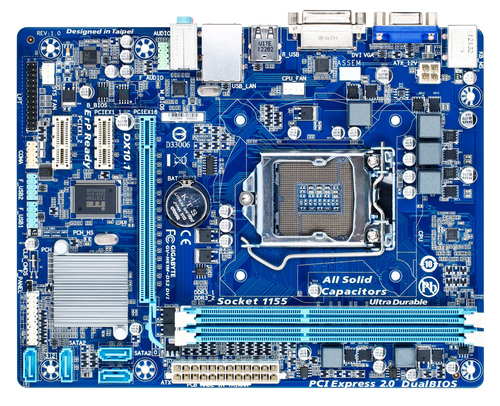

- GIGABYTE GA-C847N-D (rev. 1.0) vsGIGABYTE GA-H61M-DS2 DVICompare specs
- GIGABYTE GA-C847N-D (rev. 1.0) vsGIGABYTE GA-E240N motherboard AMD A45 FCH BGA 413 (Socket FT1) mini ITXCompare specs
- GIGABYTE GA-C847N-D (rev. 1.0) vsMSI FM2-A85XMA-P33 motherboard AMD A85X Socket FM2 micro ATXCompare specs
- GIGABYTE GA-C847N-D (rev. 1.0) vsMSI FM2-A85XMA-E35 motherboard AMD A85X Socket FM2 micro ATXCompare specs

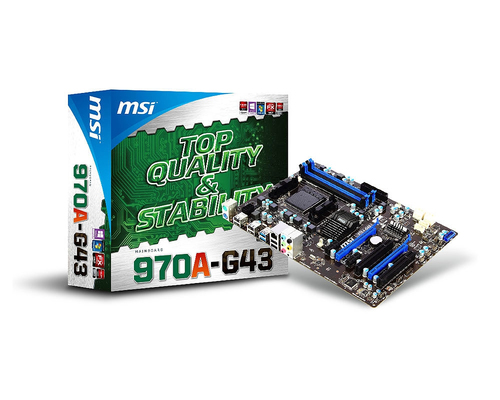

- GIGABYTE GA-C847N-D (rev. 1.0) vsMSI 970A-G43 AMD 970 Socket AM3+ ATXCompare specs
