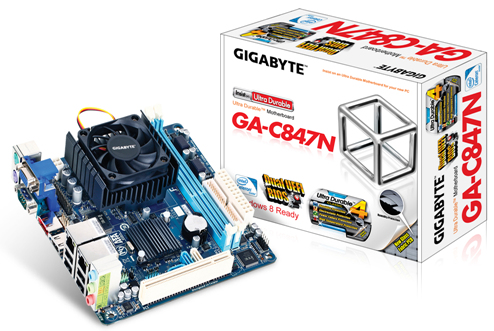

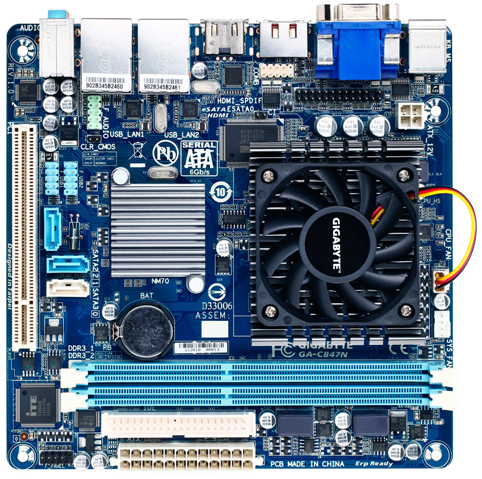

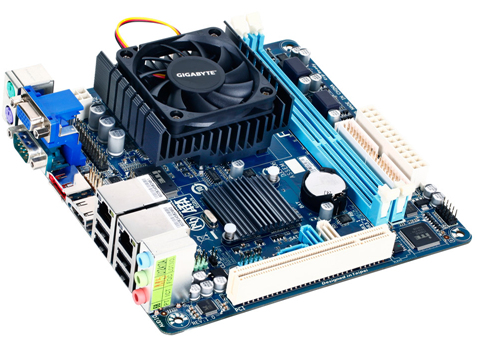

GIGABYTE GA-C847N motherboard Intel® NM70 Express mini ITX

GIGABYTE GA-C847N motherboard Intel® NM70 Express mini ITX

Model GA-C847NEAN 818313016447

53 specifications
  • Processor847
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor
847
Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
GA-C847N
Part number
GA-C847N
EAN / UPC
818313016447
Also known as
GIGABYTE GA-C847N motherboard Intel® NM70 Express mini ITX

Specifications

53 specifications in 12 groups

Processor

Processor manufacturerIntel
Compatible processor seriesNot supported
Processor model847

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors1
Number of SATA II connectors2
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Parallel connectorYes

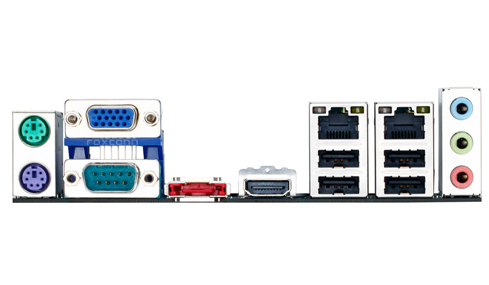

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
COM ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Networking features10/100/1000 Mbit

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® NM70 Express
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMicrosoft Windows XP/7/8

Expansion slots

PCI slots1

BIOS

BIOS typeUEFI AMI
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

Drivers includedYes
Bundled softwareNorton Internet Security Intel Smart Connect Technology

Other features

Audio output3
