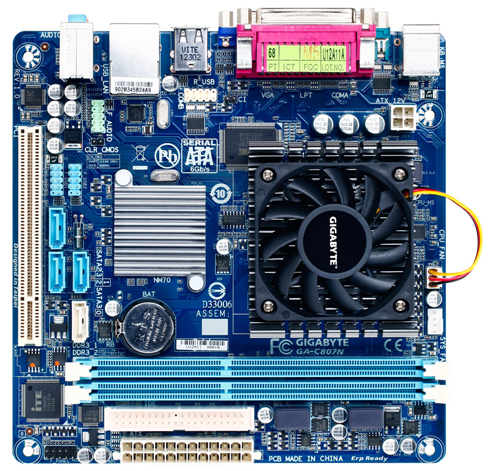

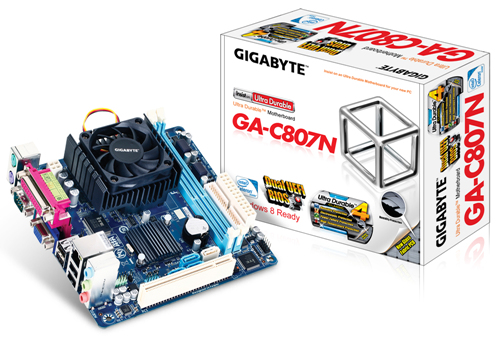

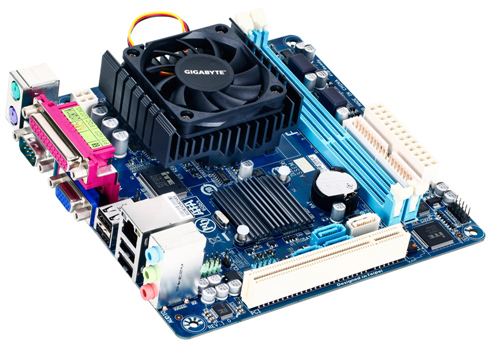

GIGABYTE GA-C807N motherboard mini ITX

GIGABYTE GA-C807N motherboard mini ITX

Model GA-C807NEAN 4719331845216

51 specifications
  • Processor807
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor
807
Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
GA-C807N
Part number
GA-C807N
EAN / UPC
4719331845216
Also known as
GIGABYTE GA-C807N motherboard mini ITX

Specifications

51 specifications in 12 groups

Processor

Processor manufacturerIntel
Compatible processor seriesNot supported
Processor model807

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors1
Number of SATA II connectors3
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1

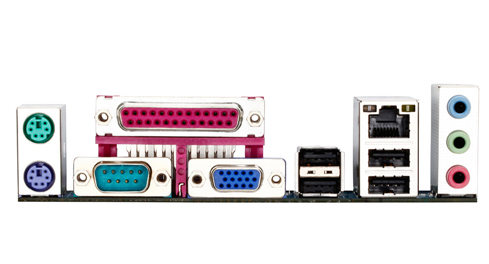

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Networking features10/100/1000 Mbit

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Audio chipRealtek ALC887
Audio output channels7.1 channels
PC health monitoringCPU, Fan
Power source typeATX
Compatible operating systemsMicrosoft Windows XP/Vista/7/8

Expansion slots

PCI slots1

BIOS

BIOS typeUEFI AMI
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

Drivers includedYes
Bundled softwareNorton Internet Security Intel Smart Connect Technology

Other features
