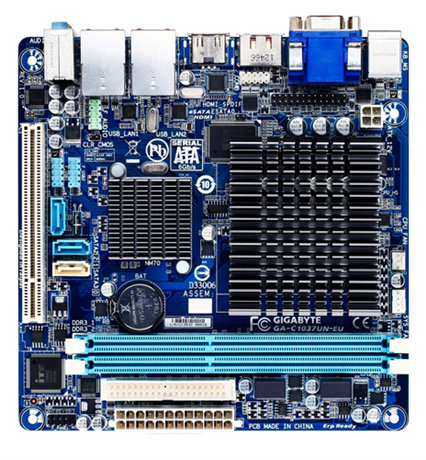

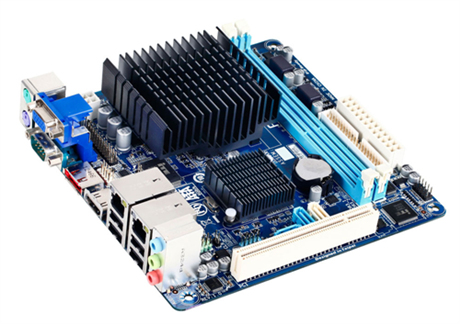

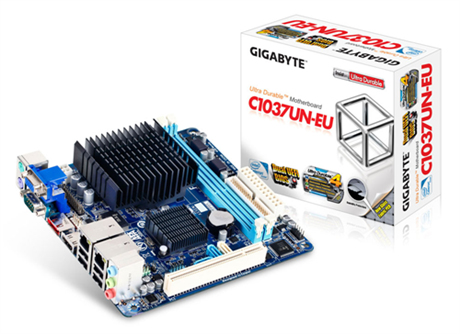

GIGABYTE GA-C1037UN-EU motherboard mini ITX
Model GA-C1037UN-EUEAN 4719331840198
60 specifications
- Processor1037U
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesIDE, SATA II, SATA III
- Maximum graphics card memory1024 MB
- USB 2.0 connectors2
Overview
- Processor
- 1037U
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- IDE, SATA II, SATA III
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-C1037UN-EU
- Part number
- GA-C1037UN-EU
- EAN / UPC
- 4719331840198
- Also known as
- GIGABYTE GA-C1037UN-EU motherboard mini ITX
Specifications
60 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron® |
| Processor model | 1037U |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | IDE, SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 1 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Parallel connector | Yes |
| Serial port headers | 1 |

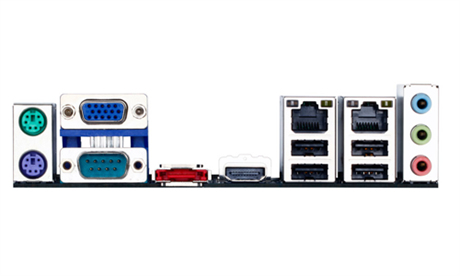

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton® Internet Security (OEM ) Intel® Smart Connect Technology |
Other features
| Specification | Value |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
