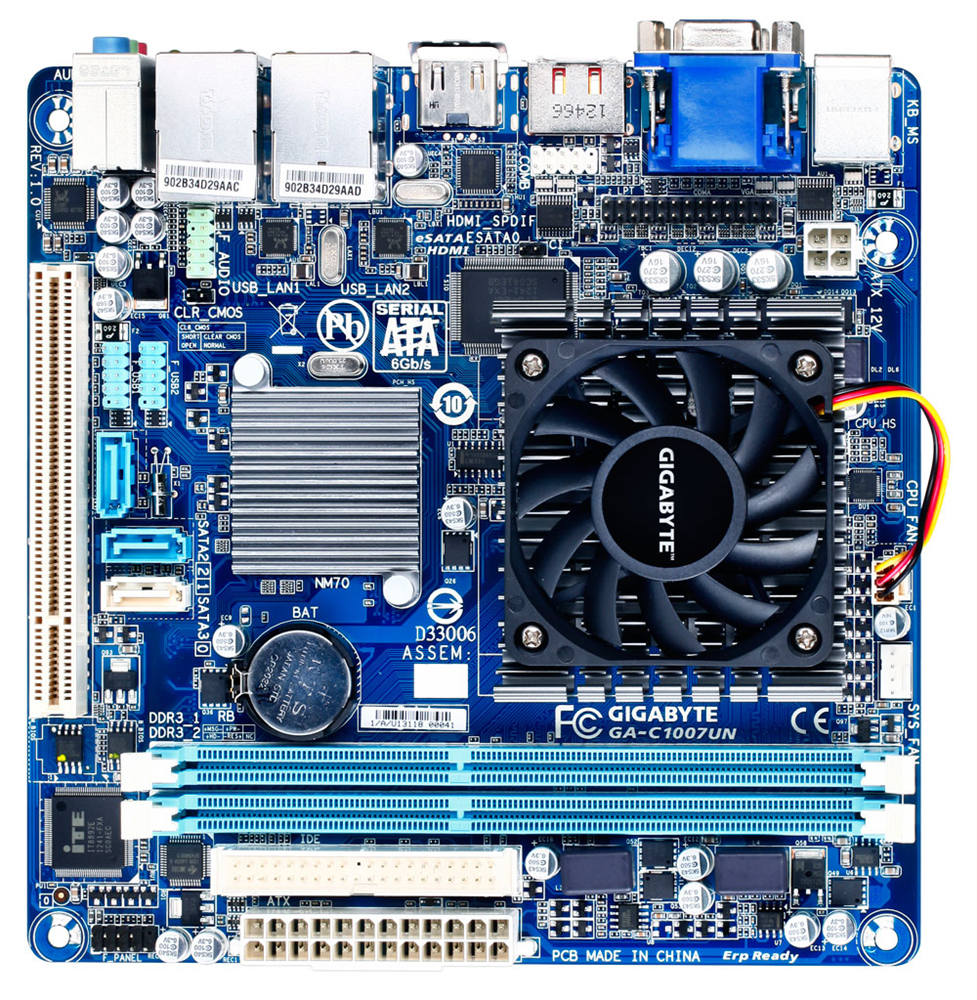

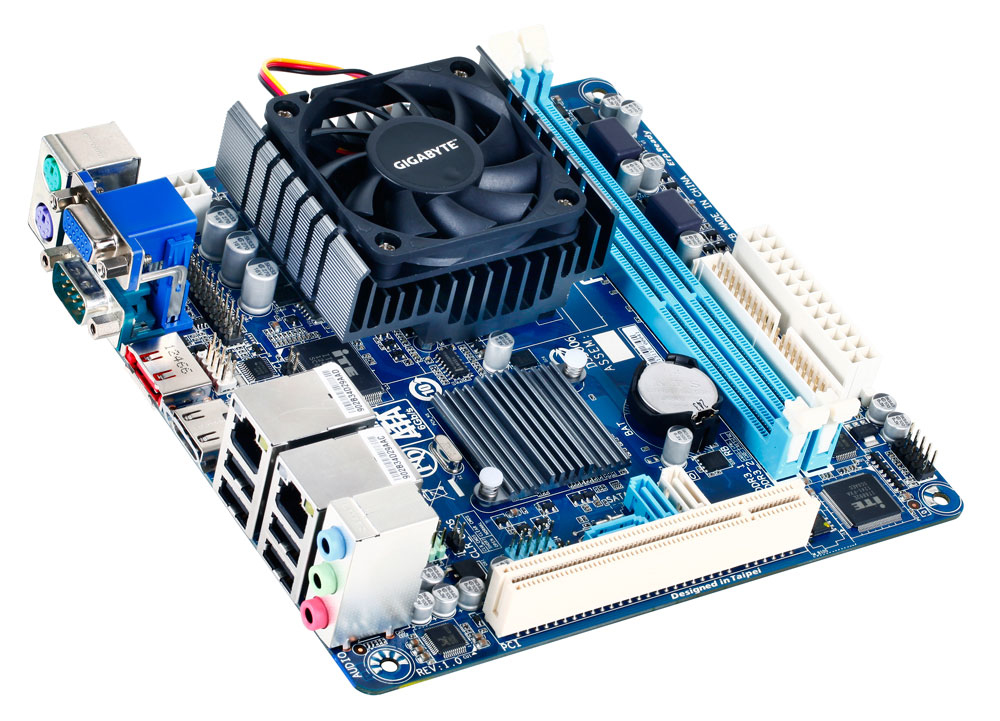

GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX
Model GA-C1007UNEAN 4719331808129
65 specifications
- Processor1007U
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesIDE, SATA II, SATA III
- Maximum graphics card memory1024 MB
- USB 2.0 connectors2
Overview
- Processor
- 1007U
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- IDE, SATA II, SATA III
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-C1007UN
- Part number
- GA-C1007UN
- EAN / UPC
- 4719331808129
- Also known as
- GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX
Specifications
65 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | NA (integrated CPU) |
| Compatible processor series | Intel® Celeron® |
| System bus rate | 5 GT/s |
| Processor model | 1007U |
| Processor thermal power (max) | 17 W |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | IDE, SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 1 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
| Serial port headers | 1 |

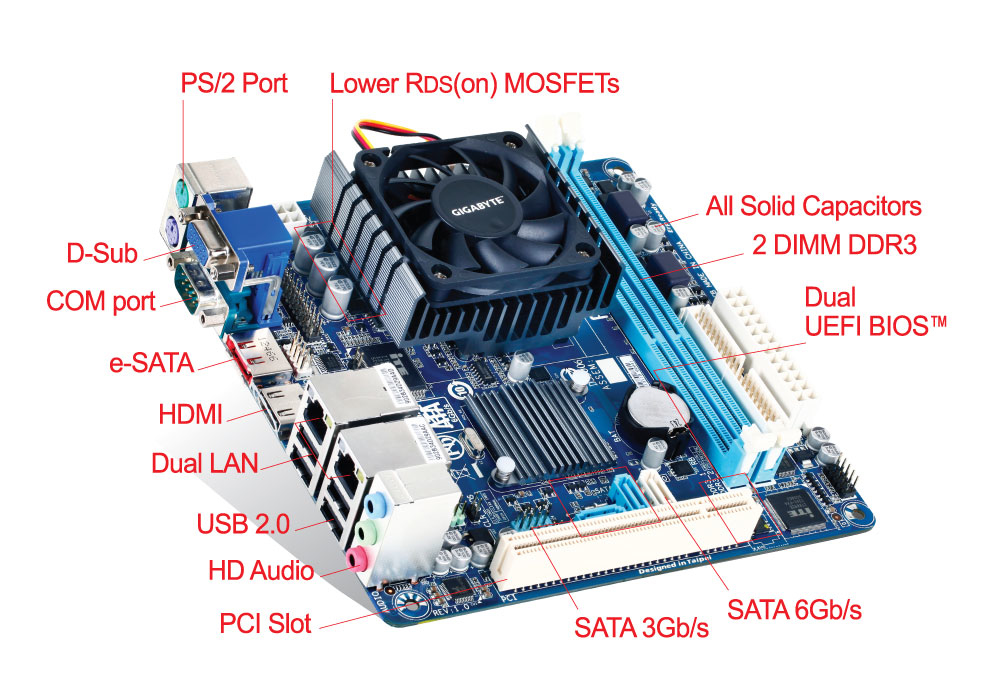

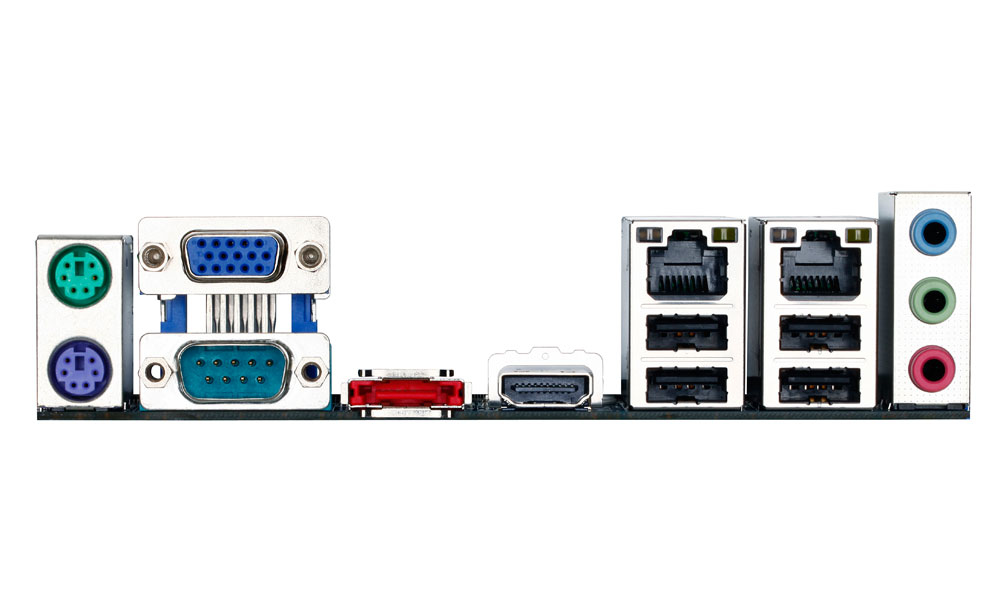

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® NM70 Express |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Power supply, Temperature |
| Cooling type | Active |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Other features
| Specification | Value |
|---|---|
| Number of processors supported | 1 |
| Parallel port via internal header | Yes |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX
No reviews yet
Be the first to tell others how GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX

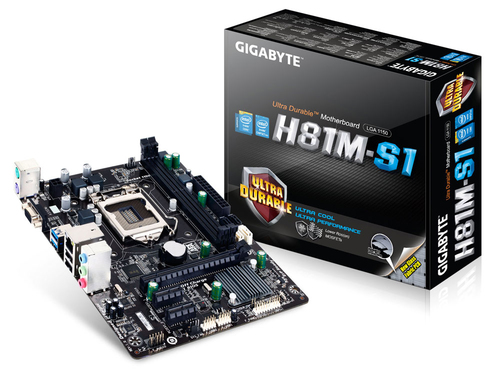

All motherboard comparisons- GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX vsGIGABYTE GA-H81M-S1 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs
- GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX vsGIGABYTE GA-F2A88X-D3H AMD A88X Socket FM2+ ATXCompare specs
- GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX vsGIGABYTE GA-H61M-DS2 HDMI (rev. 1.0)Compare specs
- GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX vsGIGABYTE GA-H81M-DS2V motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs
- GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX vsASUS H61M-D Intel® H61 LGA 1155 (Socket H2) ATXCompare specs

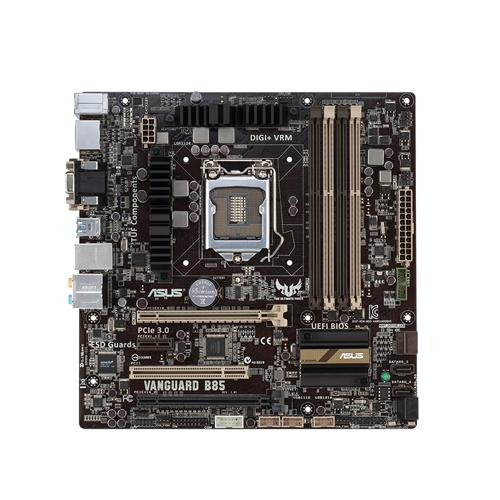

- GIGABYTE GA-C1007UN motherboard Intel® NM70 Express NA (integrated CPU) mini ITX vsASUS VANGUARD B85Compare specs
