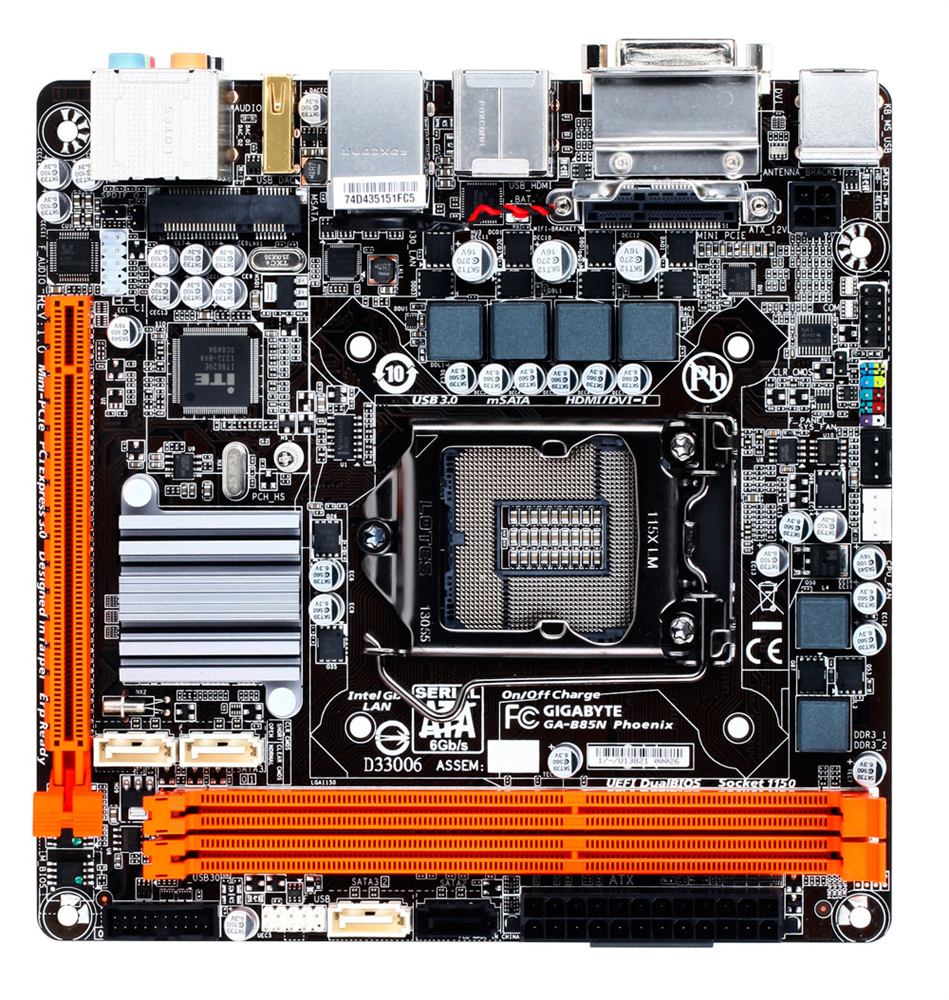

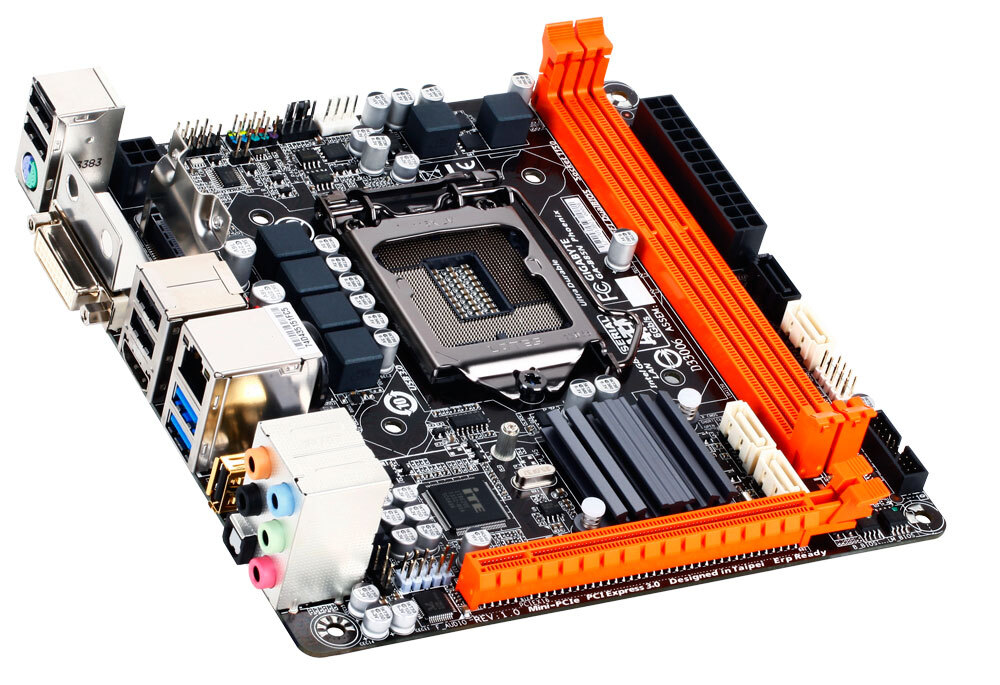

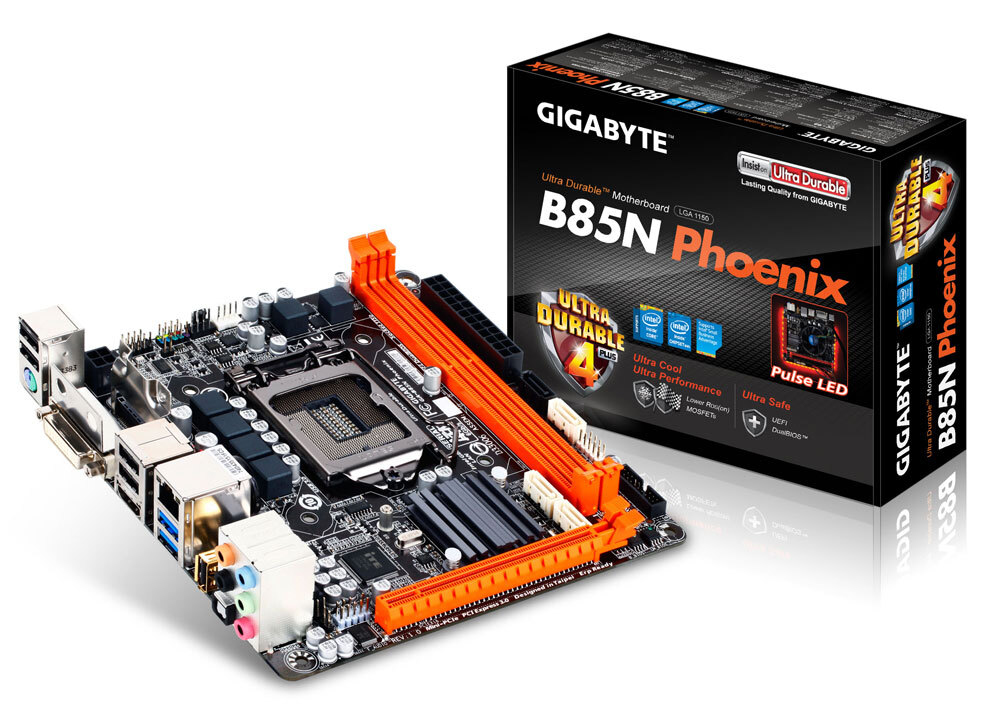

GIGABYTE GA-B85N Phoenix (rev. 1.1)
Model GA-B85N Phoenix (rev. 1.1)Part no. GA-B85N-PHOENIX
55 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III, mSATA
- USB 2.0 connectors2
- USB 2.0 ports quantity5
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III, mSATA
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 5
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-B85N Phoenix (rev. 1.1)
- Part number
- GA-B85N-PHOENIX
- Also known as
- GIGABYTE GA-B85N Phoenix (rev. 1.1) Intel® B85 LGA 1150 (Socket H3) mini ITX
Specifications
55 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III, mSATA |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 3 |
| Number of SATA II connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |

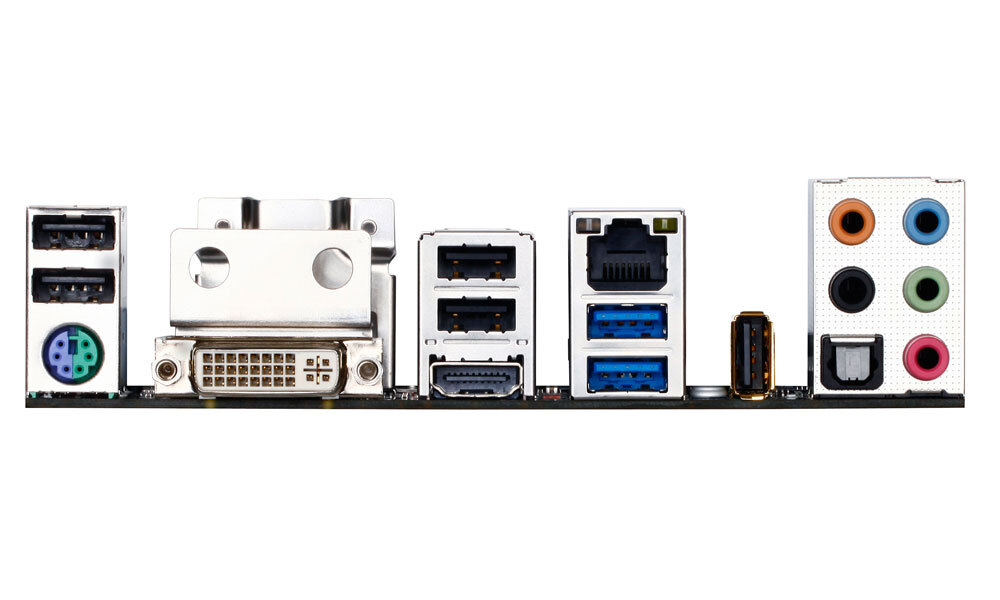

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI-I ports quantity | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Rear speaker out | Yes |
| Subwoofer out | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B85 |
| Audio chip | RealTek ALC898 |
| Audio output channels | 7.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| Mini PCI Express slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Reviews & ratings
What people say
GIGABYTE GA-B85N Phoenix (rev. 1.1)
No reviews yet
Be the first to tell others how GIGABYTE GA-B85N Phoenix (rev. 1.1) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-B85N Phoenix (rev. 1.1)
All motherboard comparisons- GIGABYTE GA-B85N Phoenix (rev. 1.1) vsGIGABYTE B550M AORUS PRO-P (rev. 1.0)Compare specs
- GIGABYTE GA-B85N Phoenix (rev. 1.1) vsGIGABYTE B550 AORUS ELITE AX V2Compare specs

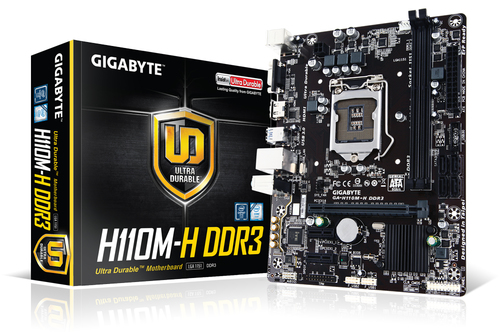

- GIGABYTE GA-B85N Phoenix (rev. 1.1) vsGIGABYTE GA-H110M-H DDR3 (rev. 1.0)Compare specs

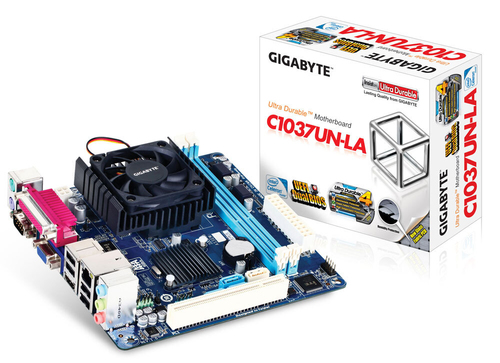

- GIGABYTE GA-B85N Phoenix (rev. 1.1) vsGIGABYTE GA-C1037UN-LA (rev. 1.0)Compare specs
