GIGABYTE GA-B85M-HD3 R4

GIGABYTE GA-B85M-HD3 R4

Model GA-B85M-HD3 R4EAN 889523000335

66 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III, SATA, SATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III, SATA, SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
GA-B85M-HD3 R4
Part number
GA-B85M-HD3 R4
EAN / UPC
889523000335, 4719331813239
Also known as
GIGABYTE GA-B85M-HD3 R4 motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX

Specifications

66 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA III, SATA, SATA II

Graphics

Parallel processing technology supportNot supported
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors2
Number of SATA connectors6
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of COM connectorsNo
Parallel connectorYes
Serial port headers2

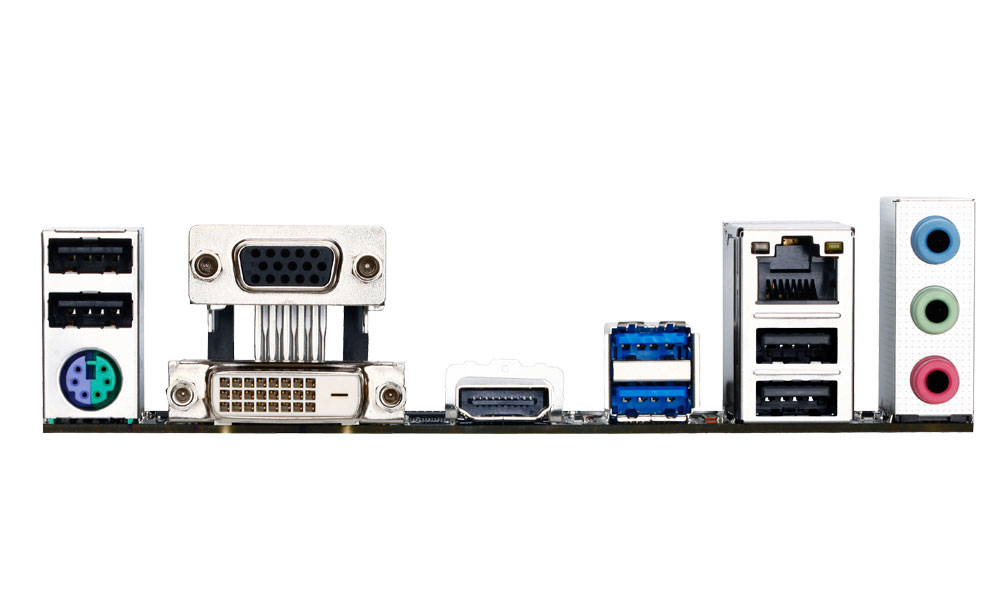

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4a
DVI-D ports quantity1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B85
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Enterprise, Windows 8, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows 7 Home Basic x64, Windows 8 Pro, Windows 7 Home Premium, Windows 8 Pro x64, Windows 7 Home Premium x64, Windows 8 x64, Windows 7 Professional, Windows 8.1, Windows

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1
PCI slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Processor with Intel Graphics Technology requiredYes

Weight & dimensions

Width244 mm
Depth174 mm

Packaging content

Bundled softwareNorton Internet Security (OEM version) Intel Rapid Start Technology Intel Smart Connect Technology

Other features

mSATA ports quantity0
EZ plug connectorNo
GAME/MIDI connectorNo
