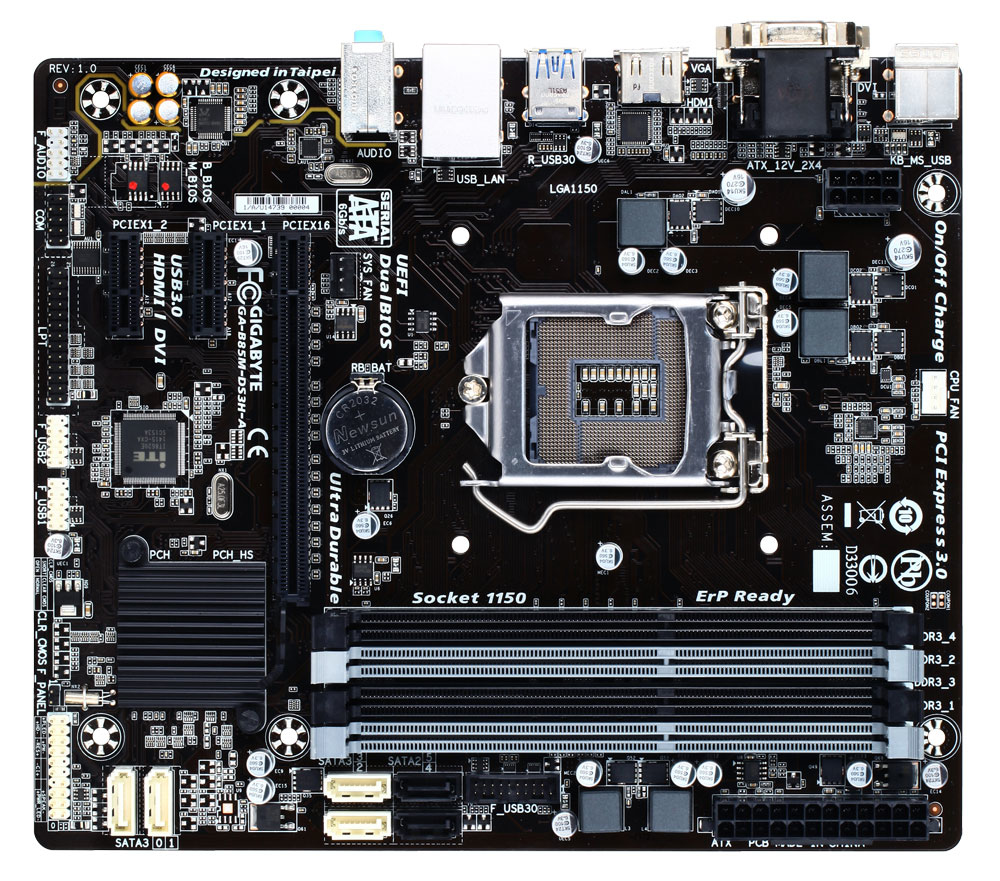

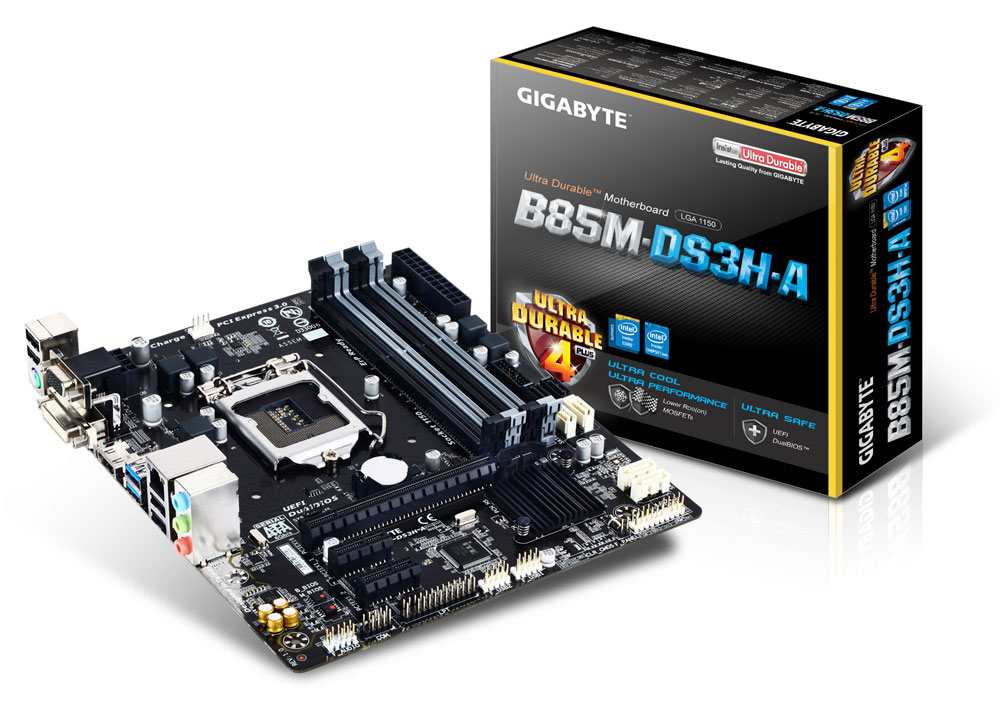

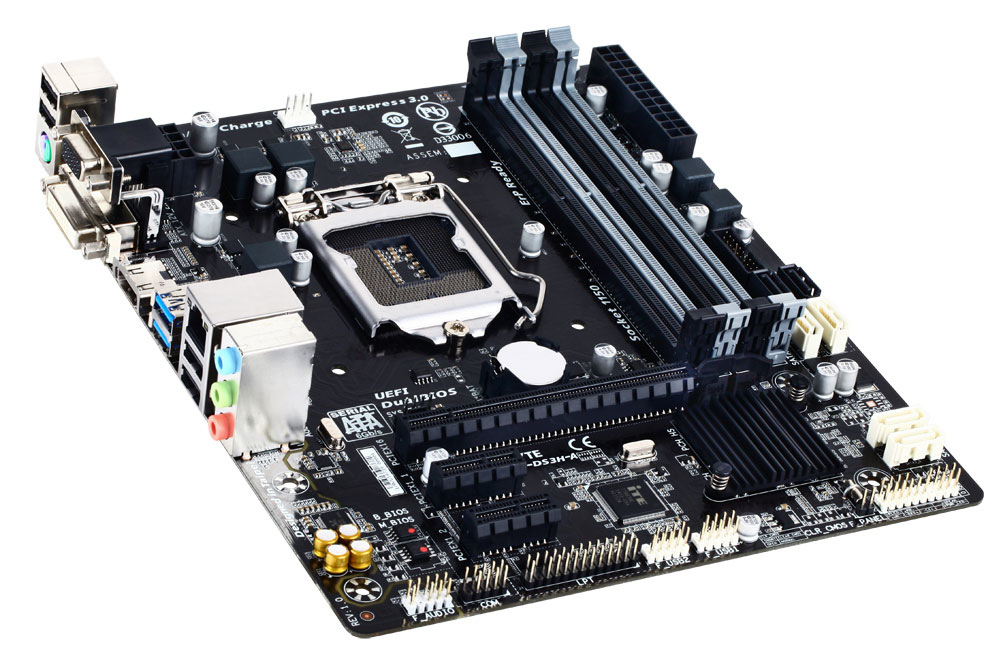

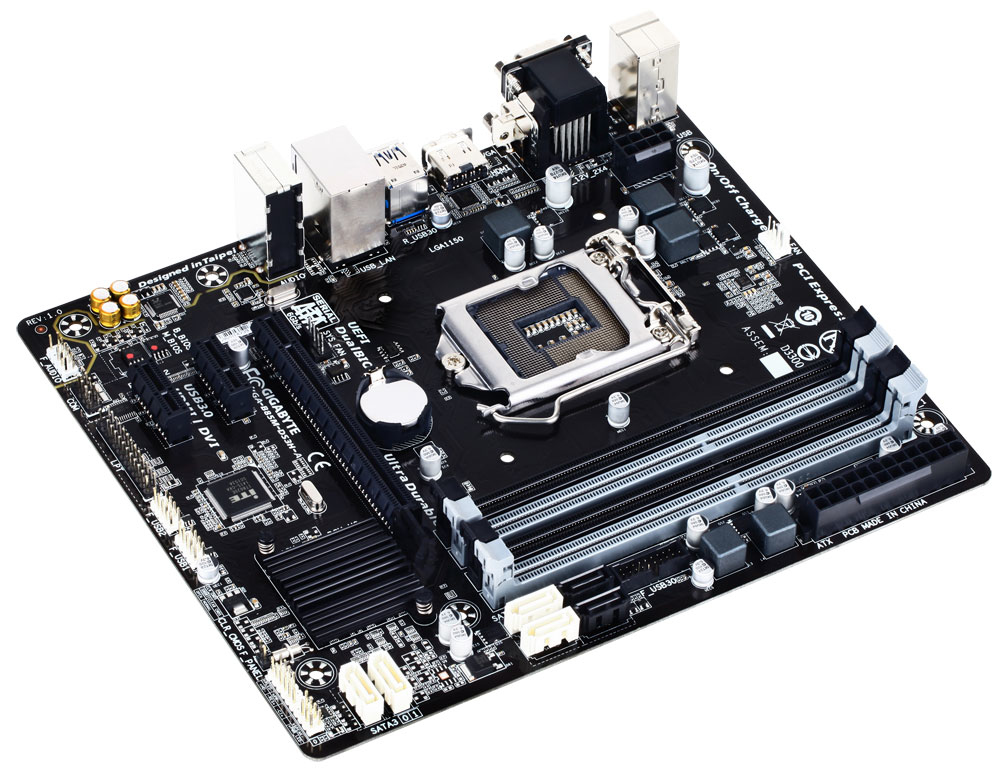

GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX
Model GA-B85M-DS3H-AEAN 889523000014
60 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Maximum resolution4096 x 2160 pixels
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Maximum resolution
- 4096 x 2160 pixels
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-B85M-DS3H-A
- Part number
- GA-B85M-DS3H-A
- EAN / UPC
- 889523000014, 4719331803193
- Also known as
- GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX
Specifications
60 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 2 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Parallel connector | Yes |
| Serial port headers | 1 |

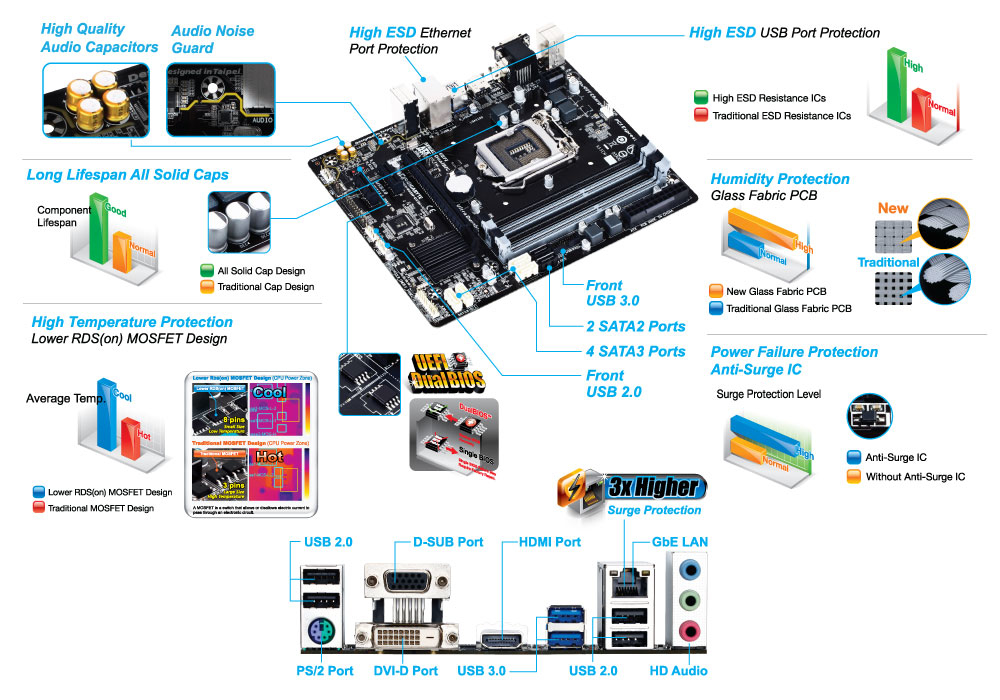

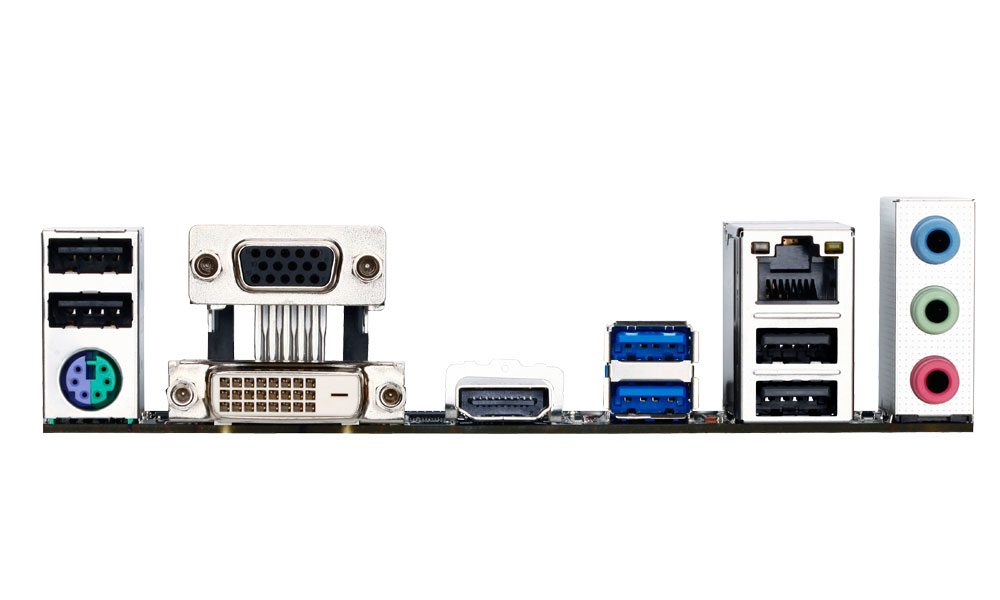

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Bluetooth | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B85 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 193 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version) Intel Rapid Start Technology Intel Smart Connect Technology |
Other features
| Specification | Value |
|---|---|
| Parallel port via internal header | Yes |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX
All motherboard comparisons- GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX vsGIGABYTE MU70-SU0 (rev. 1.0)Compare specs

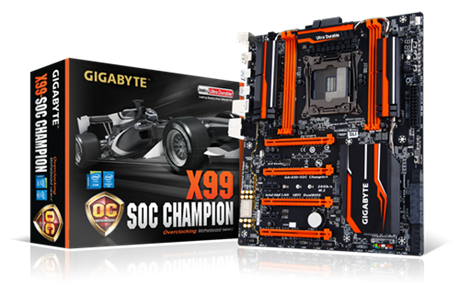

- GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-X99-SOC CHAMPIONCompare specs
- GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX vsGIGABYTE MD30-RS0 (rev. 1.0)Compare specs
- GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX vsGIGABYTE MD80-TM0 (rev. 1.0)Compare specs
- GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX vsMSI X99A GAMING 7Compare specs

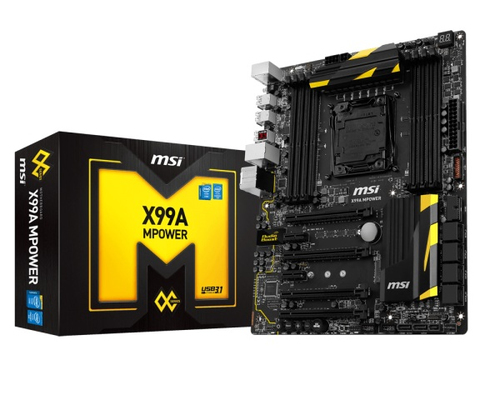

- GIGABYTE GA-B85M-DS3H-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX vsMSI X99A MPOWERCompare specs
