GIGABYTE GA-B85M-D3H-A (rev. 1.0)
Model GA-B85M-D3H-A (rev. 1.0)Part no. GA-B85M-D3H-AEAN 889523000670
51 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA
- Maximum graphics card memory1000 MB
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA
- Maximum graphics card memory
- 1000 MB
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-B85M-D3H-A (rev. 1.0)
- Part number
- GA-B85M-D3H-A
- EAN / UPC
- 889523000670, 4719331817329
- Also known as
- GIGABYTE GA-B85M-D3H-A (rev. 1.0) Intel® B85 micro ATX
Specifications
51 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1000 MB |
| Graphics card family | Intel |
| Maximum resolution | 4096 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Parallel connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

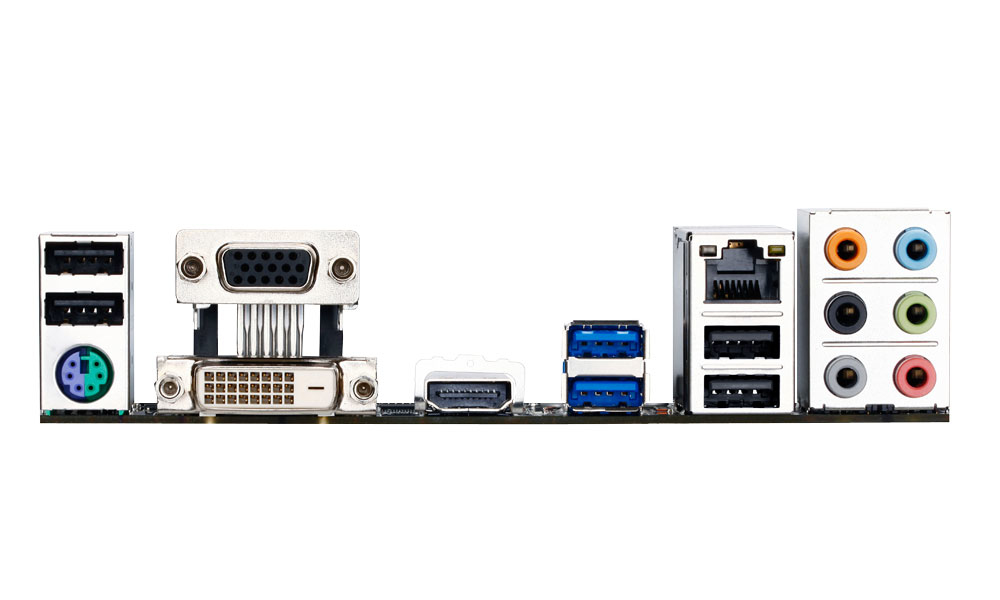

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B85 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 215 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology |
Other features
| Specification | Value |
|---|---|
| Other features | Q-Flash, Xpress Install, APP Center, @BIOS, EasyTune, EZ Setup, USB Blocker, ON/OFF Charge |
