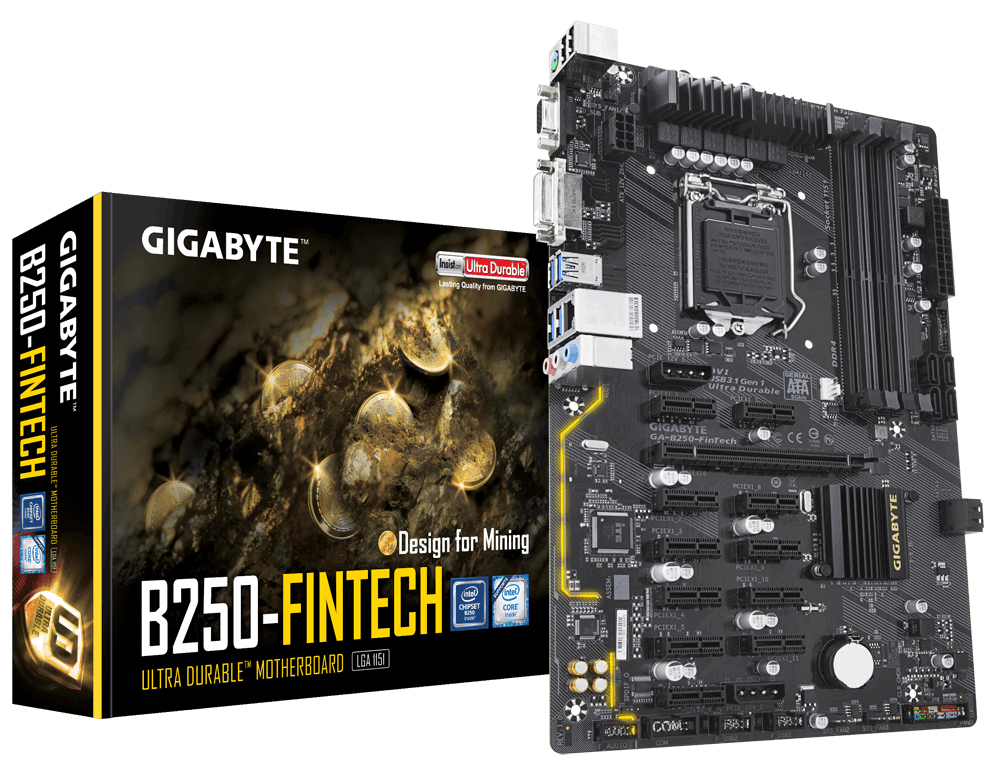

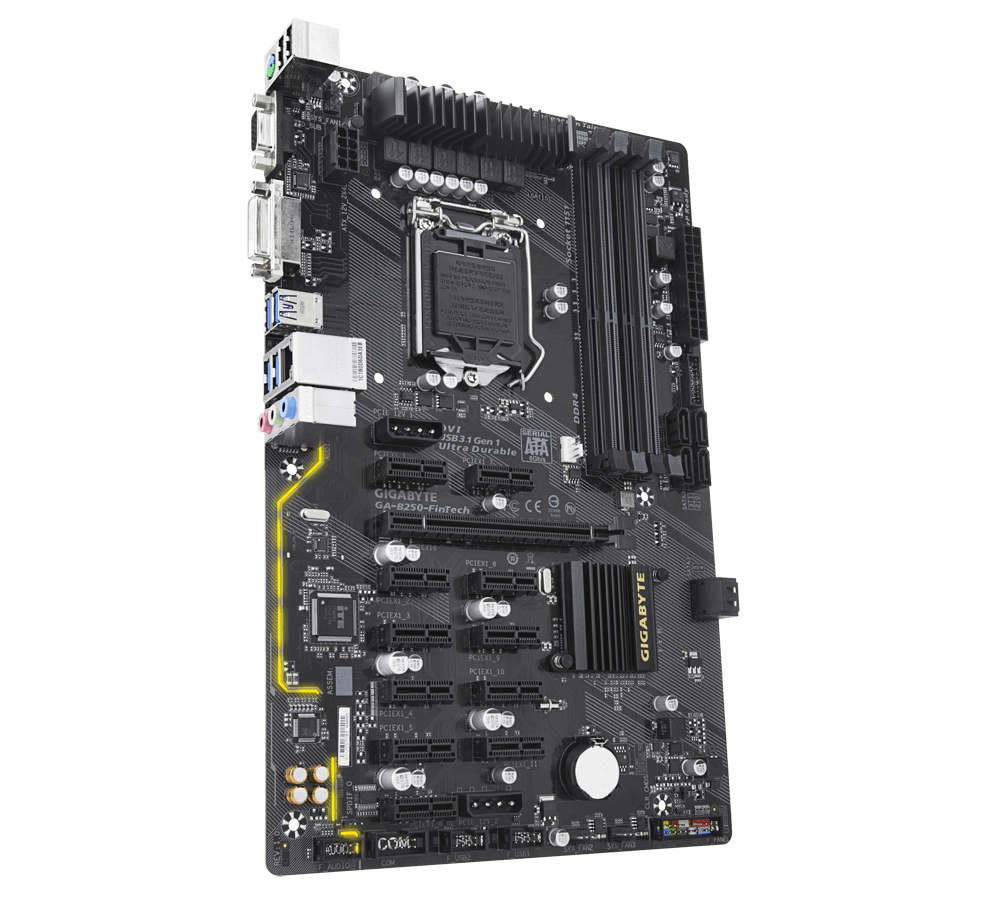

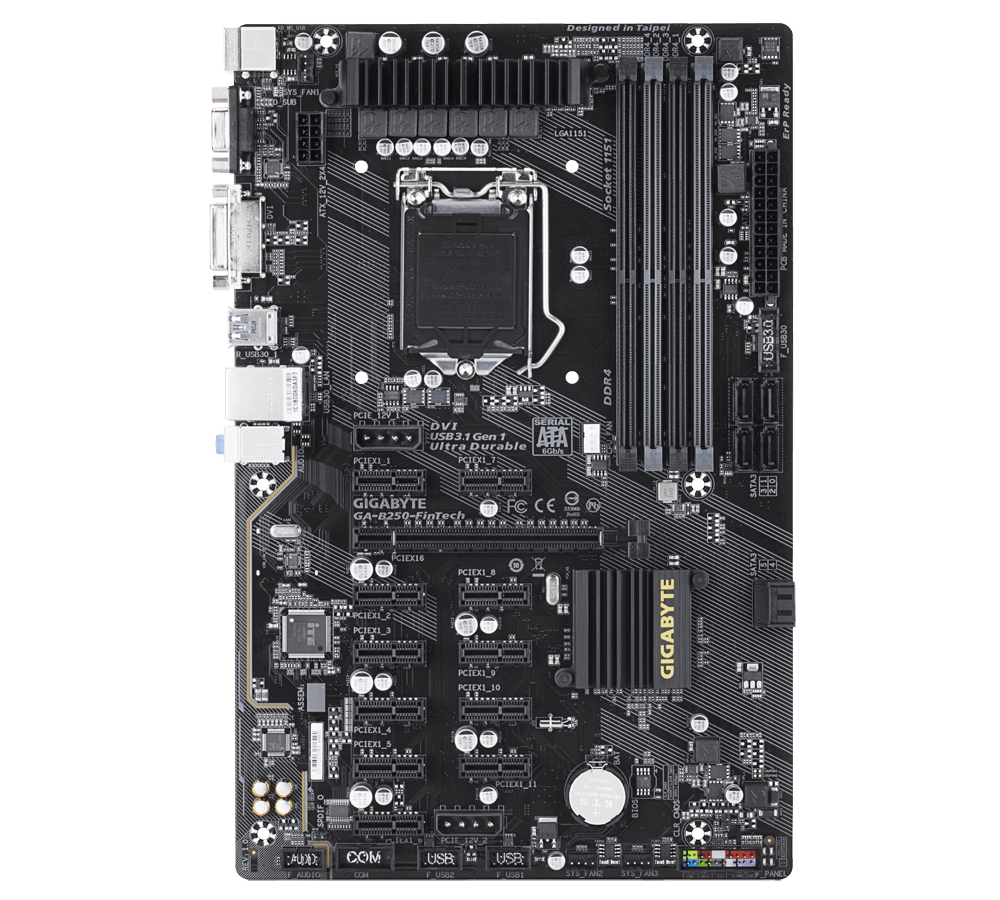

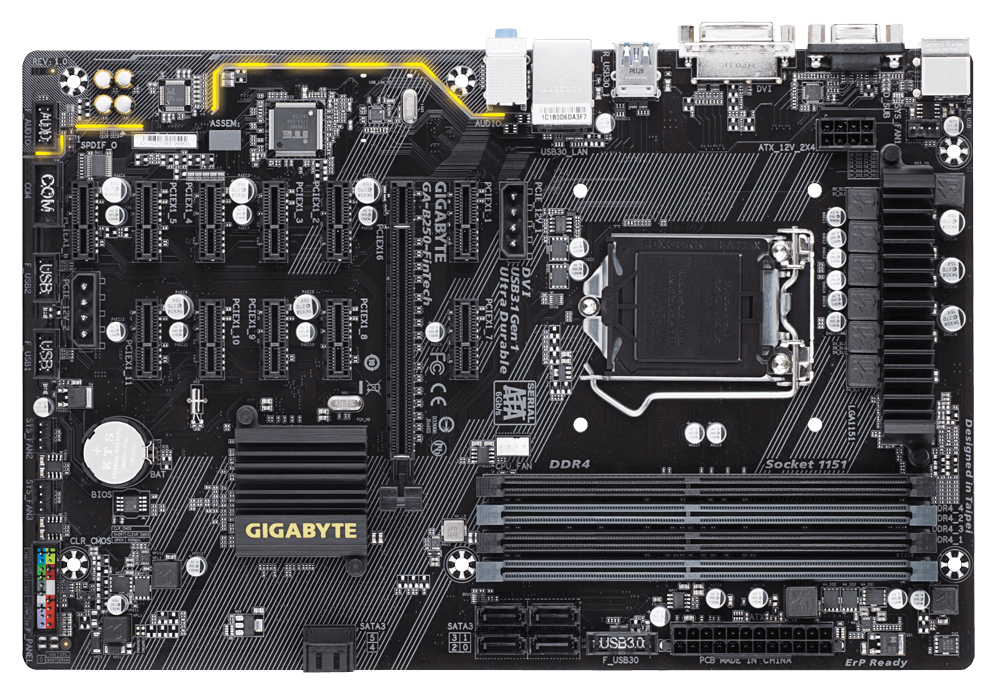

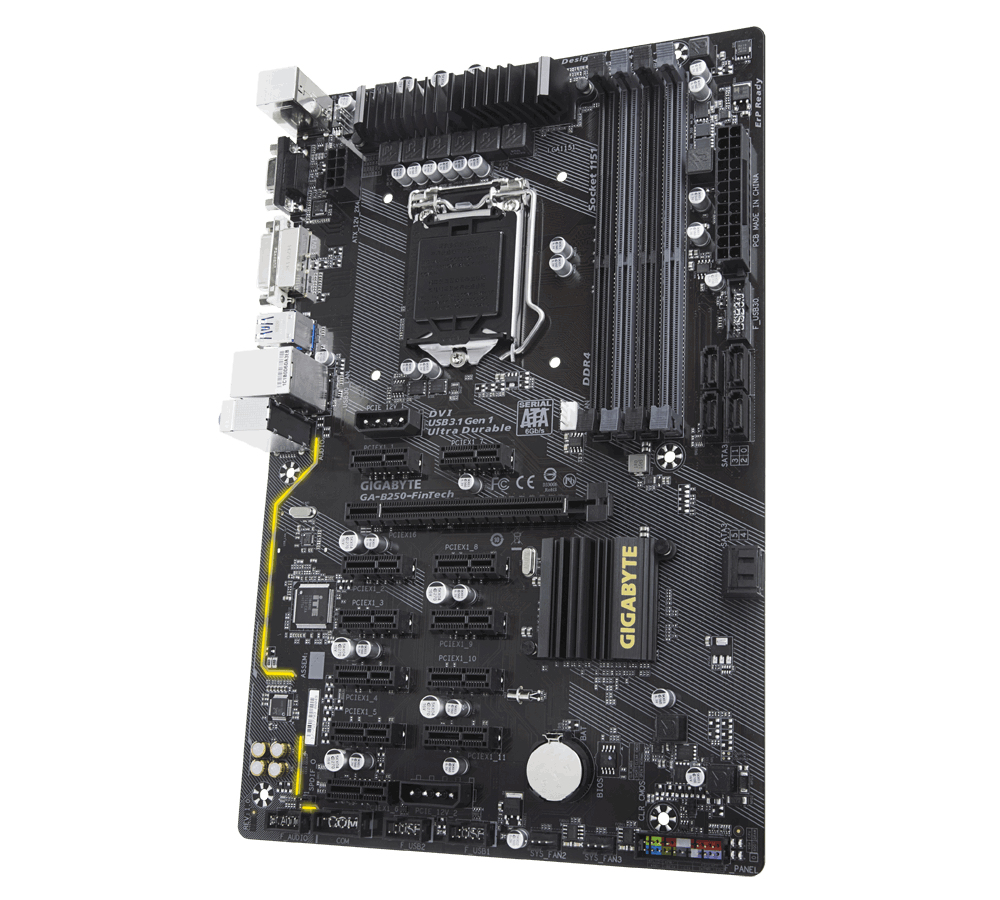

GIGABYTE GA-B250-FinTech (rev. 1.0)
Model GA-B250-FinTech (rev. 1.0)Part no. GA-B250FIT-00-GA
69 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Discrete graphics supportYes
- USB 2.0 connectors2
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Discrete graphics support
- Yes
- USB 2.0 connectors
- 2
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-B250-FinTech (rev. 1.0)
- Part number
- GA-B250FIT-00-GA
- Also known as
- GIGABYTE GA-B250-FinTech (rev. 1.0) Intel® B250 LGA 1151 (Socket H4) ATX
Specifications
69 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx |
| Supported processor sockets | LGA 1151 (Socket H4) |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Total number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |

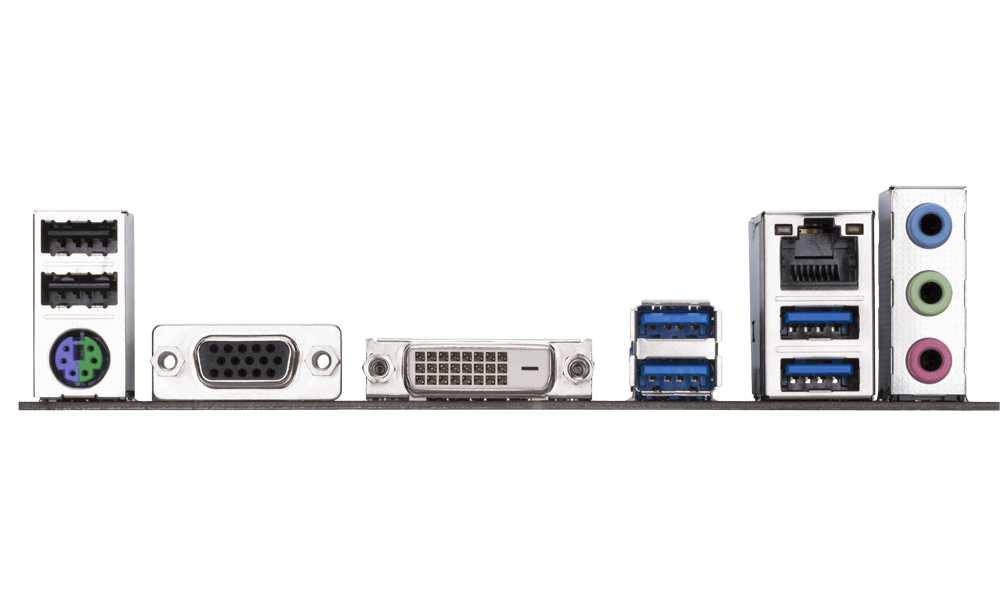

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B250 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 11 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| Plug and Play | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 200 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version) cFosSpeed |
Other features
| Specification | Value |
|---|---|
| PCI Express power connectors (6-pin) | 2 |
What people say
Reviews & ratings
GIGABYTE GA-B250-FinTech (rev. 1.0)
No reviews yet
Be the first to tell others how GIGABYTE GA-B250-FinTech (rev. 1.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-B250-FinTech (rev. 1.0)
All motherboard comparisons- GIGABYTE GA-B250-FinTech (rev. 1.0) vsGIGABYTE X299 MASTER (rev 1.0)Compare specs

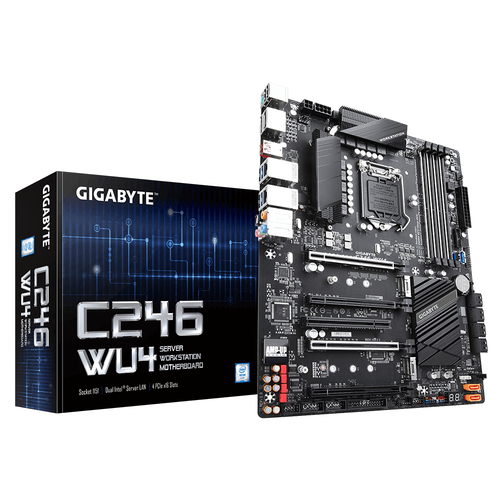

- GIGABYTE GA-B250-FinTech (rev. 1.0) vsGIGABYTE C246-WU4 (rev. 1.0)Compare specs
- GIGABYTE GA-B250-FinTech (rev. 1.0) vsGIGABYTE J4105N H (rev. 1.0)Compare specs
- GIGABYTE GA-B250-FinTech (rev. 1.0) vsGIGABYTE B360 M AORUS PROCompare specs

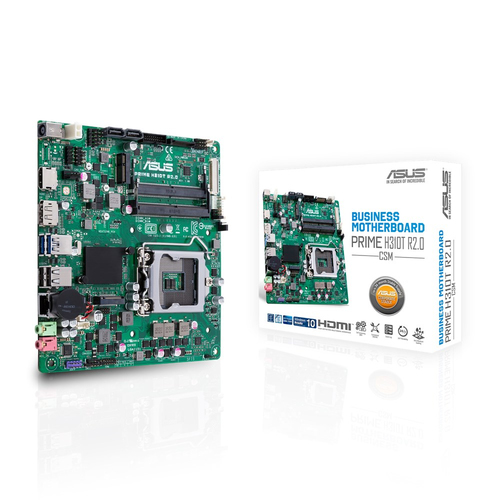

- GIGABYTE GA-B250-FinTech (rev. 1.0) vsASUS Prime H310T R2.0/CSMCompare specs
- GIGABYTE GA-B250-FinTech (rev. 1.0) vsASUS P11C-I LGA 1151 (Socket H4) mini ITXCompare specs

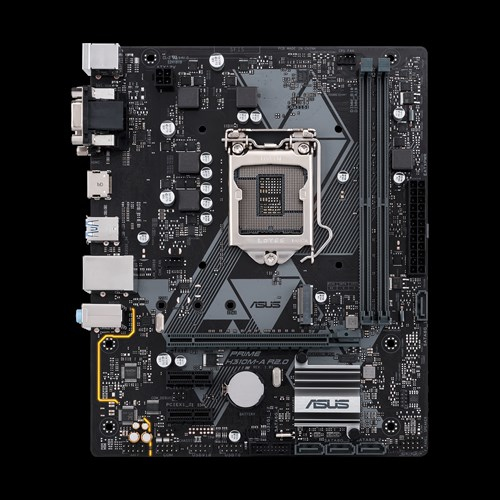

- GIGABYTE GA-B250-FinTech (rev. 1.0) vsASUS PRIME H310M-A R2.0/CSMCompare specs

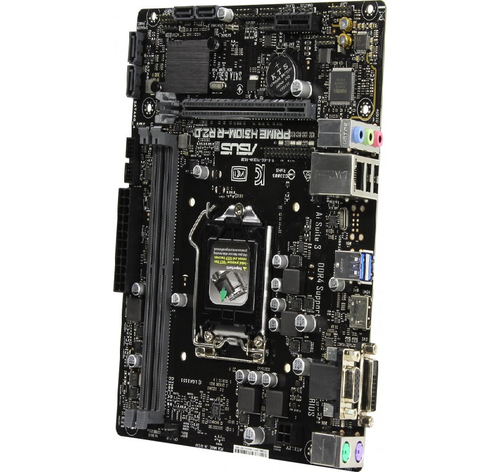

- GIGABYTE GA-B250-FinTech (rev. 1.0) vsASUS PRIME H310M-R R2.0Compare specs
