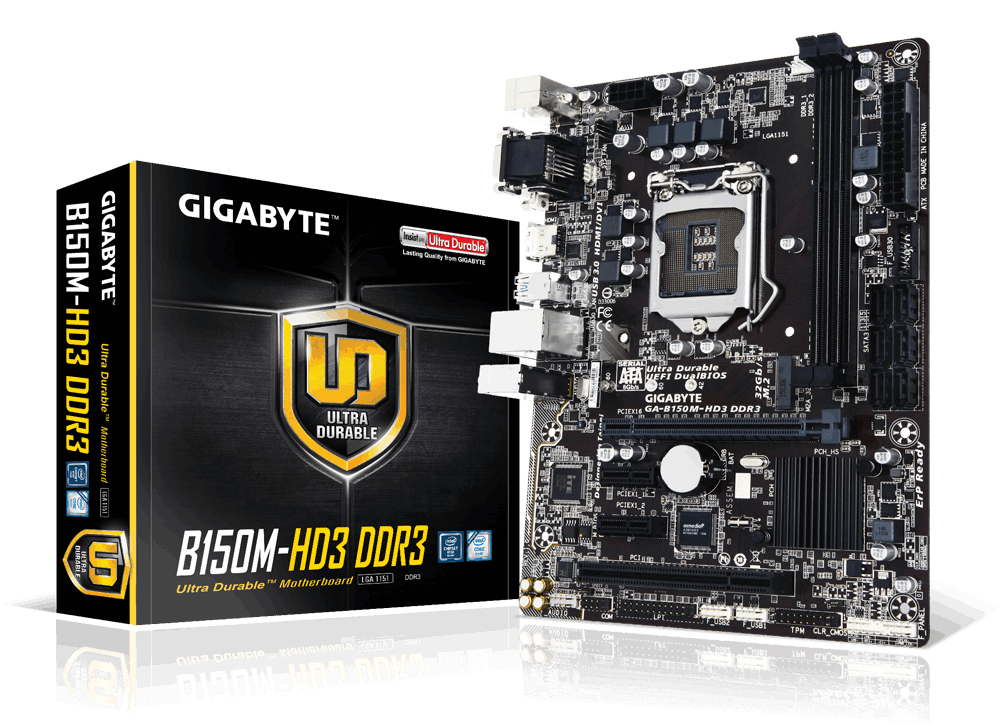

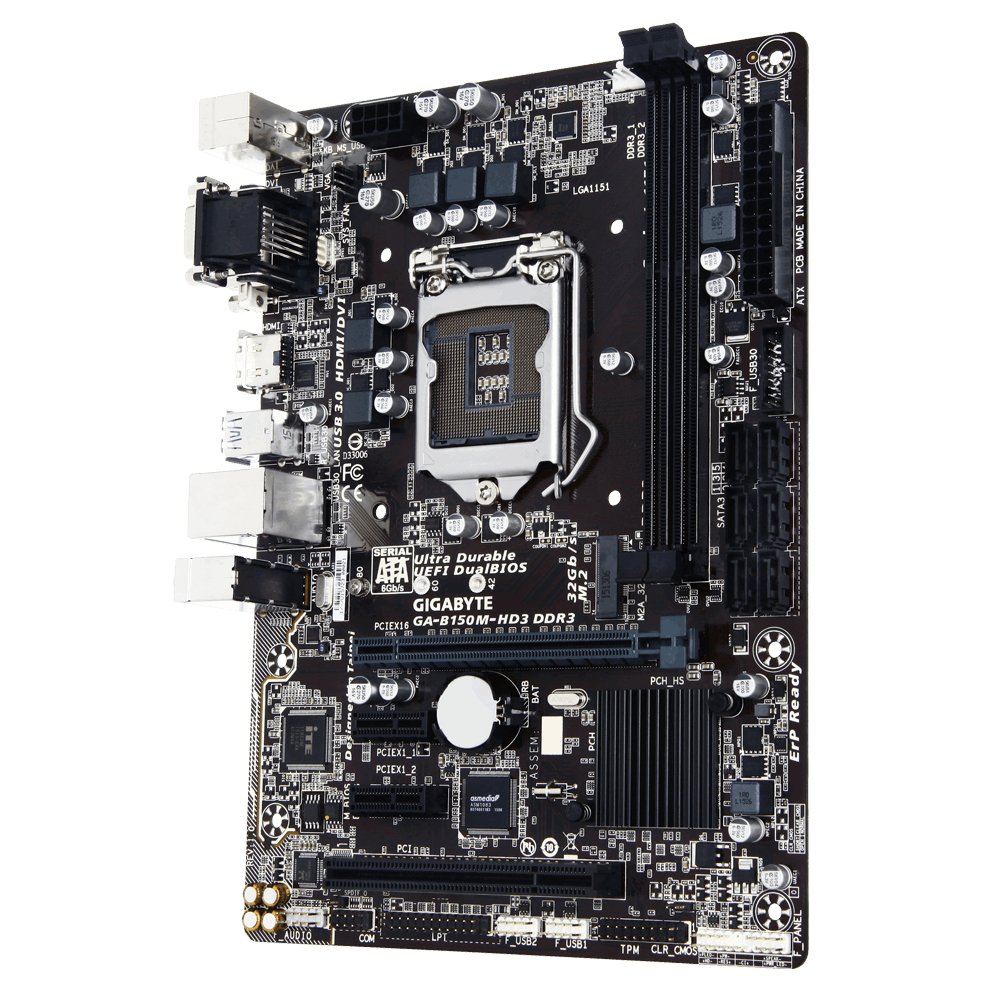

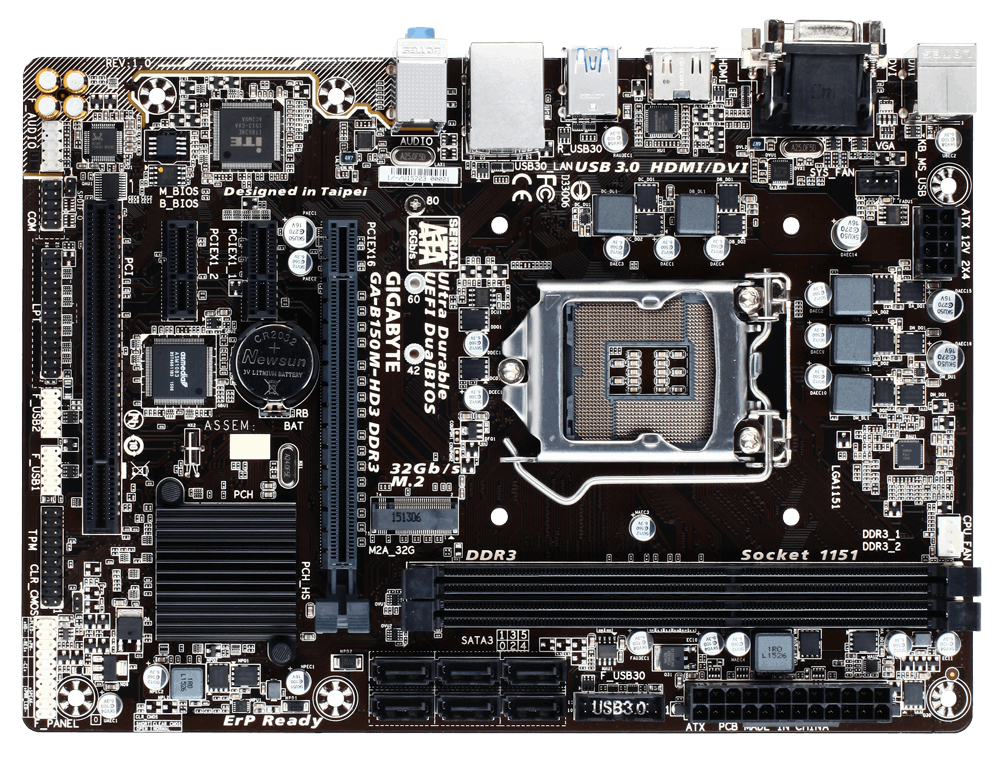

GIGABYTE GA-B150M-HD3 DDR3
Model GA-B150M-HD3 DDR3EAN 889523002230
66 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors2
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM, DDR3L-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-B150M-HD3 DDR3
- Part number
- GA-B150M-HD3 DDR3
- EAN / UPC
- 889523002230, 4719331835347, 8809321843325
- Also known as
- GIGABYTE GA-B150M-HD3 DDR3 motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX
Specifications
66 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| System bus rate | 8 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1333,1600,1866 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| CPU fan connector | Yes |
| Parallel connector | Yes |
| Serial port headers | 1 |

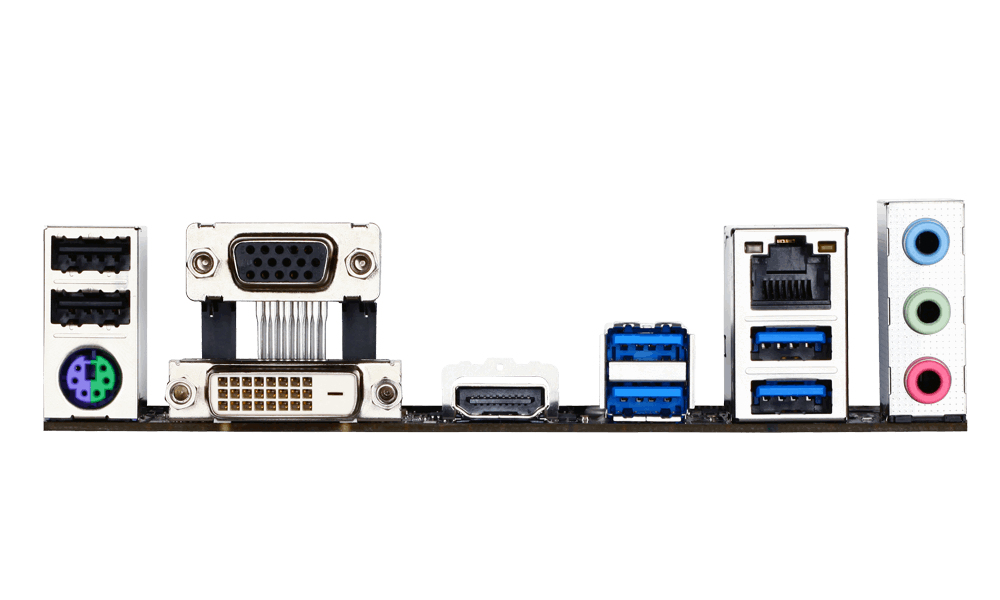

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B150 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
Processor special features
| Specification | Value |
|---|---|
| Intel ME Firmware Version | 11 |
| Intel Rapid Storage Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Response Technology | No |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 174 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
