GIGABYTE GA-B150M-D3H GSM

GIGABYTE GA-B150M-D3H GSM

Model GA-B150M-D3H GSMEAN 889523001691

66 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
GIGABYTE
Category
Motherboard
Model
GA-B150M-D3H GSM
Part number
GA-B150M-D3H GSM
EAN / UPC
889523001691
Also known as
GIGABYTE GA-B150M-D3H GSM motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX

Specifications

66 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133 MHz

Graphics

Parallel processing technology support2-Way CrossFireX

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors7
Number of SATA Express connectors1
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
Parallel connectorYes
Serial port headers1
TPM connectorYes
Thunderbolt headers1

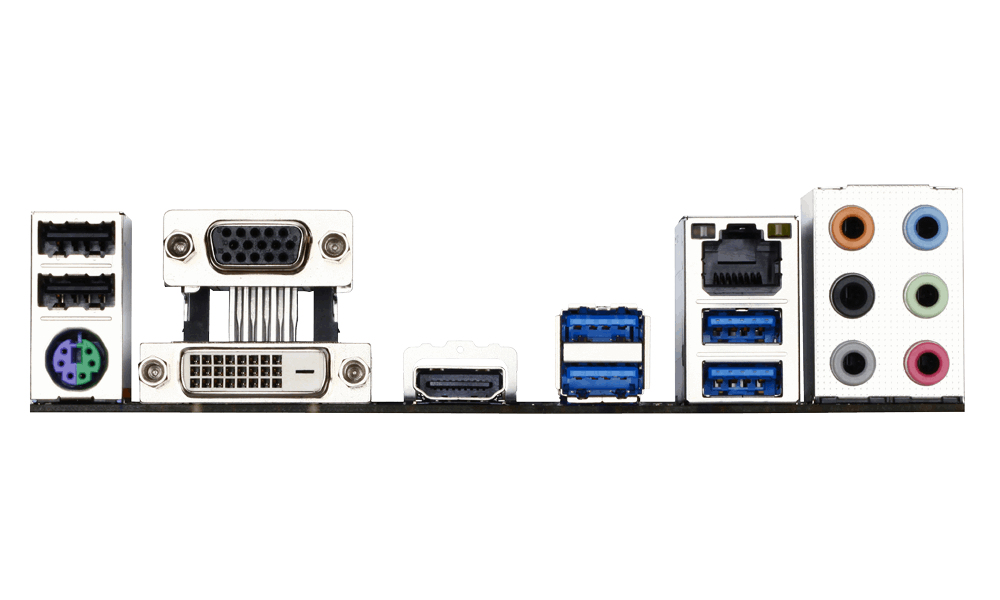

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B150
Audio chipRealtek ALC892
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature, Voltage
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64,

Expansion slots

PCI Express x16 (Gen 3.x) slots2
PCI slots2
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size32 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth225 mm

Packaging content

ManualYes
Bundled softwareNorton Internet Security (OEM version) Intel Small Business Advantage cFosSpeed

Other features

Quick installation guideYes
Utilities includedYes
