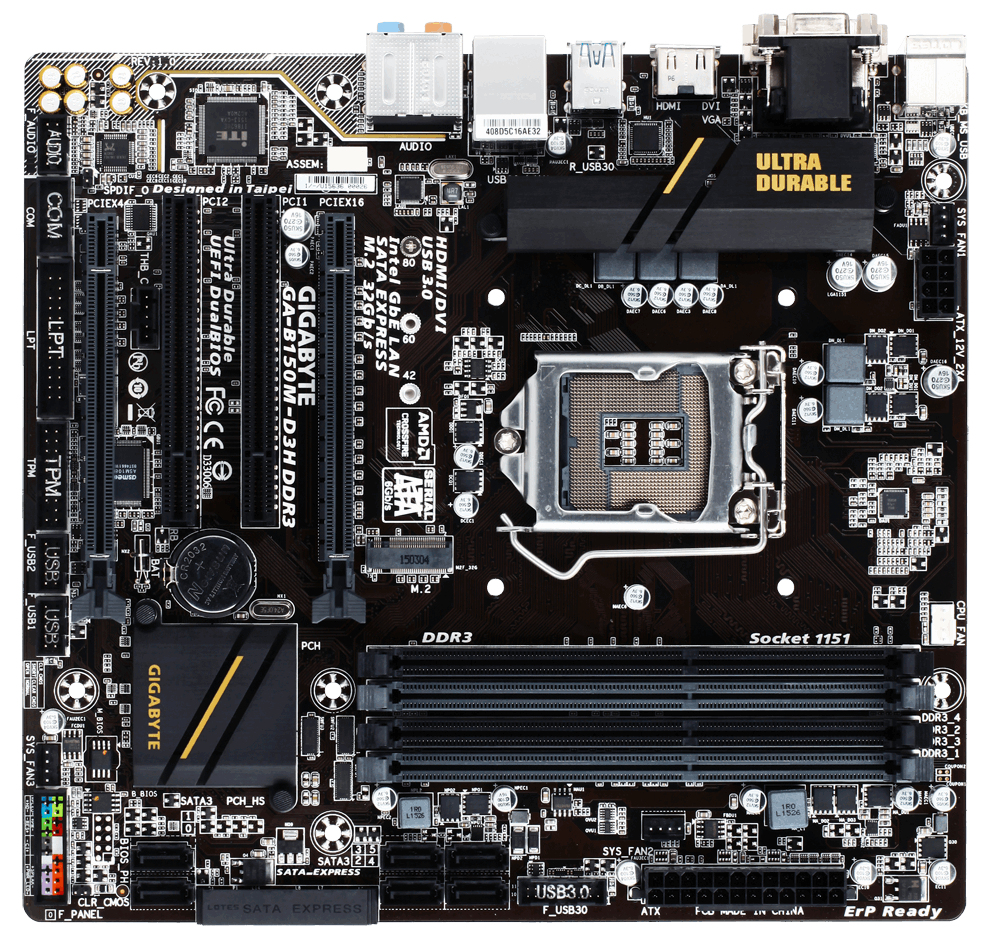

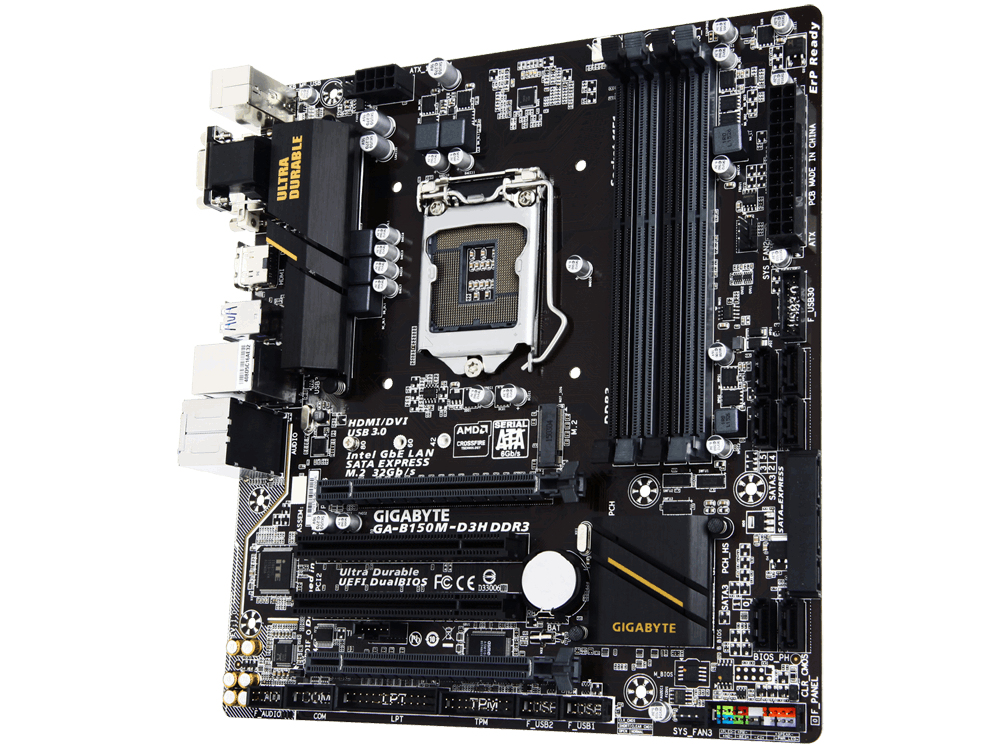

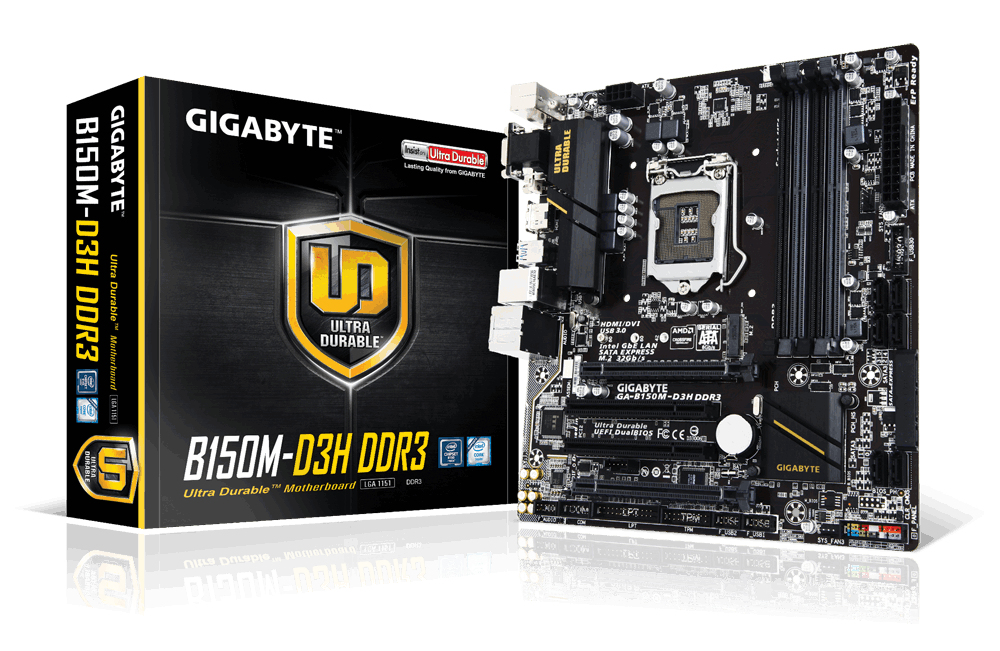

GIGABYTE GA-B150M-D3H DDR3
Model GA-B150M-D3H DDR3EAN 889523001677
69 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
- Supported storage drive interfacesM.2, SATA III
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM, DDR3L-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-B150M-D3H DDR3
- Part numbers
- GA-B150M-D3H DDR3, GA-B150M-D3H DDR3-R1
- EAN / UPC
- 889523001677, 4719331830250
- Also known as
- GIGABYTE GA-B150M-D3H DDR3 motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX
Specifications
69 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1333,1600,1866 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA connectors | 7 |
| Number of SATA Express connectors | 1 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Serial port headers | 1 |
| TPM connector | Yes |
| Thunderbolt headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B150 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Processor with Intel Graphics Technology required | Yes |
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 225 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version) Intel Small Business Advantage cFosSpeed |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 1 |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
GIGABYTE GA-B150M-D3H DDR3
No reviews yet
Be the first to tell others how GIGABYTE GA-B150M-D3H DDR3 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-B150M-D3H DDR3
All motherboard comparisons- GIGABYTE GA-B150M-D3H DDR3 vsGIGABYTE H81 CHIPSET MICRO ATXCompare specs
- GIGABYTE GA-B150M-D3H DDR3 vsGIGABYTE GA-Z170X-UD5 THCompare specs

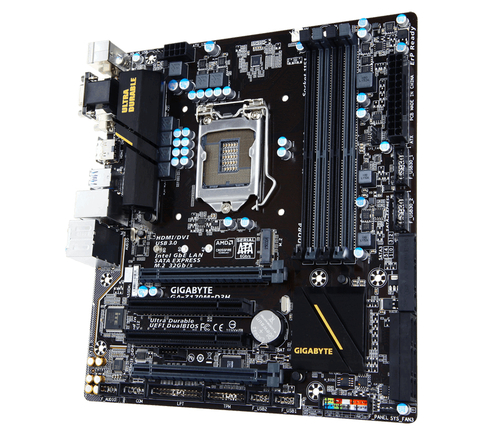

- GIGABYTE GA-B150M-D3H DDR3 vsGIGABYTE GA-H170M-D3H motherboard Intel® H170 LGA 1151 (Socket H4) micro ATXCompare specs

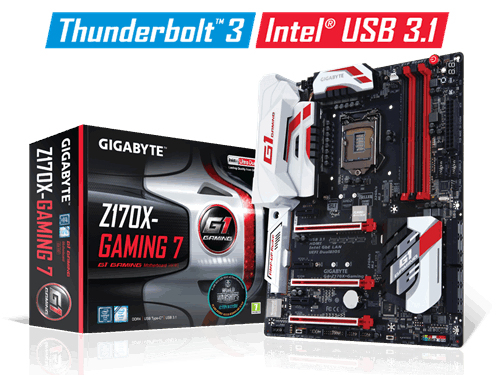

- GIGABYTE GA-B150M-D3H DDR3 vsGIGABYTE GA-Z170X-Gaming 7-EUCompare specs

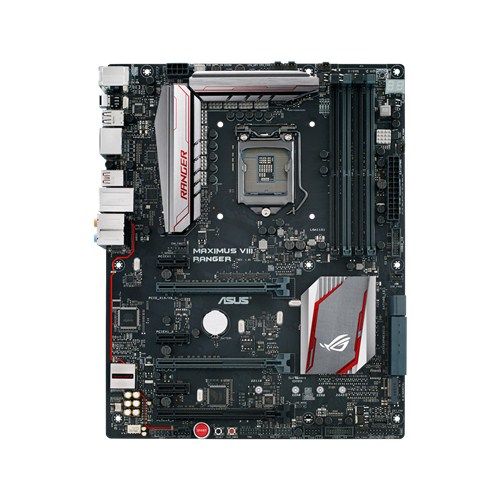

- GIGABYTE GA-B150M-D3H DDR3 vsASUS MAXIMUS VIII RANGERCompare specs

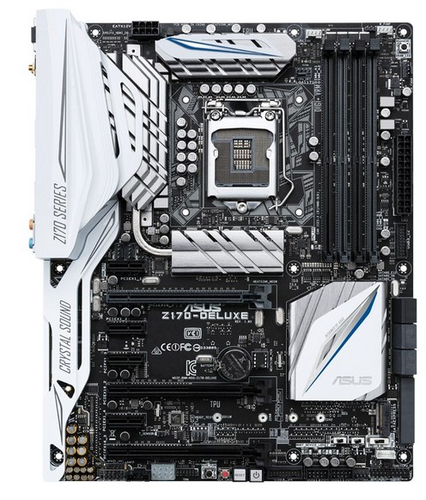

- GIGABYTE GA-B150M-D3H DDR3 vsASUS Z170-DELUXE Intel® Z170 LGA 1151 (Socket H4) ATXCompare specs

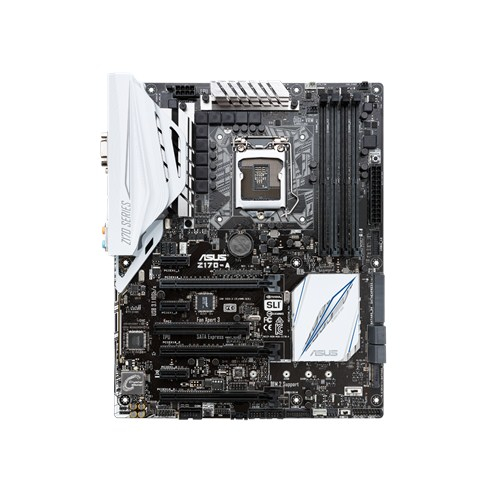

- GIGABYTE GA-B150M-D3H DDR3 vsASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATXCompare specs

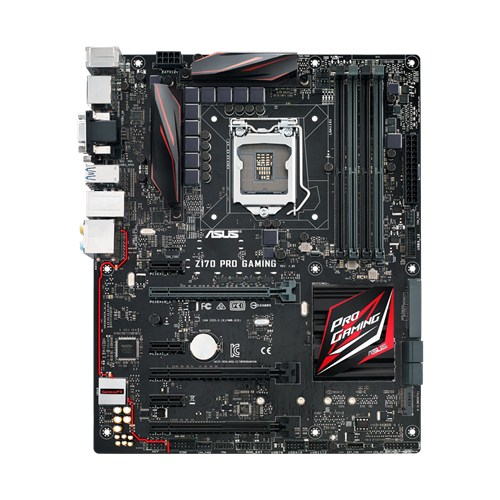

- GIGABYTE GA-B150M-D3H DDR3 vsASUS Z170 PRO GAMINGCompare specs
