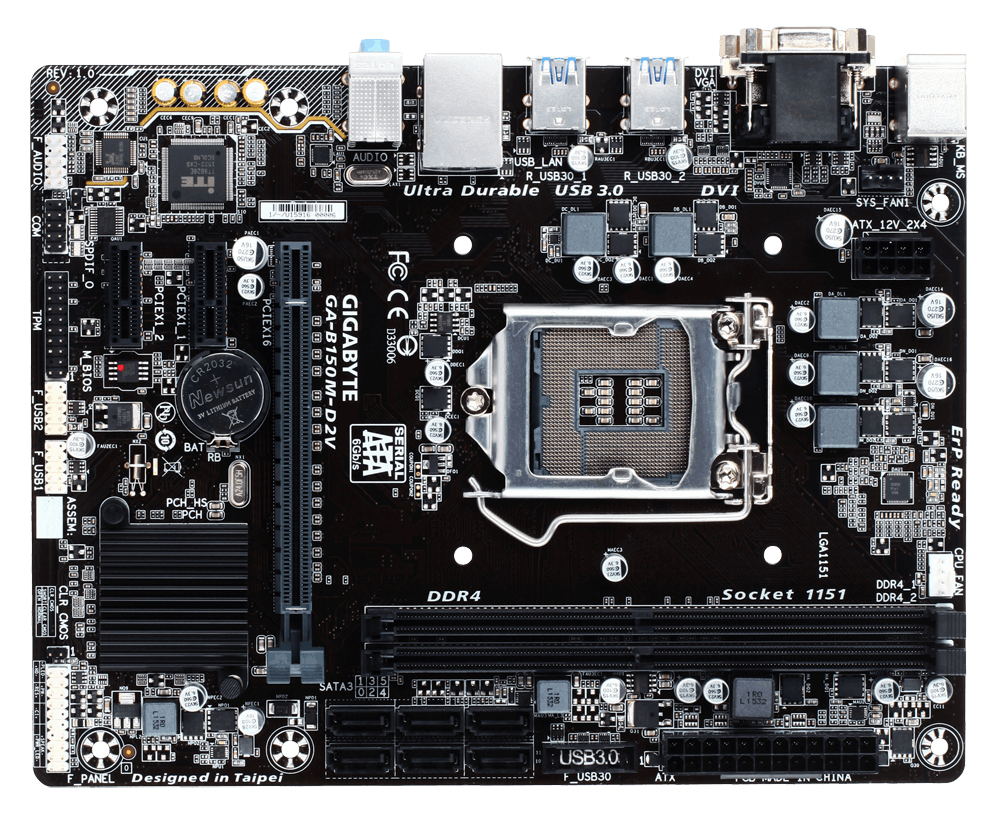

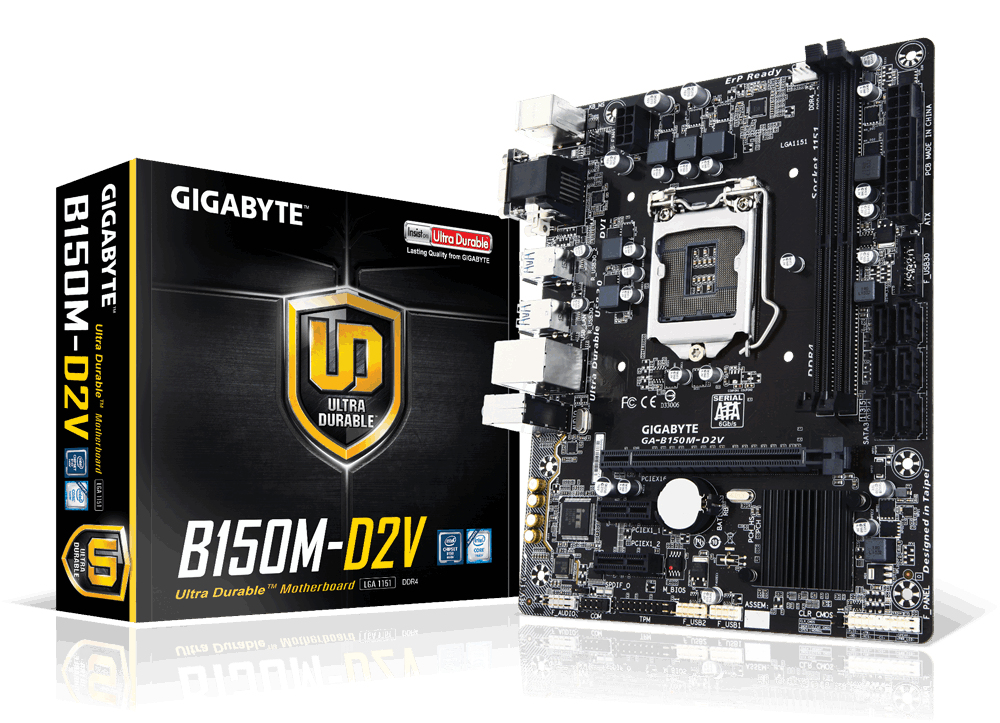

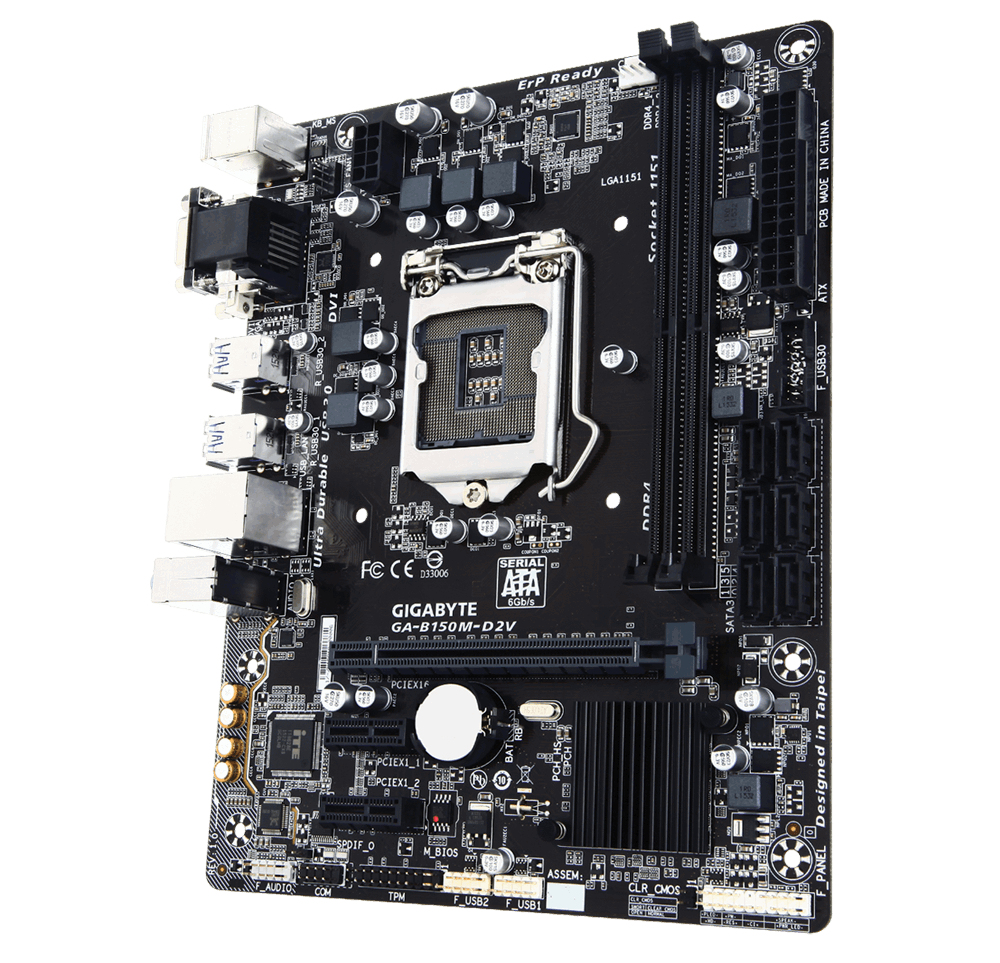

GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX
Model GA-B150M-D2VEAN 889523003671
61 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Graphics cardHD Graphics
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Graphics card
- HD Graphics
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-B150M-D2V
- Part number
- GA-B150M-D2V
- EAN / UPC
- 889523003671, 4719331847203
- Also known as
- GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX
Specifications
61 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| Graphics card | HD Graphics |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

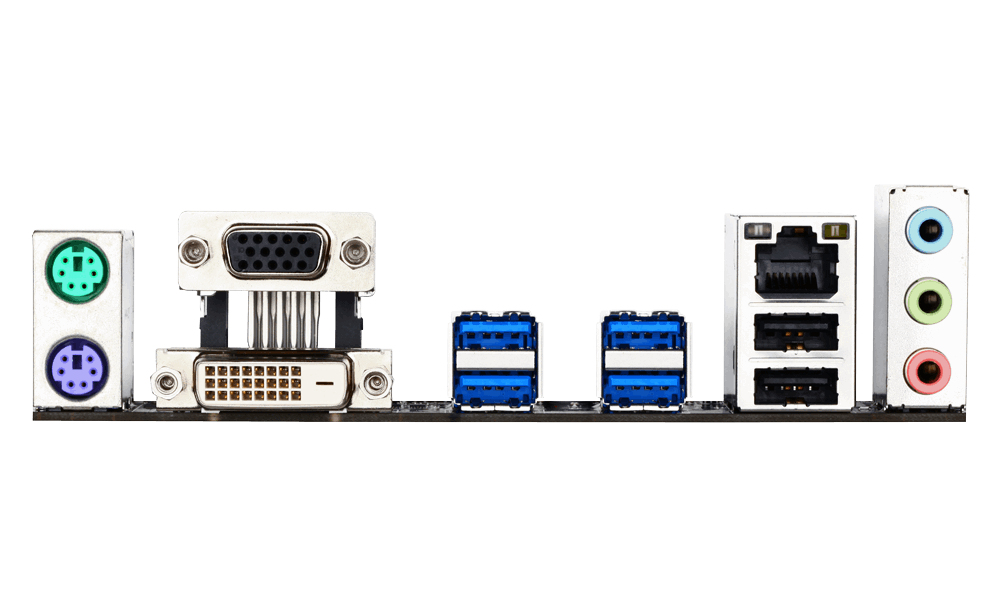

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B150 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 174 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version) Intel Smart Response Technology cFosSpeed |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | Yes |
What people say
Reviews & ratings
GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX

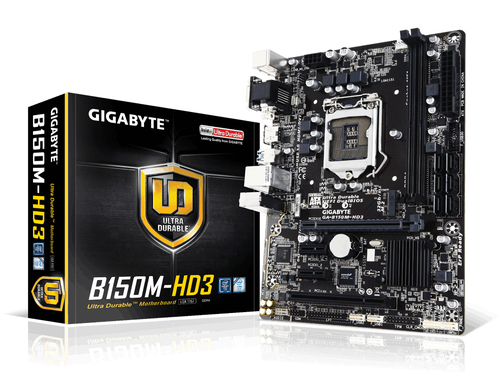

All motherboard comparisons- GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-B150M-HD3 motherboard Intel® B150 LGA 1151 (Socket H4) micro ATXCompare specs
- GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-B150M-DS3H motherboard Intel® B150 LGA 1151 (Socket H4) micro ATXCompare specs
- GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-990XA-UD3 R5Compare specs
- GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX vsGIGABYTE MB10-DS0 (rev. 1.0)Compare specs
- GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX vsMSI H110M PRO-DCompare specs
- GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX vsMSI H110M ECOCompare specs

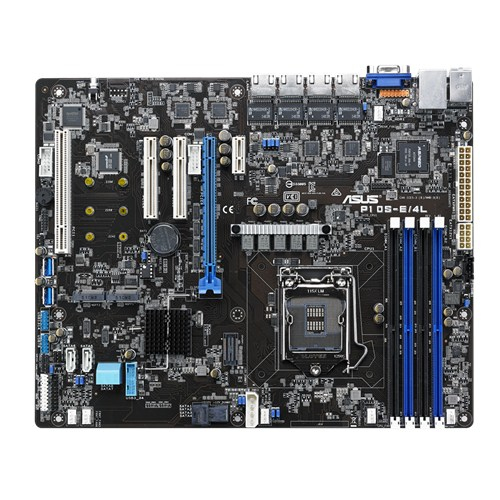

- GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX vsASUS P10S-E/4L Intel® C236 LGA 1151 (Socket H4) ATXCompare specs

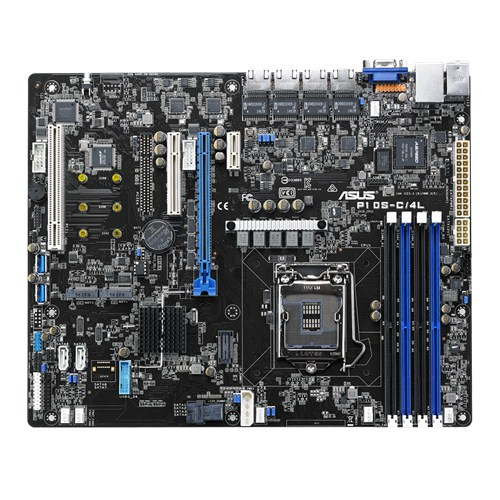

- GIGABYTE GA-B150M-D2V motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX vsASUS P10S-C/4L Intel® C232 LGA 1151 (Socket H4) ATXCompare specs
