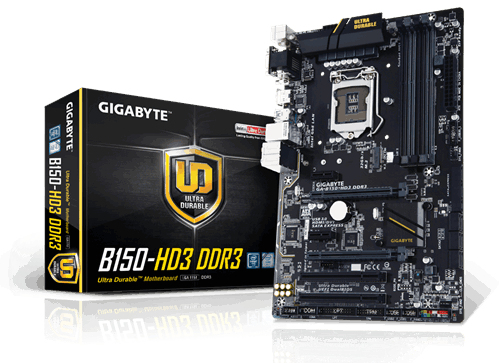

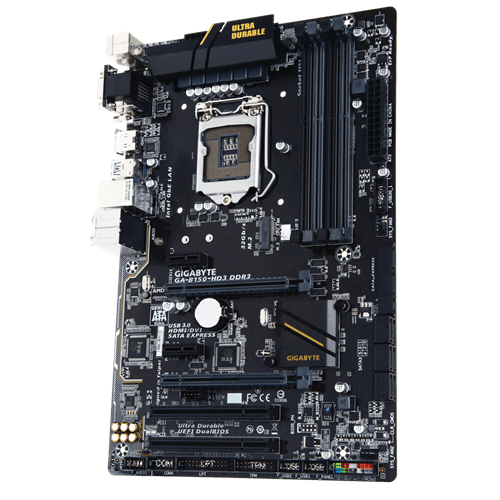

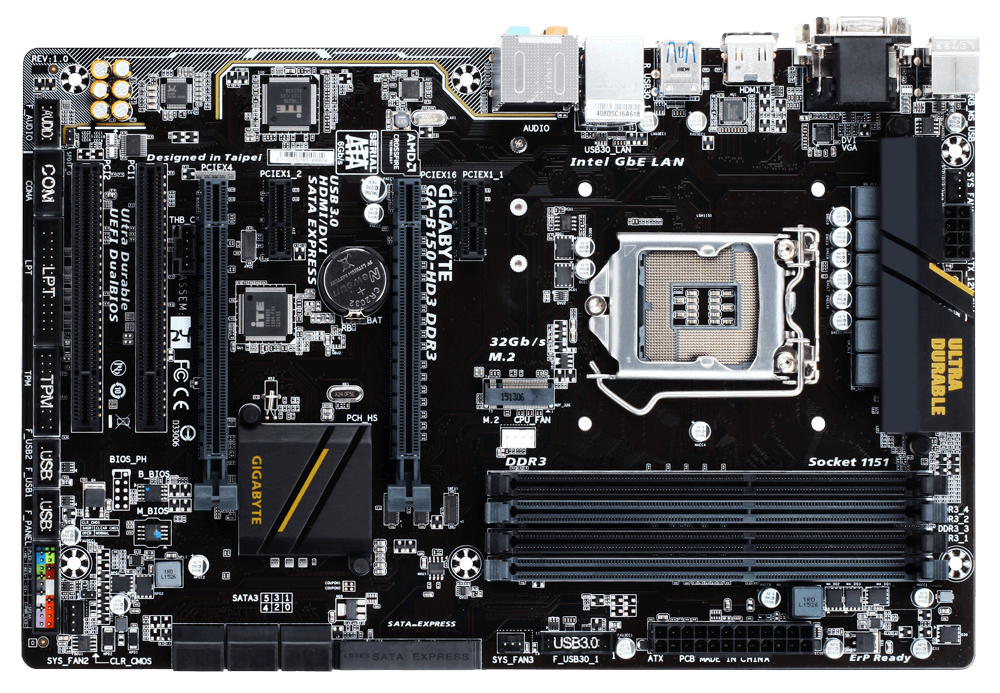

GIGABYTE GA-B150-HD3 DDR3 (rev. 1.0)
Model GA-B150-HD3 DDR3 (rev. 1.0)Part no. GA-B150-HD3 DDR3EAN 4719331837297
65 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
- Supported storage drive interfacesM.2, SATA III
- Graphics cardHD Graphics
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM, DDR3L-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- Graphics card
- HD Graphics
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-B150-HD3 DDR3 (rev. 1.0)
- Part number
- GA-B150-HD3 DDR3
- EAN / UPC
- 4719331837297
- Also known as
- GIGABYTE GA-B150-HD3 DDR3 (rev. 1.0) Intel® B150 LGA 1151 (Socket H4) ATX
Specifications
65 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1333,1600,1866 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
Graphics
| Specification | Value |
|---|---|
| Graphics card | HD Graphics |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of SATA Express connectors | 1 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| Parallel connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| Thunderbolt headers | 1 |

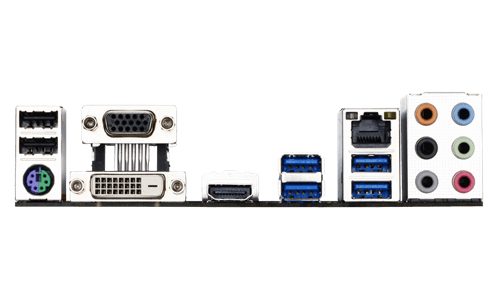

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B150 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 200 mm |
