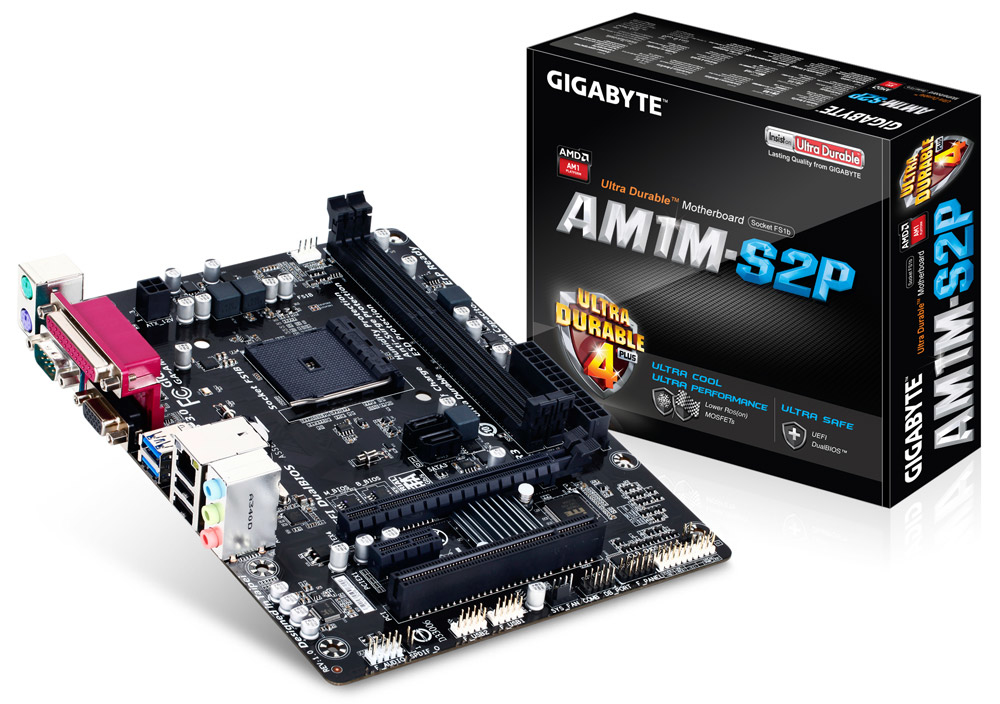

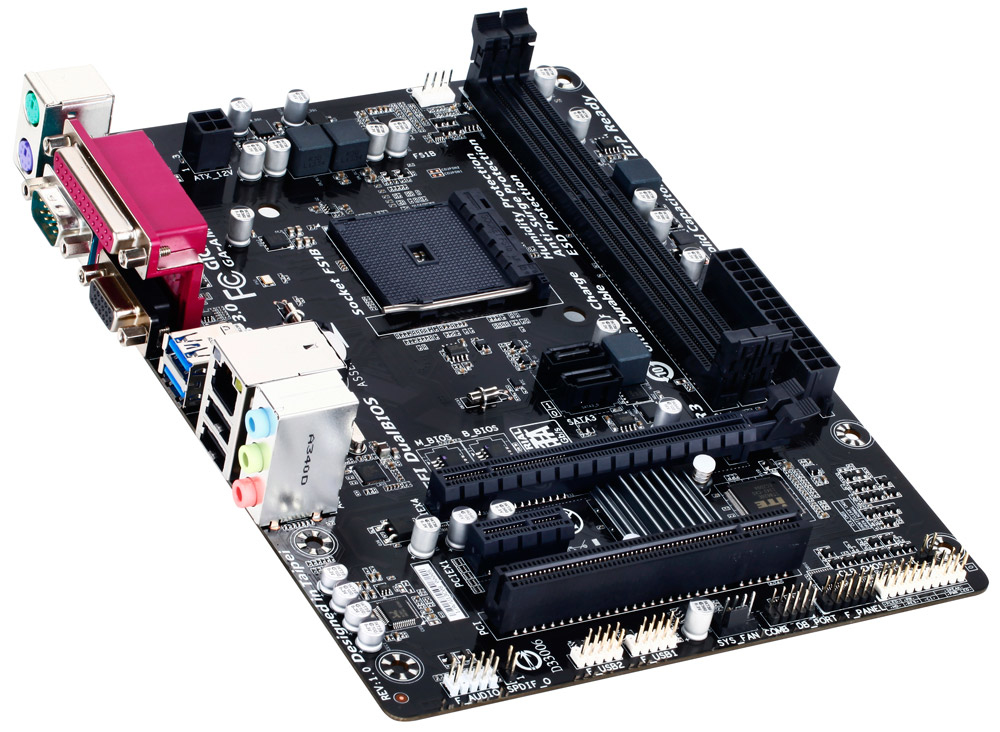

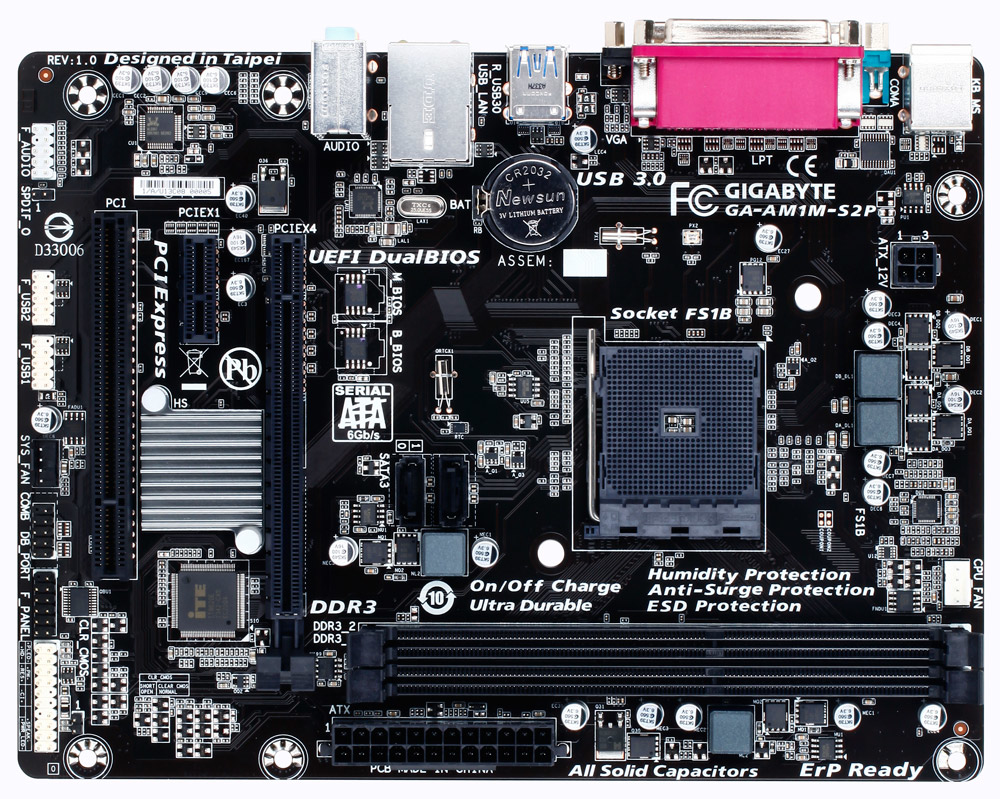

GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX
Model GA-AM1M-S2PEAN 818313020000
61 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory2048 MB
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 2048 MB
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-AM1M-S2P
- Part number
- GA-AM1M-S2P
- EAN / UPC
- 818313020000, 5054533607422, 8183130200006
- Also known as
- GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX
Specifications
61 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM1 |
| Compatible processor series | AMD Athlon, AMD Sempron |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 2048 MB |
| On-board graphics card | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Serial port headers | 1 |

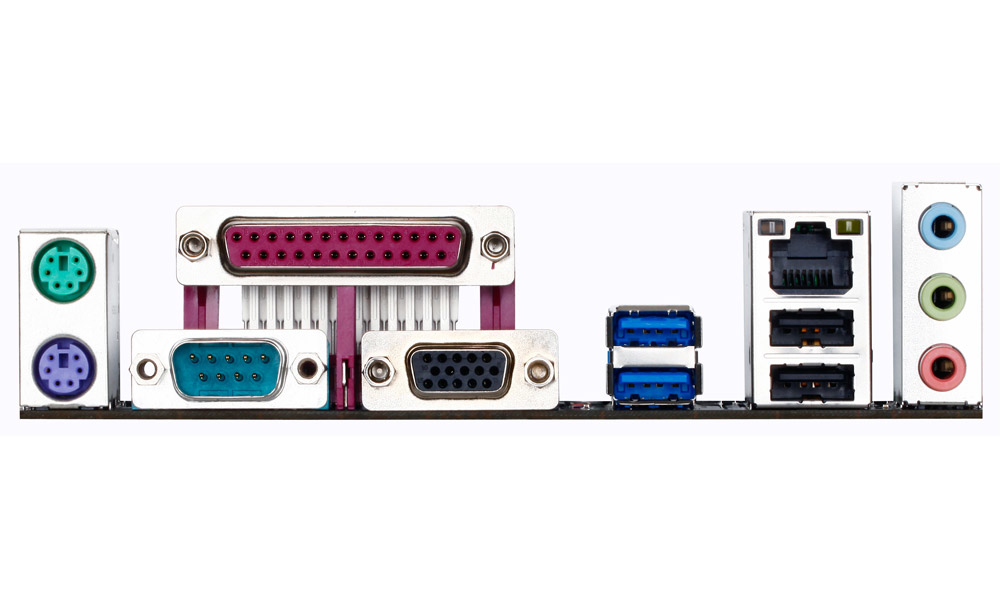

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Power supply, Temperature |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
| Overclocking features | @BIOS Q-Flash Xpress Install EasyTune Smart Recovery 2 ON/OFF Charge |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version) |
What people say
Reviews & ratings
GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX
All motherboard comparisons- GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX vsGIGABYTE GA-990FXA-UD3 (rev. 4.0)Compare specs

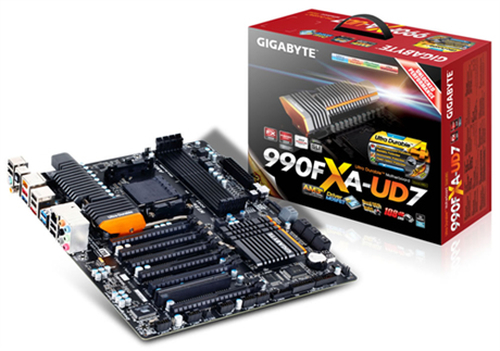

- GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX vsGIGABYTE GA-990FXA-UD7 (rev. 3.0)Compare specs
- GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX vsGIGABYTE GA-AM1M-S2H motherboard Socket AM1 micro ATXCompare specs
- GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX vsGIGABYTE GA-H61M-S (rev. 1.0)Compare specs

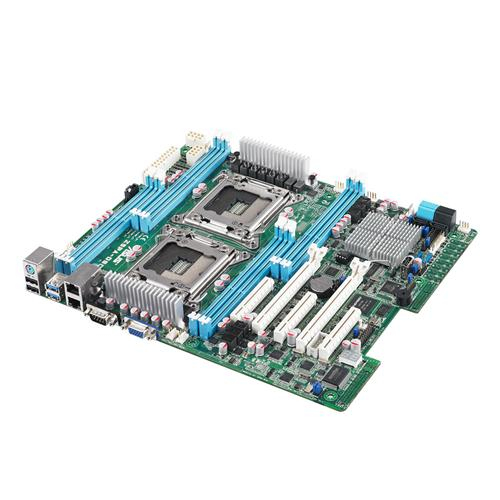

- GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX vsASUS Z9PA-D8C Intel® C602 LGA 2011 (Socket R) ATXCompare specs
- GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX vsMSI A58M-E35 motherboard AMD A58 Socket FM2+ micro ATXCompare specs

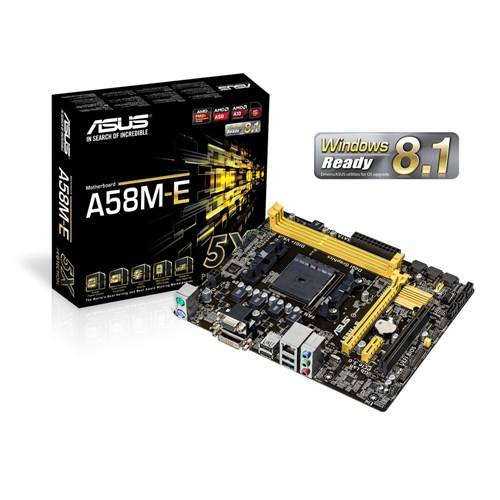

- GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX vsASUS A58M-E AMD A58 FCH (Bolton D2) Socket FM2+ micro ATXCompare specs

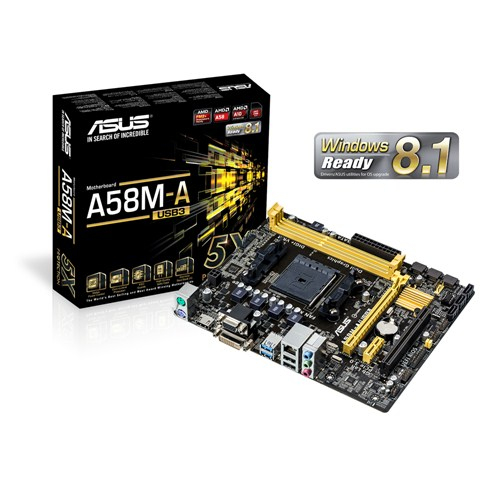

- GIGABYTE GA-AM1M-S2P motherboard Socket AM1 micro ATX vsASUS A58M-A/USB3 AMD A58 FCH (Bolton D2) Socket FM2+ micro ATXCompare specs
