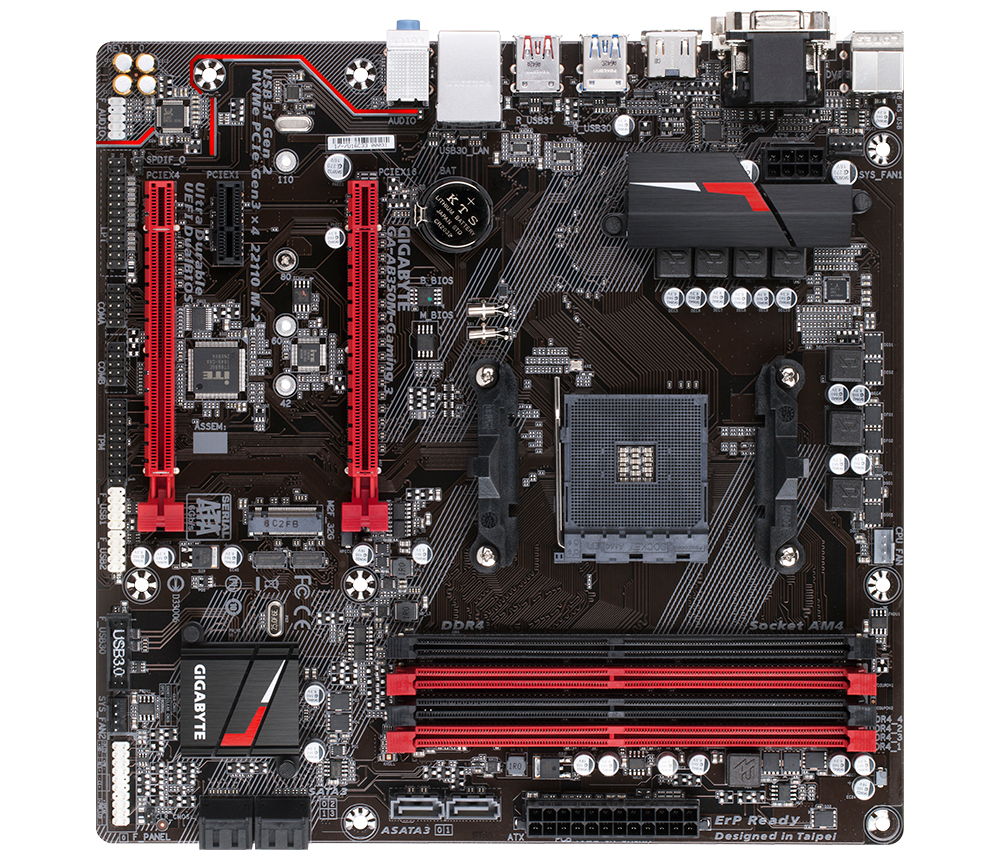

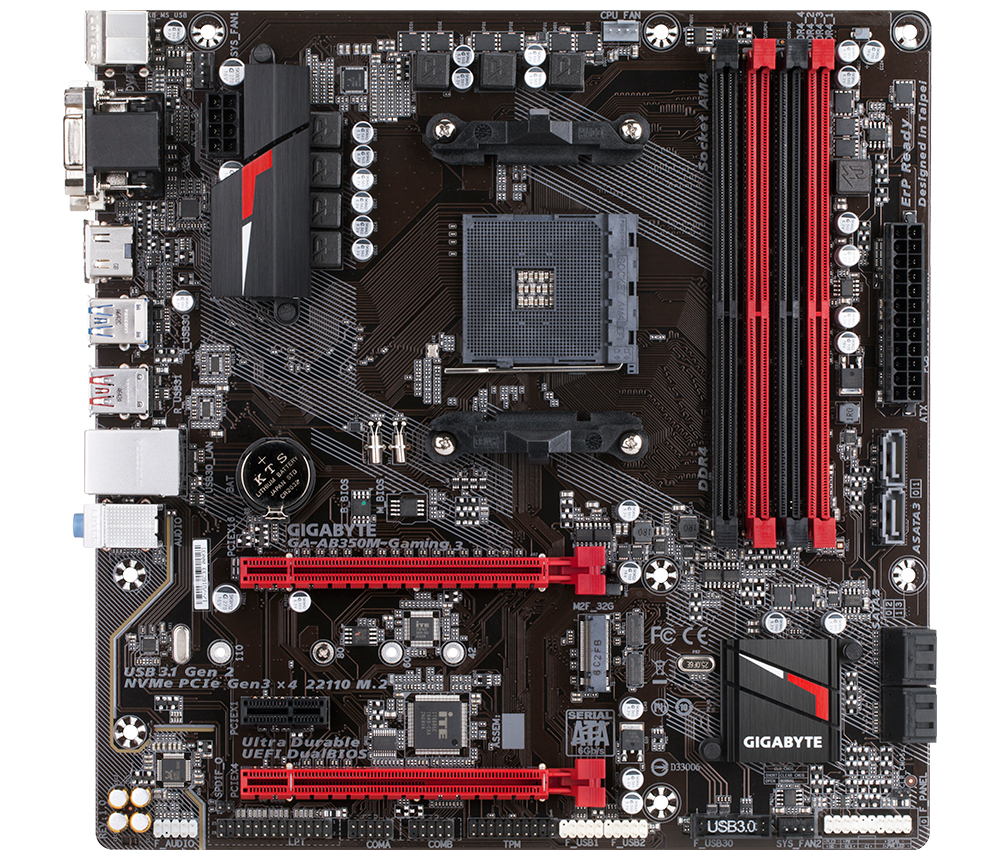

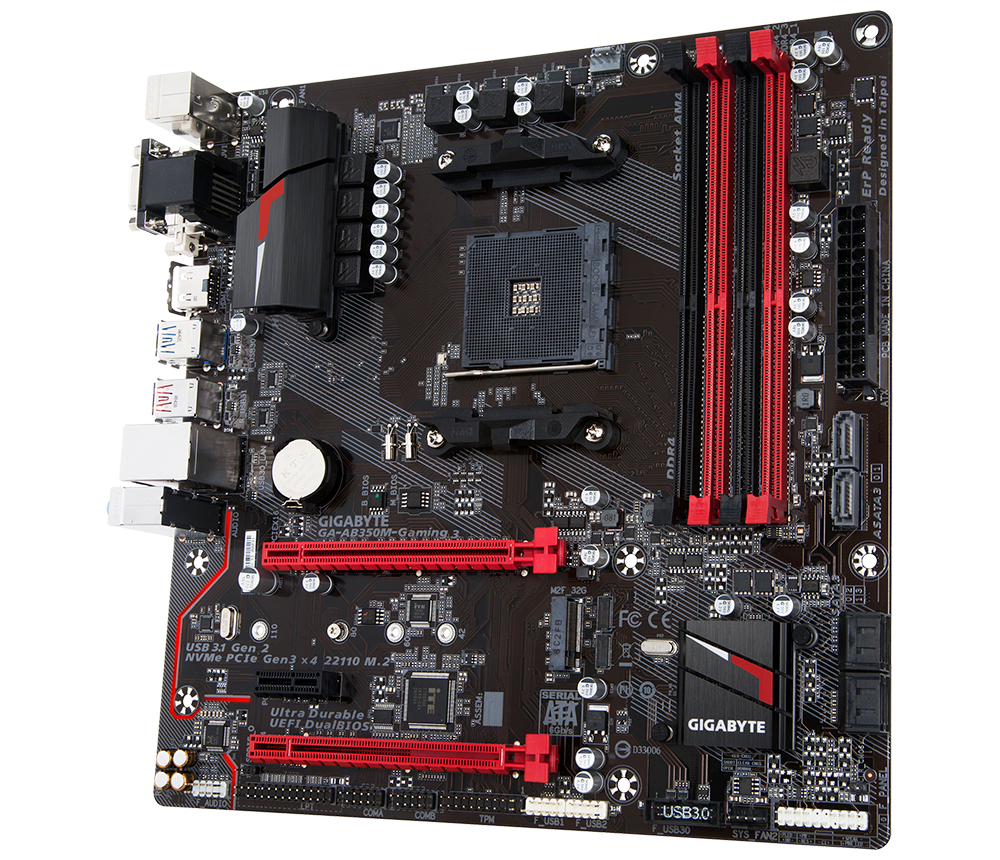

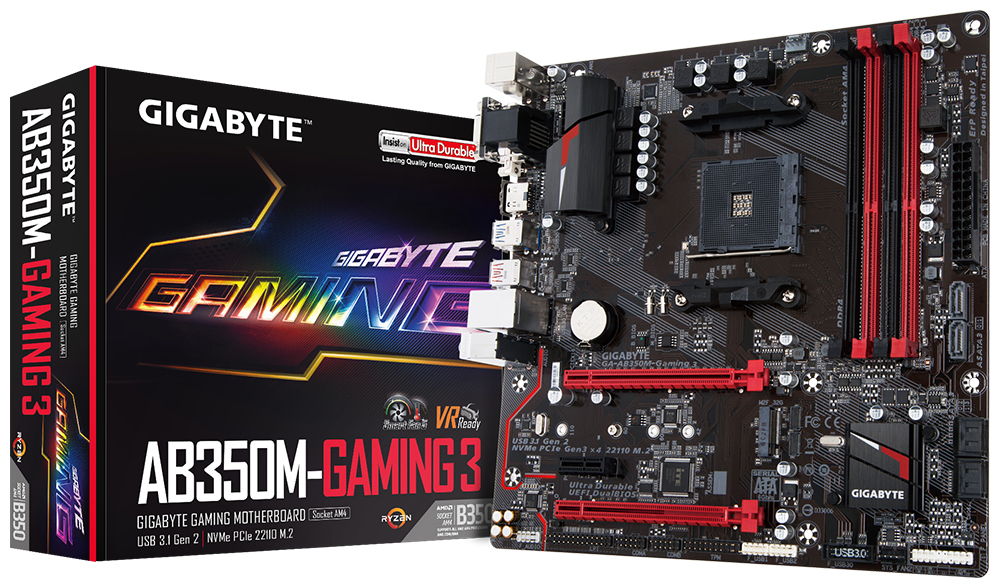

GIGABYTE GA-AB350M-Gaming 3
Model GA-AB350M-Gaming 3Part no. GA-AB350M-GAMING 3EAN 889523009253
66 specifications
- Memory0 GB
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors2
Overview
- Memory
- 0 GB
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-AB350M-Gaming 3
- Part numbers
- GA-AB350M-GAMING 3, GAAB35MG3-00-G
- EAN / UPC
- 889523009253, 4719331801373
- Also known as
- GIGABYTE GA-AB350M-Gaming 3 AMD B350 Socket AM4 micro ATX
Specifications
66 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 1 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Internal memory | 0 GB |
| Supported memory clock speeds | 2133,2400,2933,3200 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| Parallel connector | Yes |
| TPM connector | Yes |

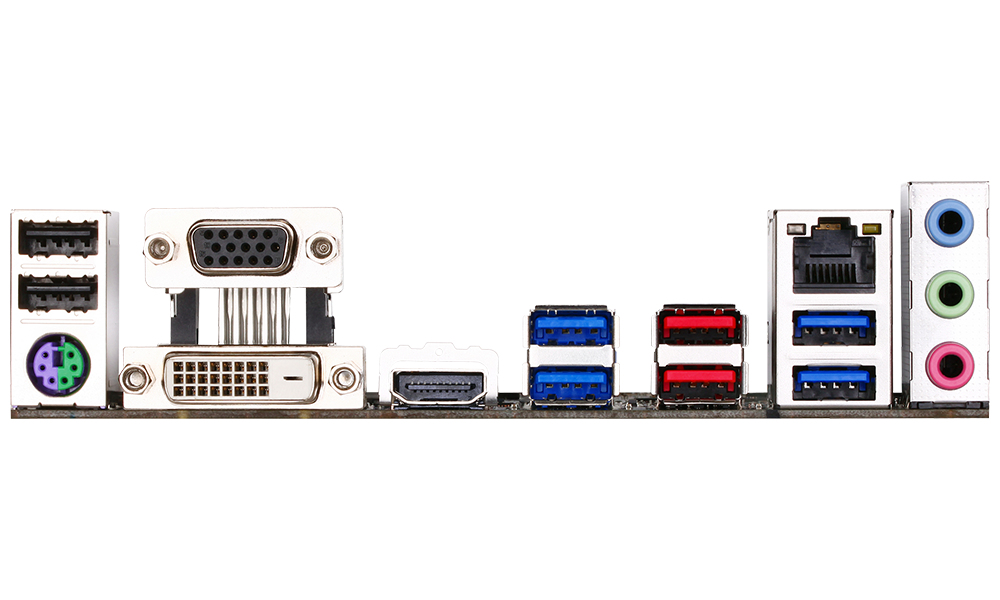

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B350 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x6 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Bundled software | Norton Internet Security (OEM version) cFosSpeed |
Other features
| Specification | Value |
|---|---|
| BIOS switch button | Yes |
| Quick installation guide | Yes |
What people say
Reviews & ratings
GIGABYTE GA-AB350M-Gaming 3
No reviews yet
Be the first to tell others how GIGABYTE GA-AB350M-Gaming 3 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-AB350M-Gaming 3
All motherboard comparisons- GIGABYTE GA-AB350M-Gaming 3 vsGIGABYTE GA-AB350M-DS2 motherboard AMD B350 Socket AM4 micro ATXCompare specs
- GIGABYTE GA-AB350M-Gaming 3 vsGIGABYTE GA-AX370-GAMING-K7 motherboard AMD X370 Socket AM4 ATXCompare specs

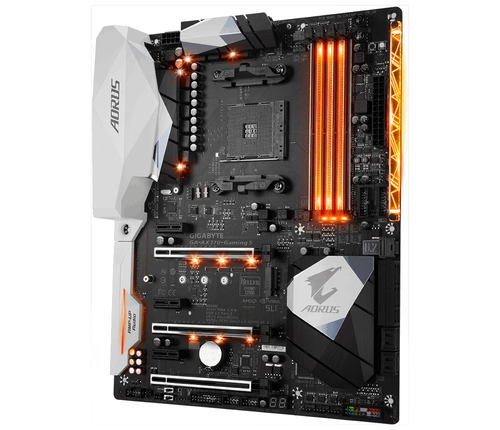

- GIGABYTE GA-AB350M-Gaming 3 vsGIGABYTE GA-AX370-GAMING 5Compare specs

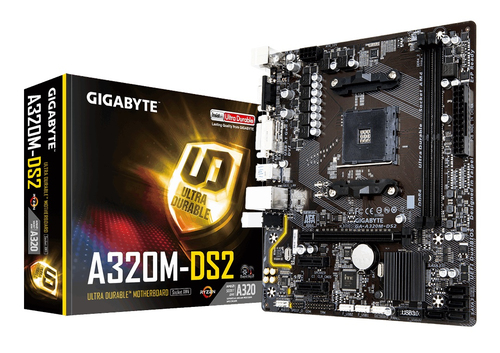

- GIGABYTE GA-AB350M-Gaming 3 vsGIGABYTE GA-A320M-DS2 motherboard AMD A320 Socket AM4 micro ATXCompare specs
- GIGABYTE GA-AB350M-Gaming 3 vsMSI X370 GAMING PRO CARBONCompare specs
- GIGABYTE GA-AB350M-Gaming 3 vsMSI B350 TOMAHAWKCompare specs

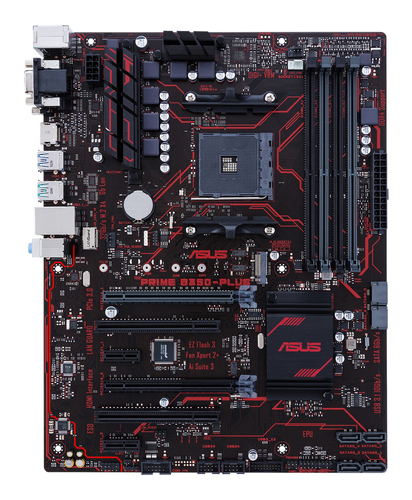

- GIGABYTE GA-AB350M-Gaming 3 vsASUS PRIME B350-PLUSCompare specs

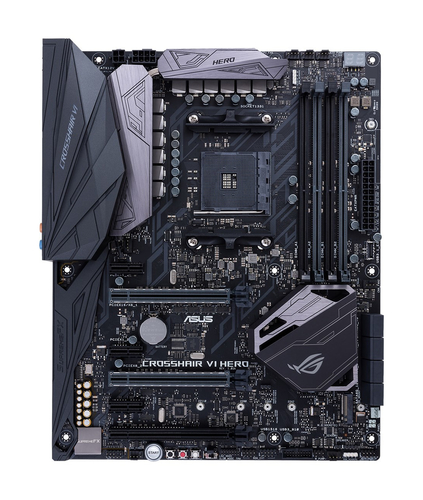

- GIGABYTE GA-AB350M-Gaming 3 vsASUS CROSSHAIR VI HEROCompare specs
