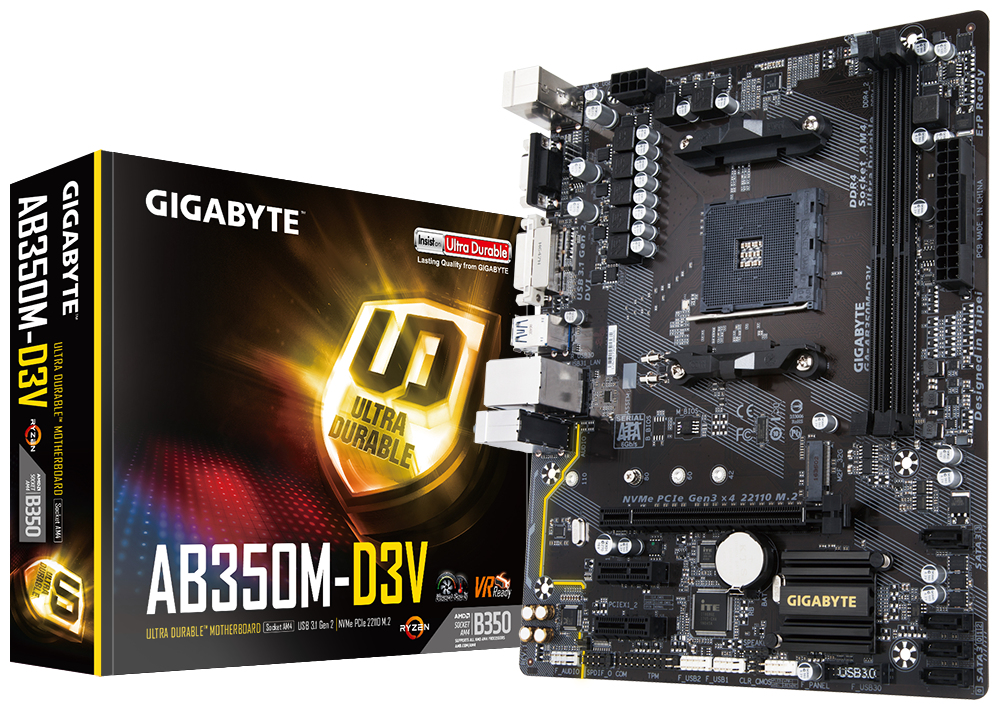

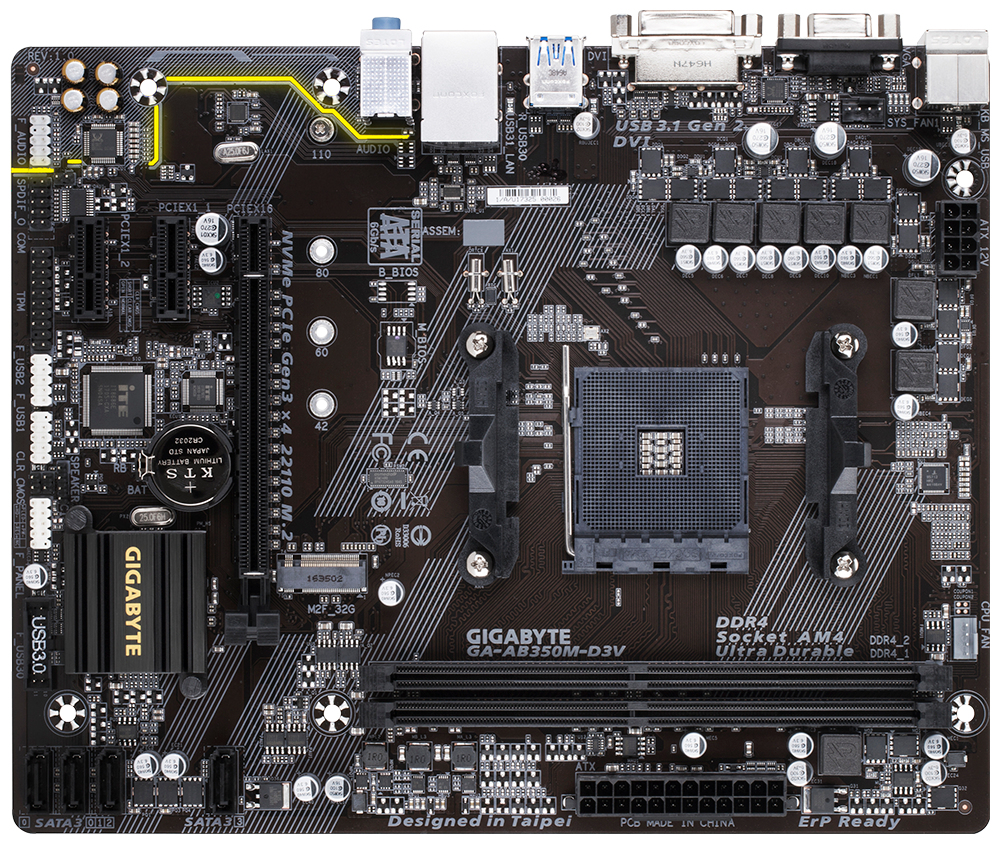

GIGABYTE GA-AB350M-D3V motherboard AMD B350 Socket AM4 micro ATX
Model GA-AB350M-D3VEAN 889523010259
71 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- RAID levels0, 1, 10
- Maximum resolution1920 x 1200 pixels
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- RAID levels
- 0, 1, 10
- Maximum resolution
- 1920 x 1200 pixels
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-AB350M-D3V
- Part number
- GA-AB350M-D3V
- EAN / UPC
- 889523010259, 4719331801663
- Also known as
- GIGABYTE GA-AB350M-D3V motherboard AMD B350 Socket AM4 micro ATX
Specifications
71 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B350 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| Plug and Play | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 195 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
| Drivers included | Yes |
| Bundled software | Norton Internet Security, cFosSpeed |
