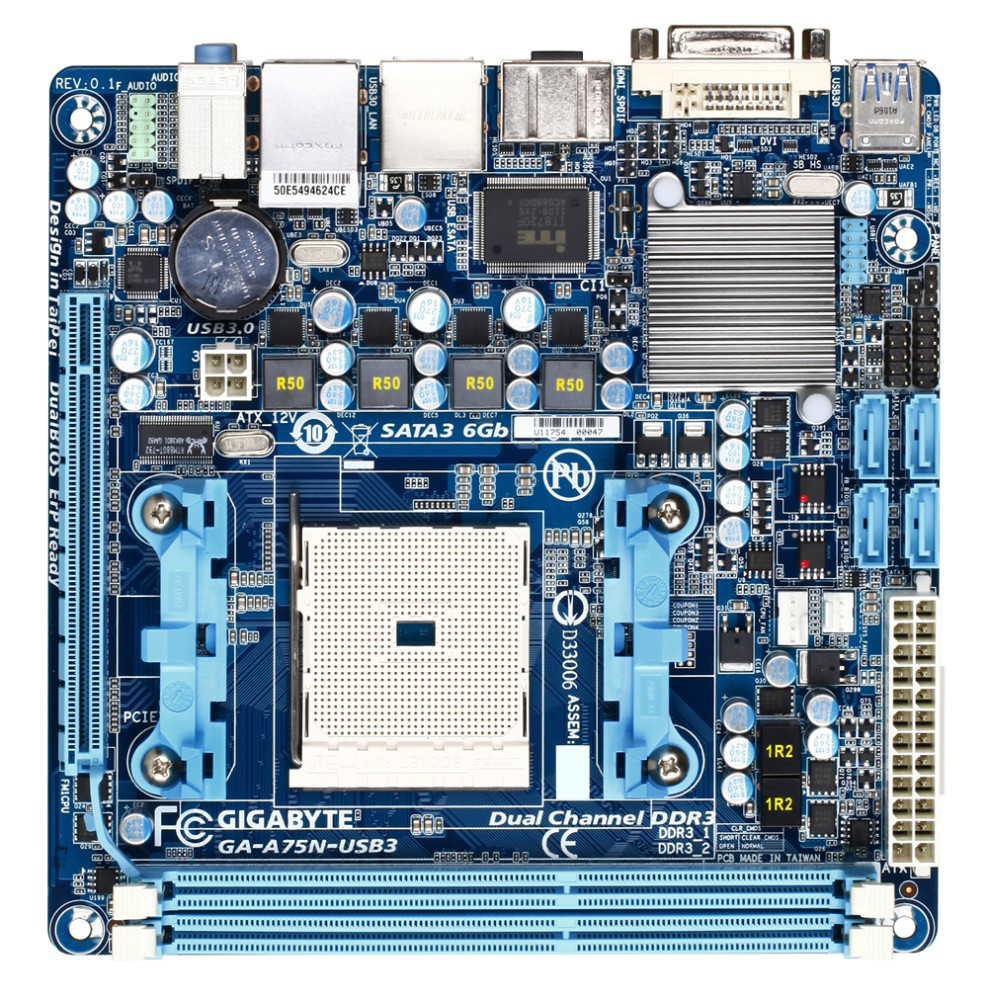

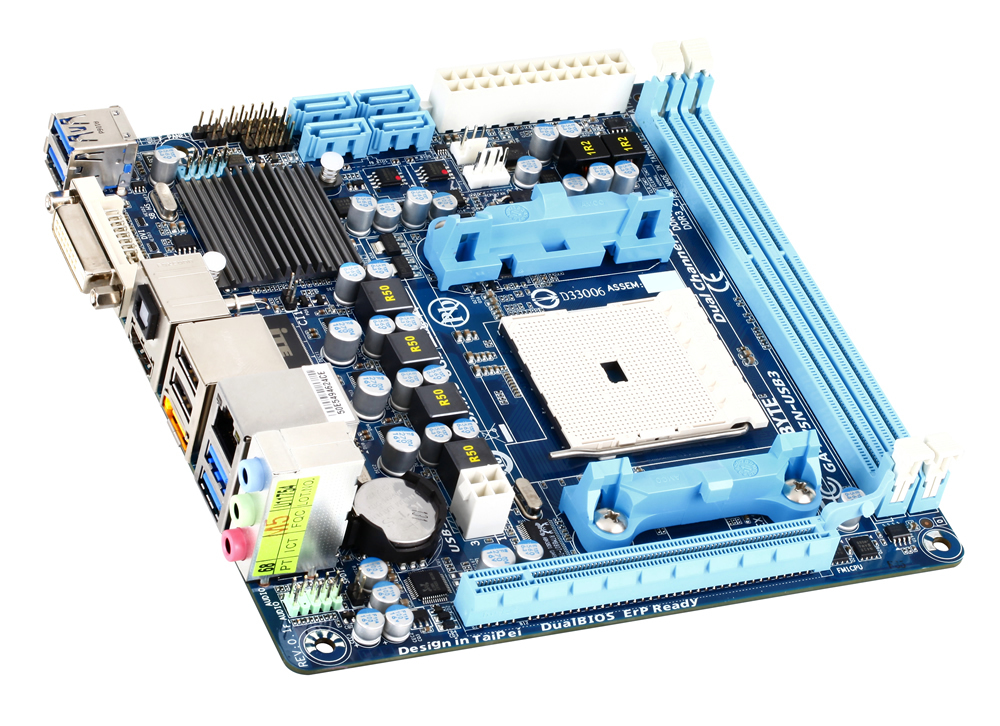

GIGABYTE GA-A75N-USB3 motherboard AMD A75 Socket FM1 mini ITX

GIGABYTE GA-A75N-USB3 motherboard AMD A75 Socket FM1 mini ITX

Model GA-A75N-USB3EAN 818313013613

53 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
GIGABYTE
Category
Motherboard
Model
GA-A75N-USB3
Part numbers
GA-A75N-USB3, GA-A75N-USB3-R1
EAN / UPC
818313013613, 4719331842192
Also known as
GIGABYTE GA-A75N-USB3 motherboard AMD A75 Socket FM1 mini ITX

Specifications

53 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesAMD A, AMD E2

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 10, JBOD

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1

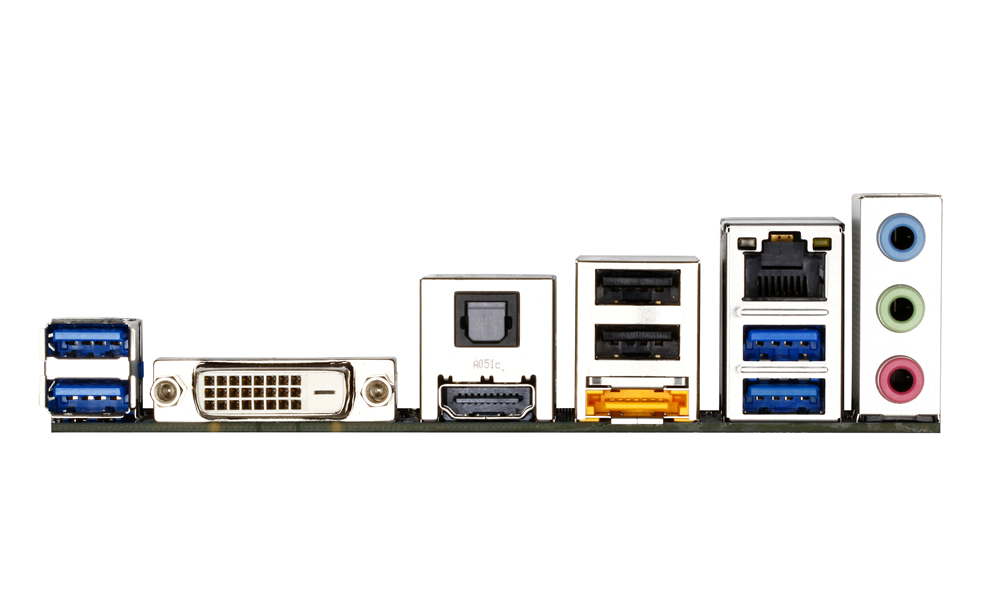

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
Networking featuresGigabit Ethernet

Features

Motherboard form factormini ITX
Motherboard chipset familyAMD
Motherboard chipsetAMD A75
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows 7/XP/Vista

Expansion slots

PCI Express x16 slots1

BIOS

BIOS typeAWARD
BIOS memory size64 Mbit
ACPI version1.0b
Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

Bundled softwareNorton Internet Security
