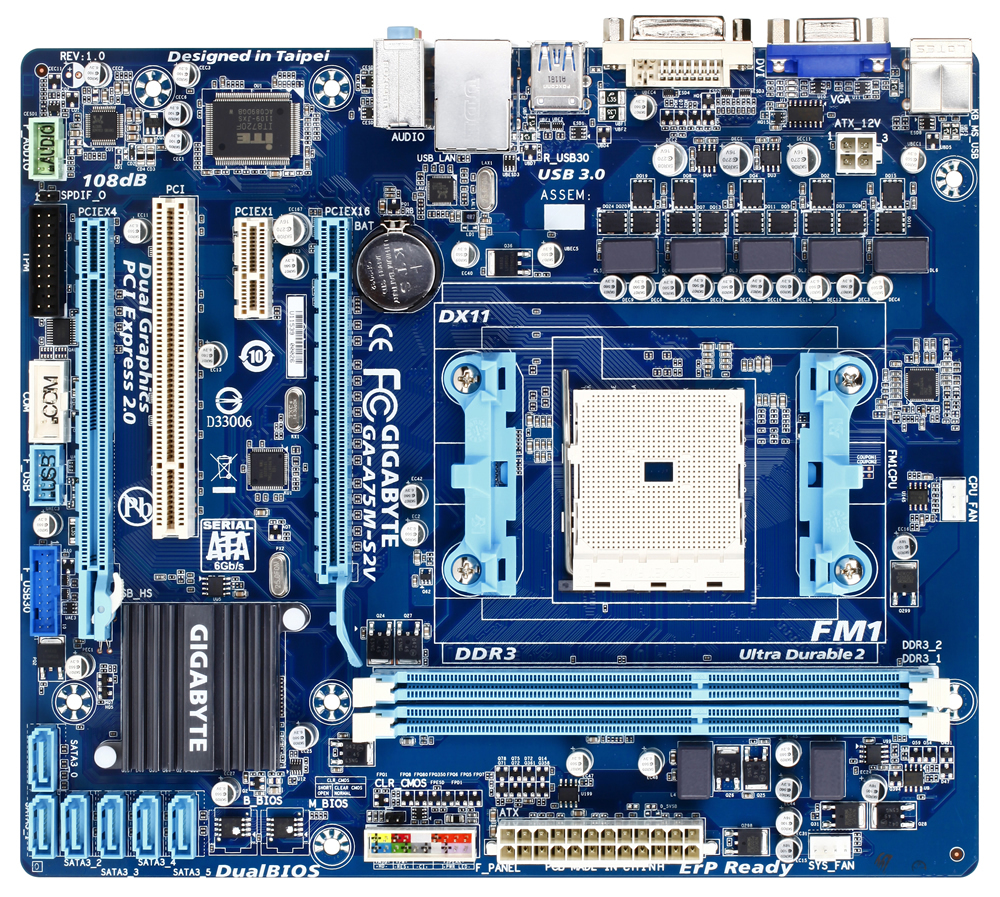

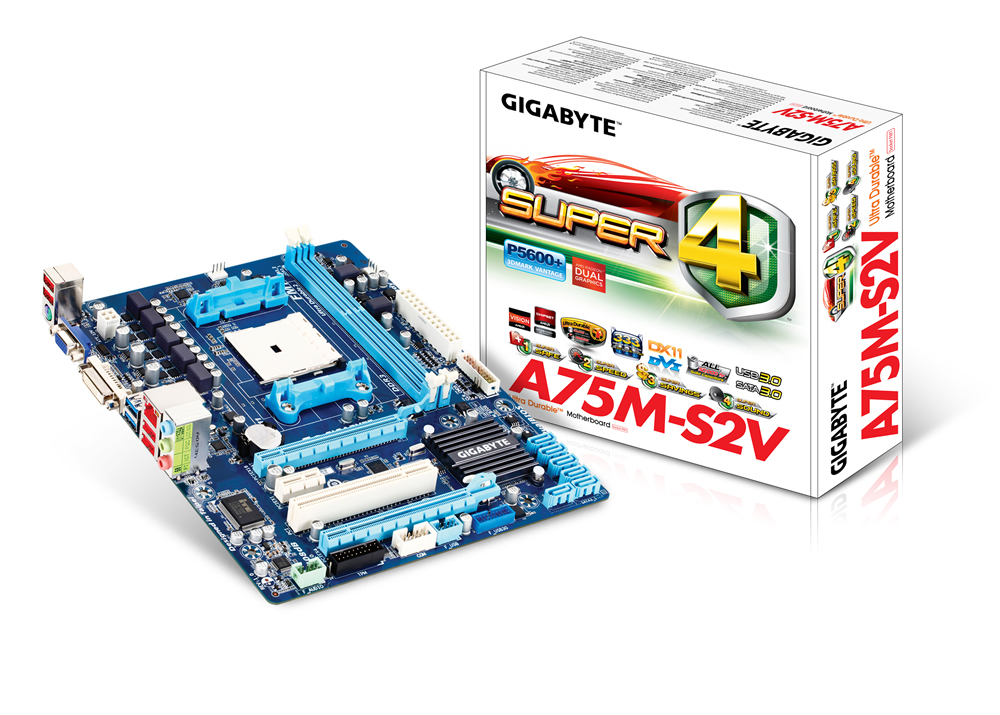

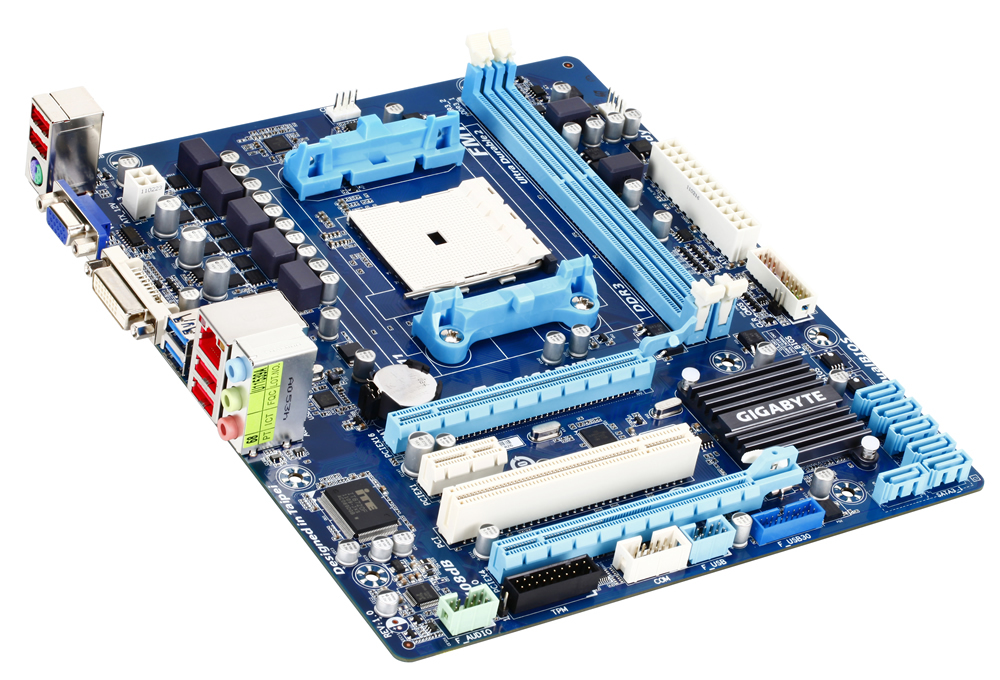

GIGABYTE GA-A75M-S2V motherboard AMD A75 Socket FM1 micro ATX
Model GA-A75M-S2VEAN 818313013491
58 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics cardYes
- USB 2.0 connectors1
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card
- Yes
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-A75M-S2V
- Part number
- GA-A75M-S2V
- EAN / UPC
- 818313013491, 4719331825140
- Also known as
- GIGABYTE GA-A75M-S2V motherboard AMD A75 Socket FM1 micro ATX
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM1 |
| Compatible processor series | AMD A, AMD E2 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600,1866,2400 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| TPM connector | Yes |

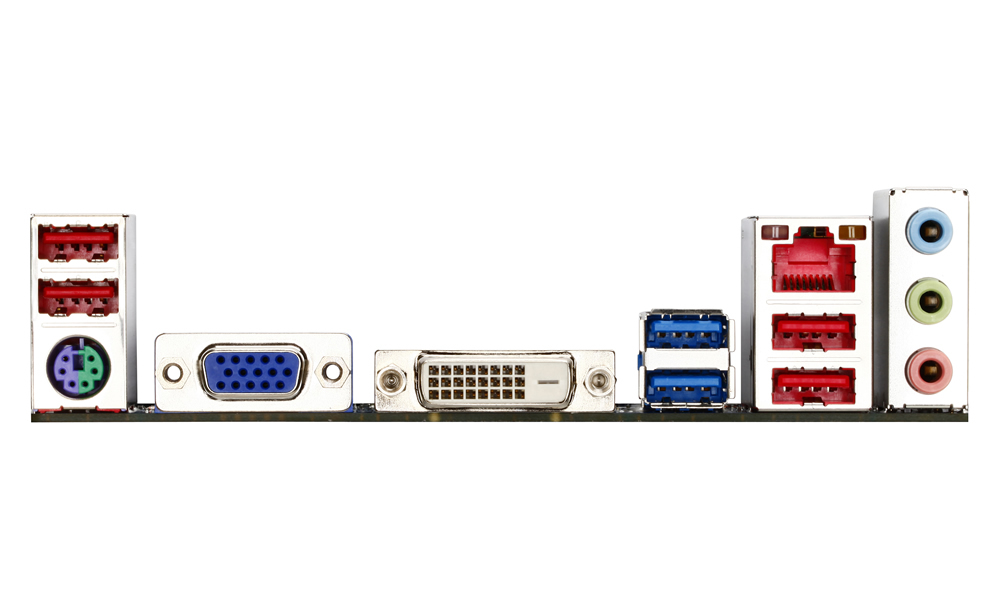

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A75 |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
| ACPI version | 1.0b |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 210 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Norton Internet Security OEM |
Other features
| Specification | Value |
|---|---|
| Controller interface type | iTE IT8720 |
