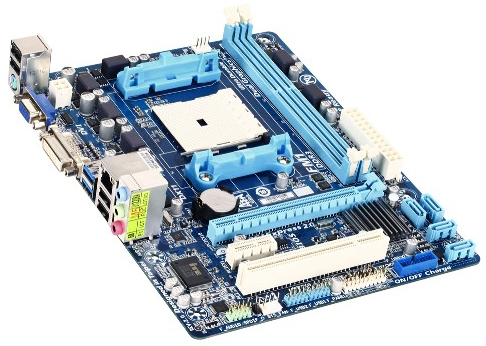

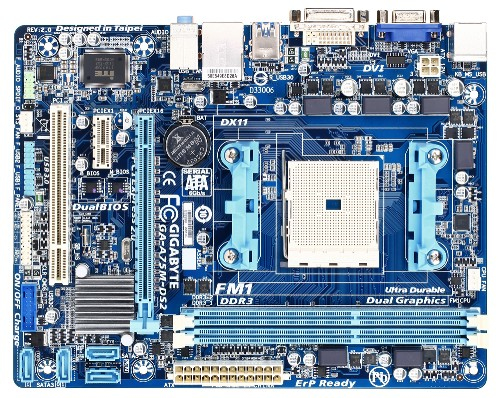

GIGABYTE GA-A75M-DS2 (rev. 2.0)
Model GA-A75M-DS2 (rev. 2.0)Part no. GA-A75M-DS2EAN 818313015662
40 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-A75M-DS2 (rev. 2.0)
- Part number
- GA-A75M-DS2
- EAN / UPC
- 818313015662, 4719331814212
- Also known as
- GIGABYTE GA-A75M-DS2 (rev. 2.0) AMD A75 micro ATX
Specifications
40 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Compatible processor series | AMD Athlon II, AMD Sempron |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |

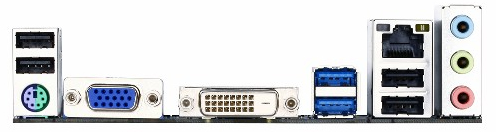

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A75 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 174 mm |
What people say
Reviews & ratings
GIGABYTE GA-A75M-DS2 (rev. 2.0)
No reviews yet
Be the first to tell others how GIGABYTE GA-A75M-DS2 (rev. 2.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-A75M-DS2 (rev. 2.0)
All motherboard comparisons- GIGABYTE GA-A75M-DS2 (rev. 2.0) vsGIGABYTE GA-78LMT-USB3 (rev. 4.1)Compare specs
- GIGABYTE GA-A75M-DS2 (rev. 2.0) vsGIGABYTE GA-Z77N-WIFI (rev. 1.0)Compare specs
- GIGABYTE GA-A75M-DS2 (rev. 2.0) vsGIGABYTE GA-B75M-D3P motherboard Intel B75 LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-A75M-DS2 (rev. 2.0) vsGIGABYTE GA-X79S-UP5-WIFI motherboard Intel® C606 LGA 2011 (Socket R) Extended ATXCompare specs
- GIGABYTE GA-A75M-DS2 (rev. 2.0) vsASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATXCompare specs

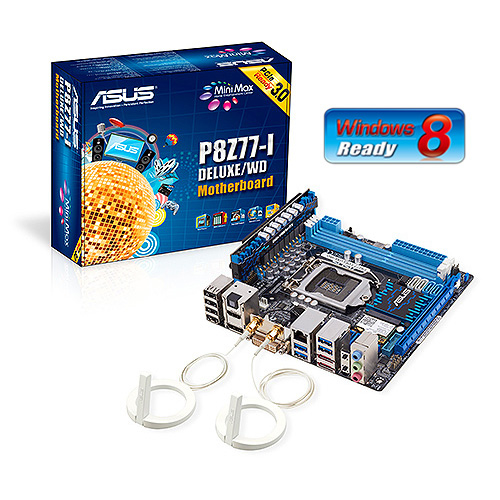

- GIGABYTE GA-A75M-DS2 (rev. 2.0) vsASUS P8Z77-I DELUXE/WDCompare specs
