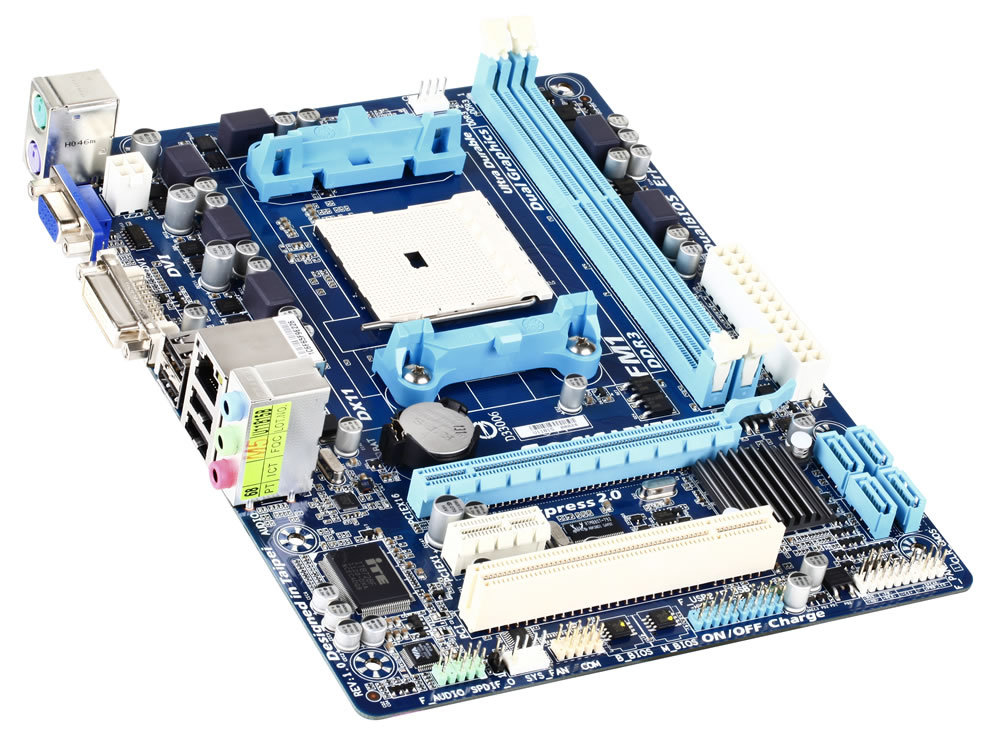

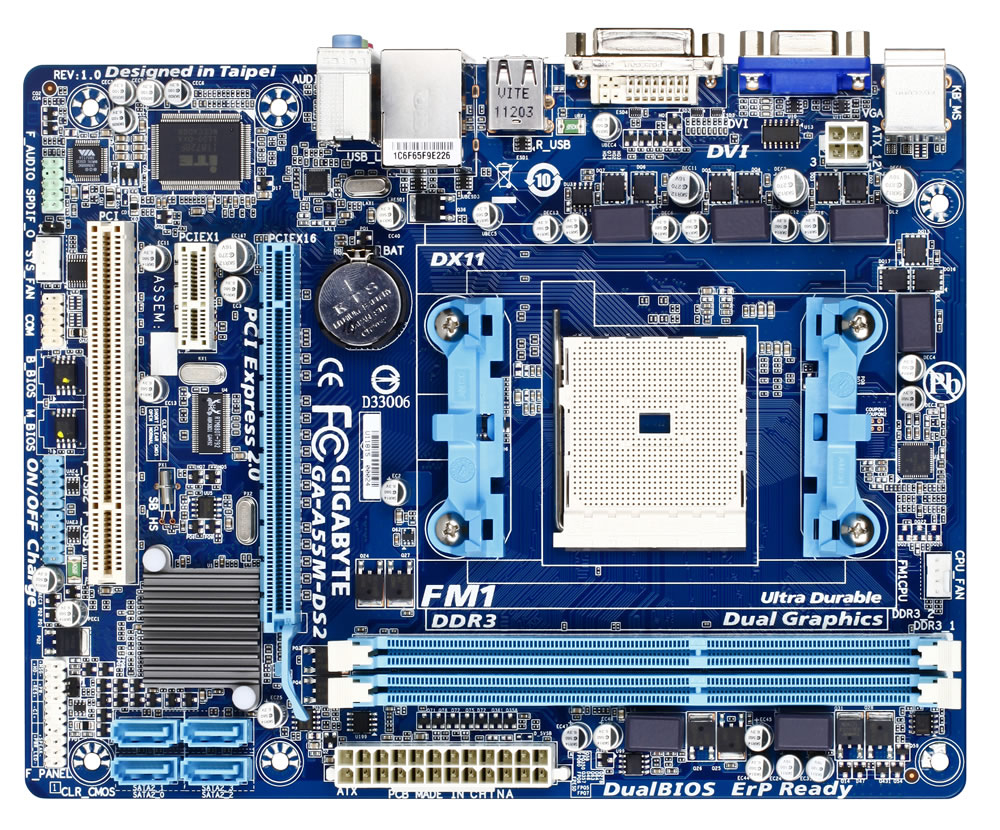

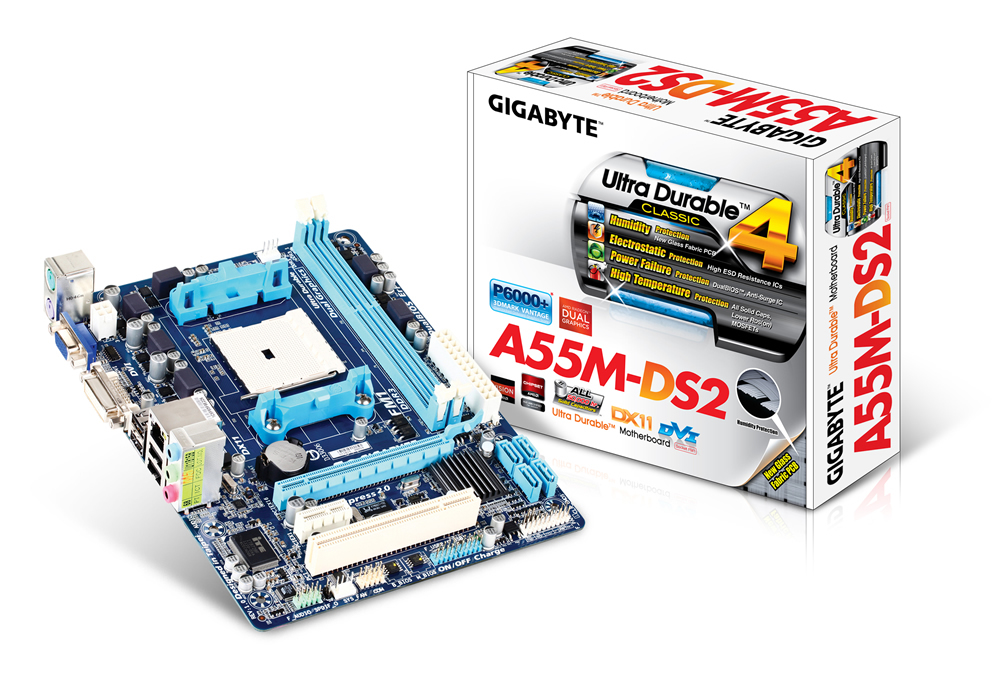

GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX
Model GA-A55M-DS2Part no. GA-A55M-DS2-R1EAN 8183130137432
58 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-A55M-DS2
- Part numbers
- GA-A55M-DS2-R1, GA-A55M-DS2, GA-A55M-DS2-R1.1
- EAN / UPC
- 8183130137432, 320127502578, 739368947442, 818313013743 +1 more
- Also known as
- GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX
Specifications
58 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM1 |
| Compatible processor series | AMD A, AMD E2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 16GB, 1GB, 2GB, 4GB, 8GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
| RAID levels | 0, 1, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | AMD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |

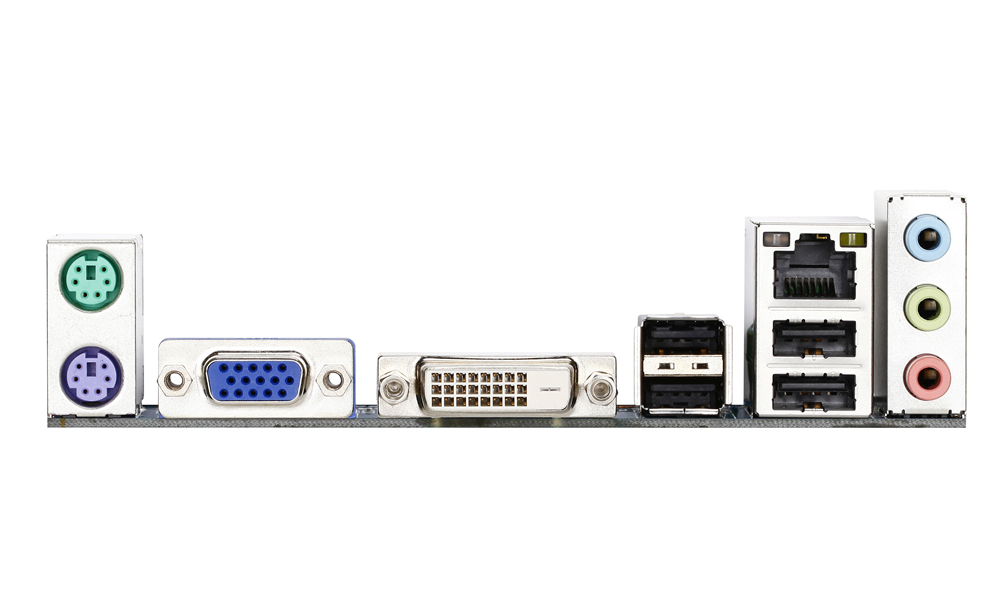

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 2 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A55 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
| ACPI version | 1.0b |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 174 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Trial software | Norton Internet Security |
What people say
Reviews & ratings
GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX
All motherboard comparisons- GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX vsGIGABYTE GA-P55-UD6 (rev. 1.0)Compare specs
- GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX vsGIGABYTE GA-H55-USB3 (rev. 2.0)Compare specs
- GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX vsGIGABYTE GA-X58A-UD3R (rev. 2.0)Compare specs
- GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX vsGIGABYTE G41MT-S2PT-LA motherboard Intel® G41 LGA 775 (Socket T) micro ATXCompare specs
- GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX vsMSI X79A-GD45 motherboard LGA 2011 (Socket R) ATXCompare specs

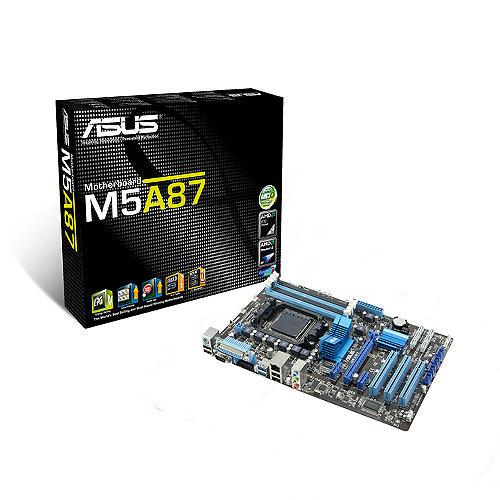

- GIGABYTE GA-A55M-DS2 motherboard AMD A55 Socket FM1 micro ATX vsASUS M5A87 AMD 870 (RX881) Socket AM3 ATXCompare specs
