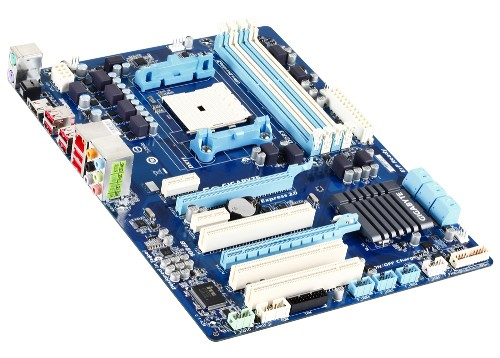

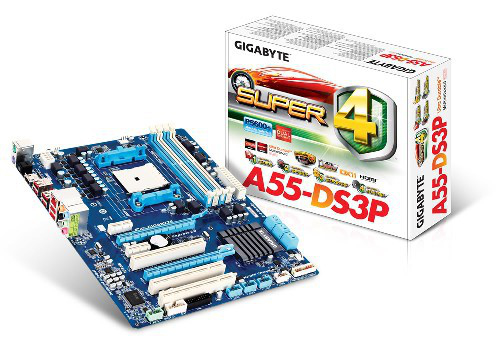

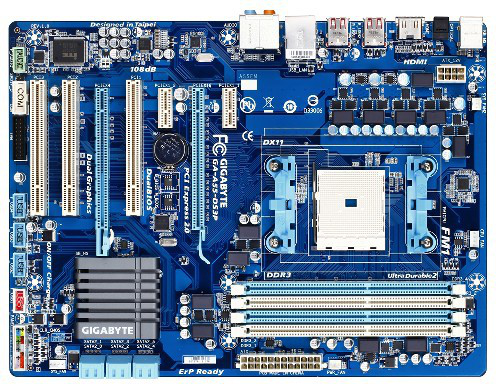

GIGABYTE GA-A55-DS3P AMD A75 Socket FM1 ATX

GIGABYTE GA-A55-DS3P AMD A75 Socket FM1 ATX

Model GA-A55-DS3PPart no. GA-A55-DS3P-R1EAN 200002285720

58 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors4
  • USB 2.0 ports quantity6
  • Ethernet interface typeFast Ethernet, Gigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
4
USB 2.0 ports quantity
6
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Brand
GIGABYTE
Category
Motherboard
Model
GA-A55-DS3P
Part numbers
GA-A55-DS3P-R1, GA-A55-DS3P
EAN / UPC
200002285720, 4719331826130
Also known as
GIGABYTE GA-A55-DS3P AMD A75 Socket FM1 ATX

Specifications

58 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesAMD A, AMD E2

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,1866,2400 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 10, JBOD

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

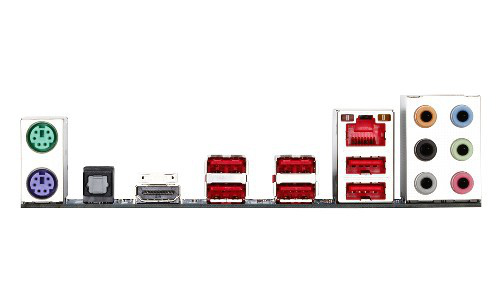

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs4
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A75
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows XP, Vista, 7

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
PCI Express slots version2.0
PCI slots3

BIOS

BIOS typeAWARD
BIOS memory size64 Mbit
ACPI version1.0b
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth225 mm

Packaging content

Drivers includedYes
Bundled softwareNorton Internet Security OEM

Other features

Controller interface typeiTE IT8720
