GIGABYTE GA-A320M-S2H motherboard AMD A320 Socket AM4 micro ATX
Model GA-A320M-S2HPart no. GAA32MS2H-00-GEAN 4719331802530
58 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- RAID levels0, 1, 10
- USB 2.0 connectors2
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-A320M-S2H
- Part numbers
- GAA32MS2H-00-G, GA-A320M-S2H
- EAN / UPC
- 4719331802530, 889523008355, 889523011904, 4719331802585
- Also known as
- GIGABYTE GA-A320M-S2H motherboard AMD A320 Socket AM4 micro ATX
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A320 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 195 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Bundled software | Norton® Internet Security (OEM version) cFosSpeed |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Utilities included | Yes |
What people say
Reviews & ratings
GIGABYTE GA-A320M-S2H motherboard AMD A320 Socket AM4 micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-A320M-S2H motherboard AMD A320 Socket AM4 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-A320M-S2H motherboard AMD A320 Socket AM4 micro ATX

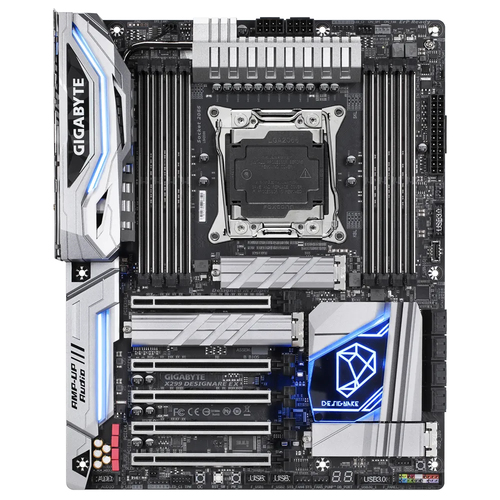

All motherboard comparisons- GIGABYTE GA-A320M-S2H motherboard AMD A320 Socket AM4 micro ATX vsGIGABYTE X299 DESIGNARE EXCompare specs

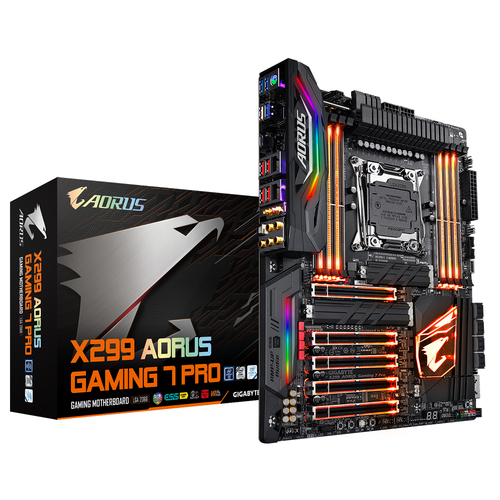

- GIGABYTE GA-A320M-S2H motherboard AMD A320 Socket AM4 micro ATX vsGIGABYTE X299 AORUS Gaming 7 ProCompare specs
