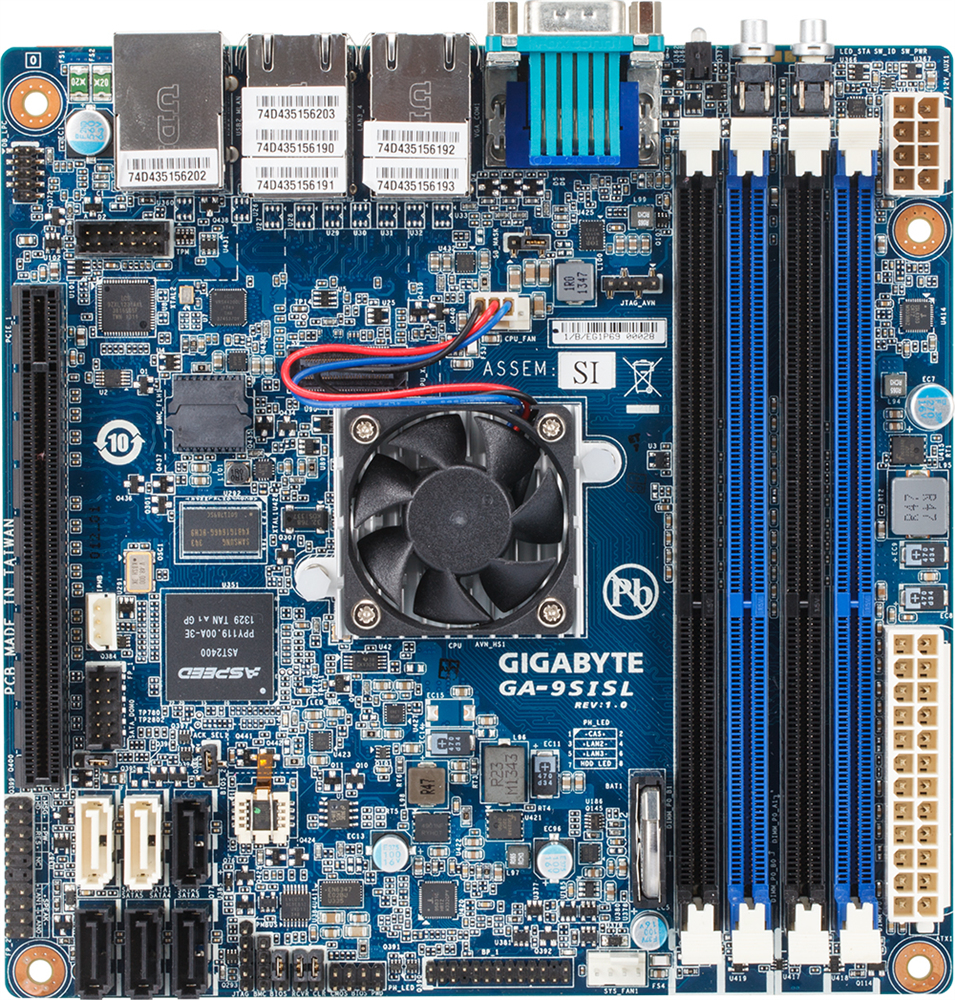

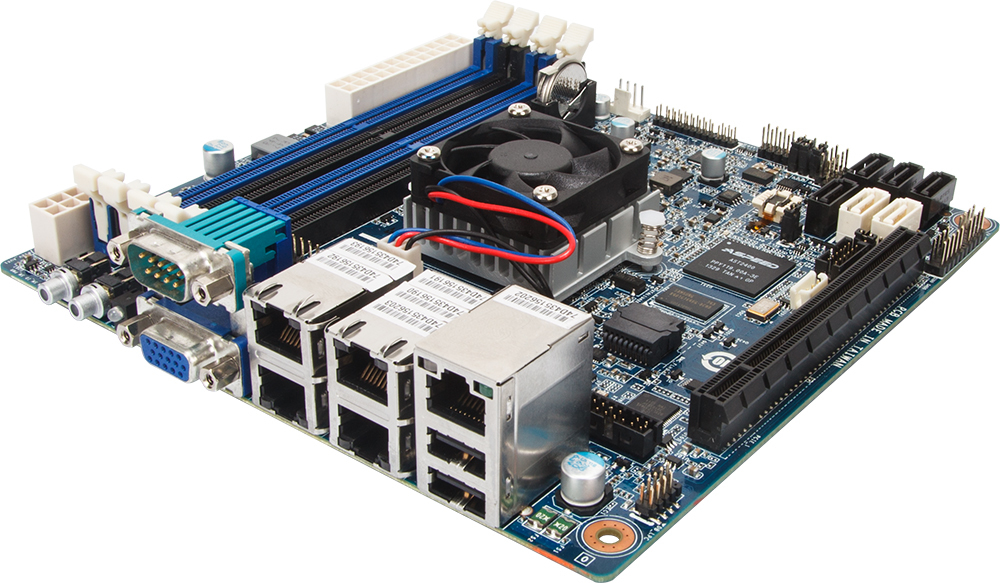

GIGABYTE GA-9SISL (rev. 1.2)
Model GA-9SISL (rev. 1.2)Part no. GA-9SISLEAN 818313022219
49 specifications
- Processor manufacturerIntel
- Memory voltage1.35,1.5 V
- Supported storage drive interfacesSATA II, SATA III
- On-board graphics card modelAspeed AST2400
- USB 2.0 connectors0
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Memory voltage
- 1.35,1.5 V
- Supported storage drive interfaces
- SATA II, SATA III
- On-board graphics card model
- Aspeed AST2400
- USB 2.0 connectors
- 0
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-9SISL (rev. 1.2)
- Part number
- GA-9SISL
- EAN / UPC
- 818313022219, 4053162453463, 4719331825263
- Also known as
- GIGABYTE GA-9SISL (rev. 1.2) BGA 1283 Mini-ITX
Specifications
49 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 1283 |
| Processor system buses supported | 2400,2600 MHz |
| Lithography | 22 nm |
| Processor number of cores supported | 8 |
| Processor thermal power (max) | 20 W |
Memory
| Specification | Value |
|---|---|
| Memory voltage | 1.35,1.5 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 64 GB |
| Memory bandwidth (max) | 25.6 GB/s |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID support | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 5 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Mini-ITX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 0 |
Processor special features
| Specification | Value |
|---|---|
| Integrated BMC with IPMI | Yes |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
| Number of processors supported | 1 |
