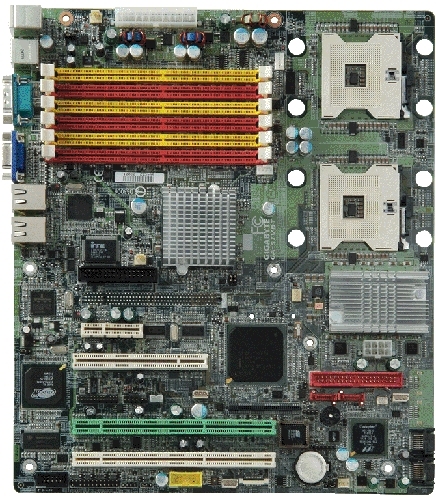

GIGABYTE GA-9IVDT motherboard Intel® E7320 Socket 604 (mPGA604) SSI CEB
Model GA-9IVDT
21 specifications
- Processor manufacturerIntel
- ECC сompatibilityECC
- RAID levels0, 1
- Number of SATA connectors4
- USB 2.0 ports quantity2
- LAN controllerBroadcom BCM5721
Overview
- Processor manufacturer
- Intel
- ECC сompatibility
- ECC
- RAID levels
- 0, 1
- Number of SATA connectors
- 4
- USB 2.0 ports quantity
- 2
- LAN controller
- Broadcom BCM5721
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-9IVDT
- Part number
- GA-9IVDT
- Also known as
- GIGABYTE GA-9IVDT motherboard Intel® E7320 Socket 604 (mPGA604) SSI CEB
Specifications
21 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 604 (mPGA604) |
| Compatible processor series | Intel® Xeon® |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC |
| Maximum internal memory | 12 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
| ATX Power connector (24-pin) | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Broadcom BCM5721 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI CEB |
| Motherboard chipset | Intel® E7320 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 267 mm |
Other features
| Specification | Value |
|---|---|
| RAID controller type | SATA |
