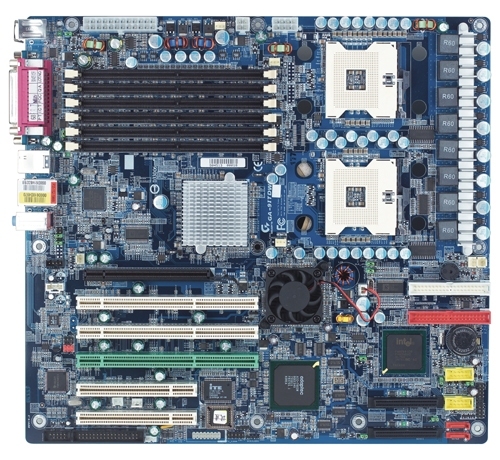

GIGABYTE GA-9ITDW (Server / Workstation Board)
Model GA-9ITDW (Server / Workstation Board)Part no. GA-9ITDWEAN 4719331825034
20 specifications
- Processor manufacturerIntel
- Number of memory slots6
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
- Motherboard form factorExtended ATX
- BIOS memory size32 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- Extended ATX
- BIOS memory size
- 32 Mbit
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-9ITDW (Server / Workstation Board)
- Part number
- GA-9ITDW
- EAN / UPC
- 4719331825034
- Also known as
- GIGABYTE GA-9ITDW (Server / Workstation Board) Intel® E7525 Socket 604 (mPGA604) Extended ATX
Specifications
20 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 604 (mPGA604) |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | Extended ATX |
| Motherboard chipset | Intel® E7525 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI-E X16 1 x PCI-X 64bit/133MHz 2 x PCI-X 64bit/66~100MHz 2 x PCI 32bit/33MHz |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 308 mm |
| Depth | 330 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | ALC 655 |
