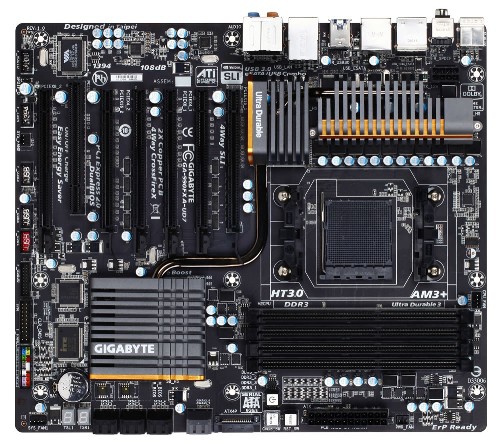

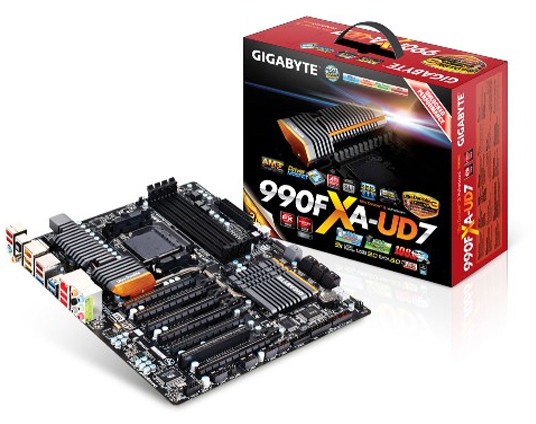

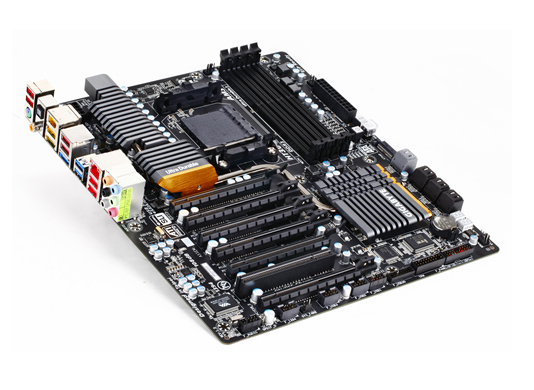

GIGABYTE GA-990FXA-UD7 motherboard AMD 990FX Socket AM3 ATX
Model GA-990FXA-UD7EAN 818313012876
58 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 5, 10, JBOD
- Parallel processing technology support3-Way SLI
- USB 2.0 connectors3
- USB 2.0 ports quantity7
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10, JBOD
- Parallel processing technology support
- 3-Way SLI
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 7
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-990FXA-UD7
- Part numbers
- GA-990FXA-UD7, GA-990FXA-UD7-R1, GA-990FXA-UD7-R1.x
- EAN / UPC
- 818313012876, 4719331819170
- Also known as
- GIGABYTE GA-990FXA-UD7 motherboard AMD 990FX Socket AM3 ATX
Specifications
58 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile, AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600,1866,2000 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|

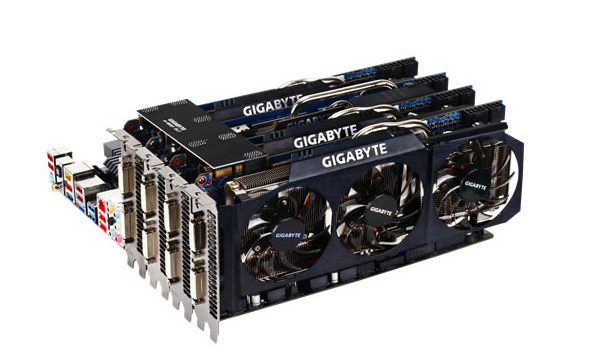

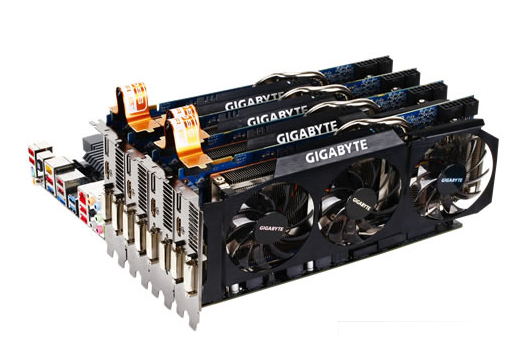

| Parallel processing technology support | 3-Way SLI |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

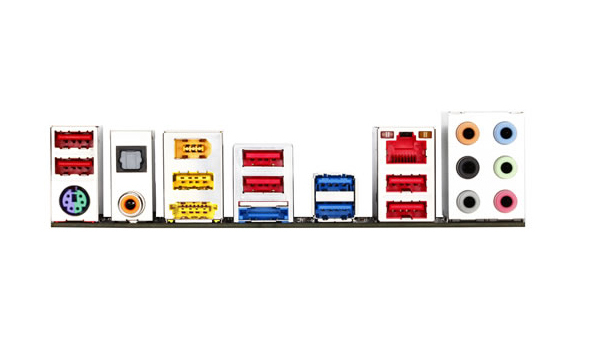

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 5 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 990FX |
| Motherboard southbridge | AMD SB950 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7/ Vista/ XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 2 |
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
| ACPI version | 1.0b |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 263 mm |
Other features
| Specification | Value |
|---|---|
| PCI Express power connectors (6-pin) | 1 |
| Controller interface type | ITE IT8720 |
What people say
Reviews & ratings
GIGABYTE GA-990FXA-UD7 motherboard AMD 990FX Socket AM3 ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-990FXA-UD7 motherboard AMD 990FX Socket AM3 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-990FXA-UD7 motherboard AMD 990FX Socket AM3 ATX
All motherboard comparisons- GIGABYTE GA-990FXA-UD7 motherboard AMD 990FX Socket AM3 ATX vsGIGABYTE GA-990FXA-UD5 motherboard AMD 990FX Socket AM3+ ATXCompare specs
- GIGABYTE GA-990FXA-UD7 motherboard AMD 990FX Socket AM3 ATX vsGIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATXCompare specs
- GIGABYTE GA-990FXA-UD7 motherboard AMD 990FX Socket AM3 ATX vsGIGABYTE GA-P45T-ES3G motherboard Intel® P45 LGA 775 (Socket T) ATXCompare specs

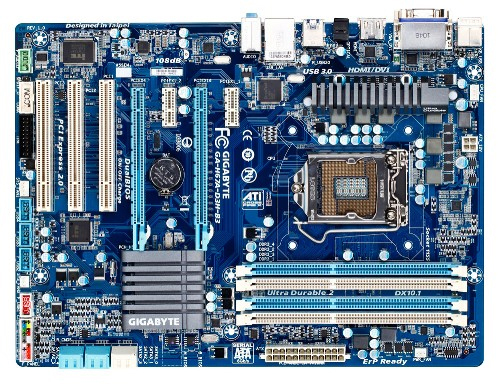

- GIGABYTE GA-990FXA-UD7 motherboard AMD 990FX Socket AM3 ATX vsGIGABYTE GA-H67A-D3H-B3 motherboard Intel® H67 LGA 1155 (Socket H2) ATXCompare specs
