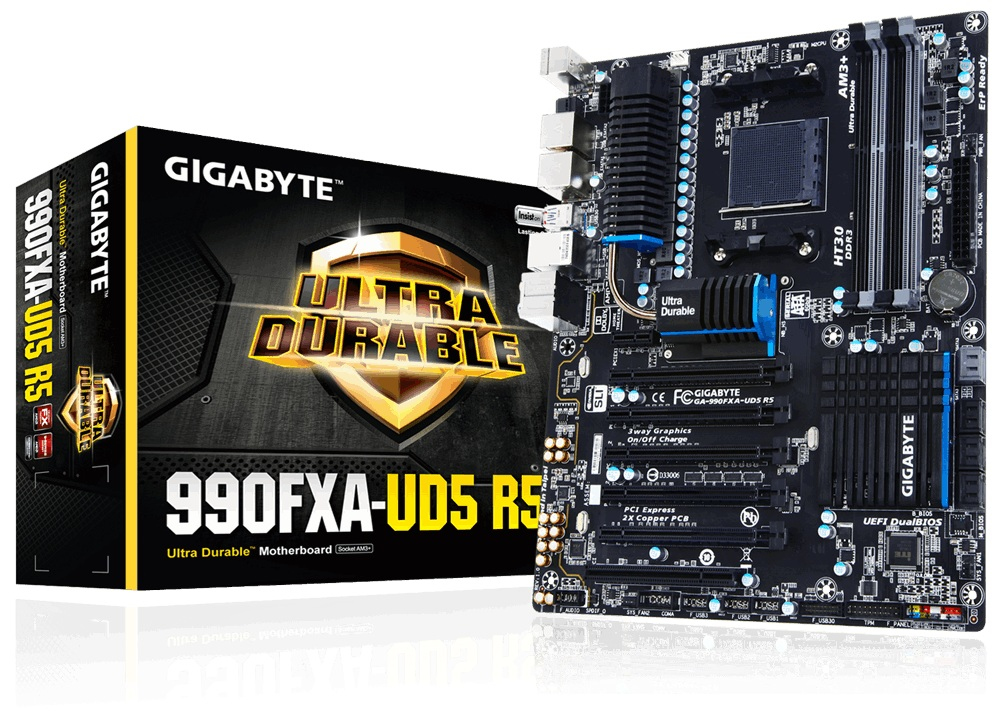

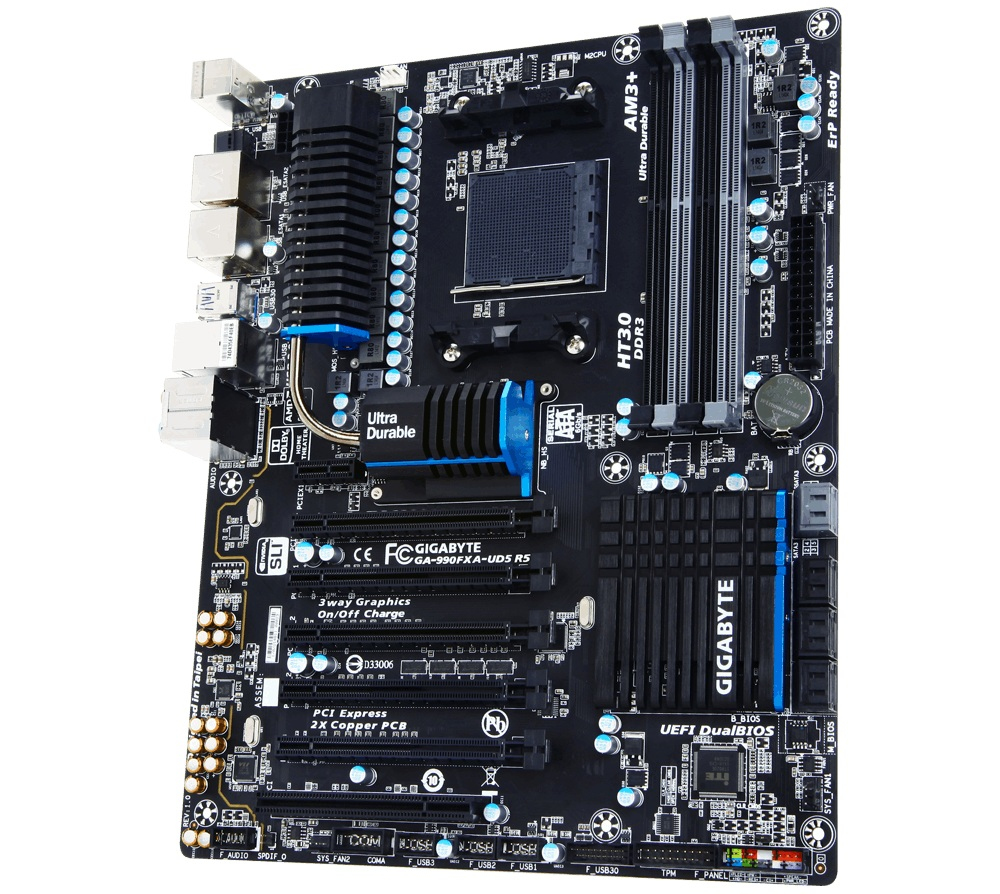

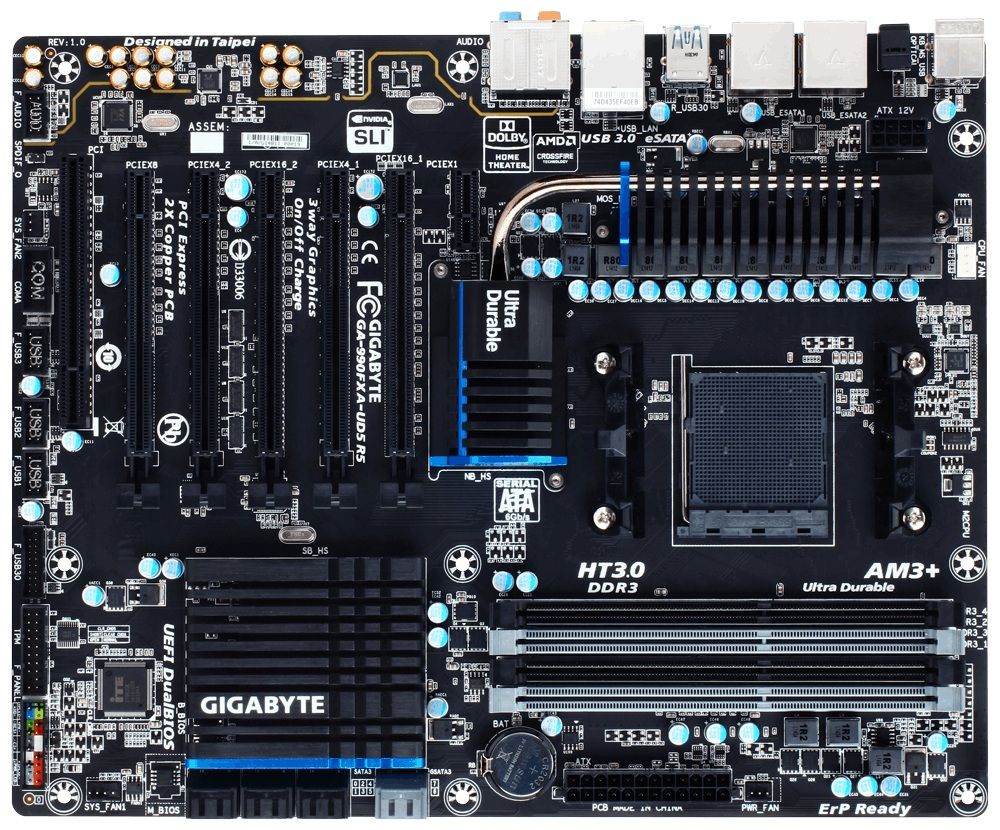

GIGABYTE GA-990FXA-UD5 R5

GIGABYTE GA-990FXA-UD5 R5

Model GA-990FXA-UD5 R5EAN 4719331810351

60 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • USB 2.0 connectors3
  • USB 2.0 ports quantity8
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
USB 2.0 connectors
3
USB 2.0 ports quantity
8
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
GA-990FXA-UD5 R5
Part number
GA-990FXA-UD5 R5
EAN / UPC
4719331810351, 889523000212, 889523000519, 7426100802857 +1 more
Also known as
GIGABYTE GA-990FXA-UD5 R5 motherboard AMD 990FX Socket AM3+ ATX

Specifications

60 specifications in 10 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile, AMD Phenom II X6
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600,1866,2000 MHz
Maximum internal memory32 GB
Supported memory module capacities4GB, 8GB, 16GB

Storage controllers

Supported storage drive interfacesSATA
RAID levels0, 1, 5, 10, JBOD

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors8
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Serial port headers1
TPM connectorYes

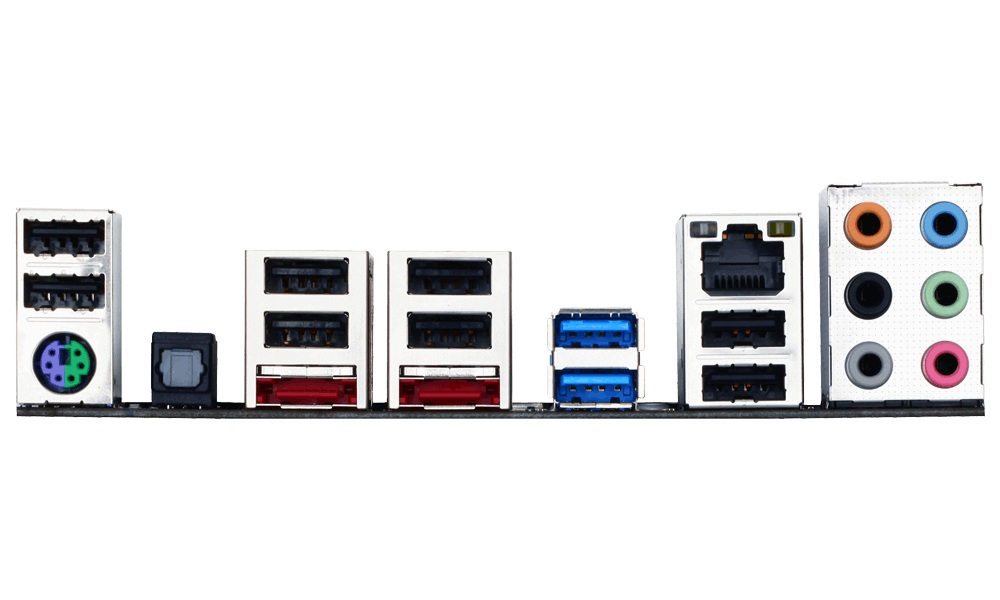

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 990FX
Motherboard southbridgeAMD SB950
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win

Expansion slots

PCI Express x1 slots1
PCI Express x8 slots1
PCI Express x16 slots1
PCI slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size32 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth244 mm
