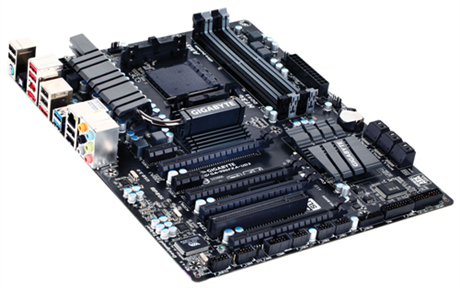

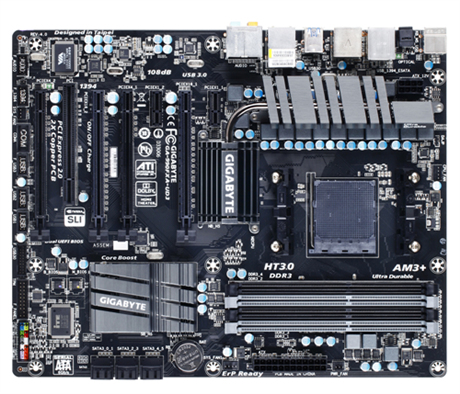

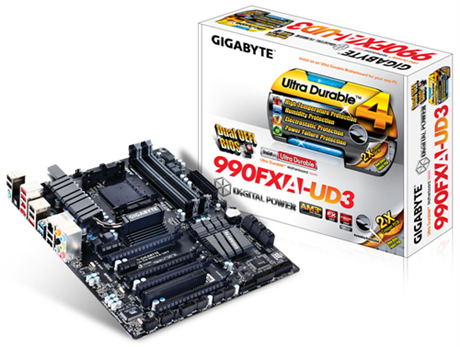

GIGABYTE GA-990FXA-UD3 (rev. 4.0)
Model GA-990FXA-UD3 (rev. 4.0)Part no. GA-990FXA-UD3-R4
58 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors3
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-990FXA-UD3 (rev. 4.0)
- Part number
- GA-990FXA-UD3-R4
- Also known as
- GIGABYTE GA-990FXA-UD3 (rev. 4.0) ATX
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Compatible processor series | Athlon II |
| System bus rate | 5.2 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600,1866,2000 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of IEEE1394 connectors | 1 |
| Serial port headers | 1 |

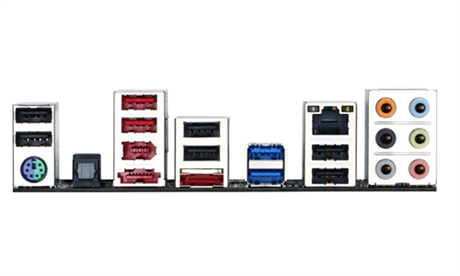

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 4 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security |
What people say
Reviews & ratings
GIGABYTE GA-990FXA-UD3 (rev. 4.0)
No reviews yet
Be the first to tell others how GIGABYTE GA-990FXA-UD3 (rev. 4.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-990FXA-UD3 (rev. 4.0)
All motherboard comparisons- GIGABYTE GA-990FXA-UD3 (rev. 4.0) vsGIGABYTE GA-990FXA-UD7 (rev. 3.0)Compare specs

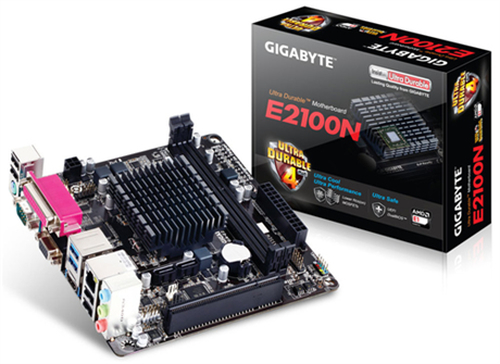

- GIGABYTE GA-990FXA-UD3 (rev. 4.0) vsGIGABYTE GA-E2100N motherboard mini ITXCompare specs
