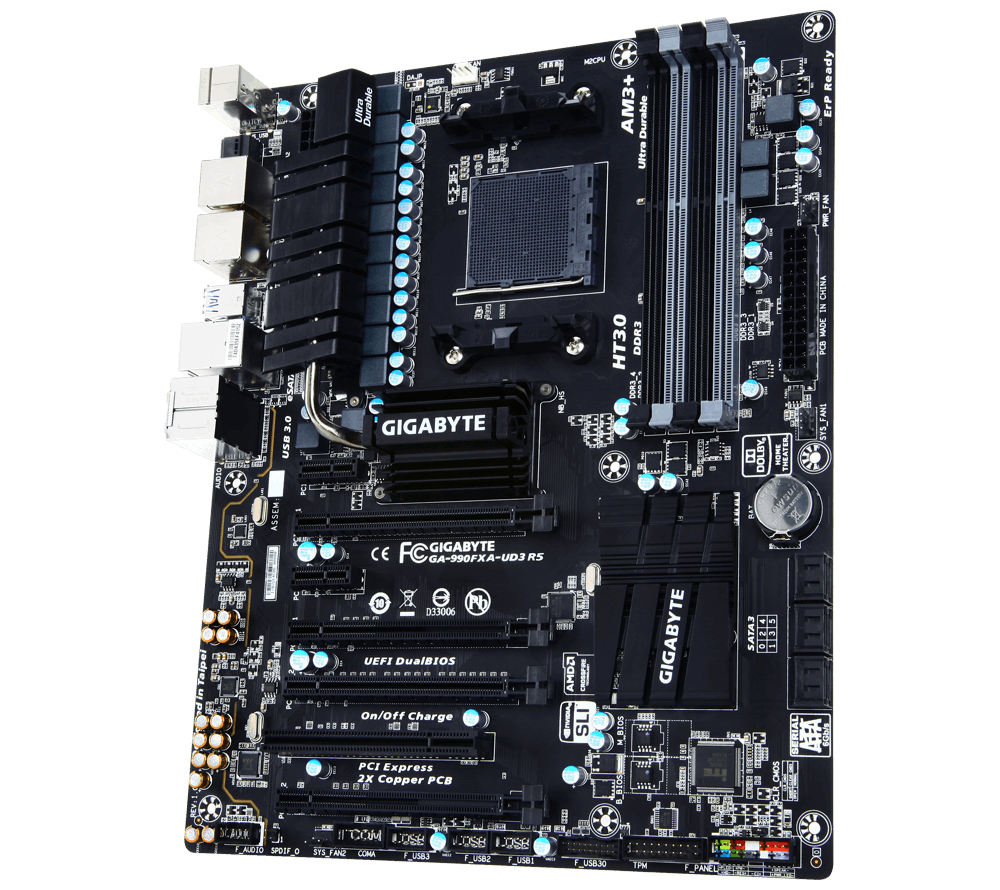

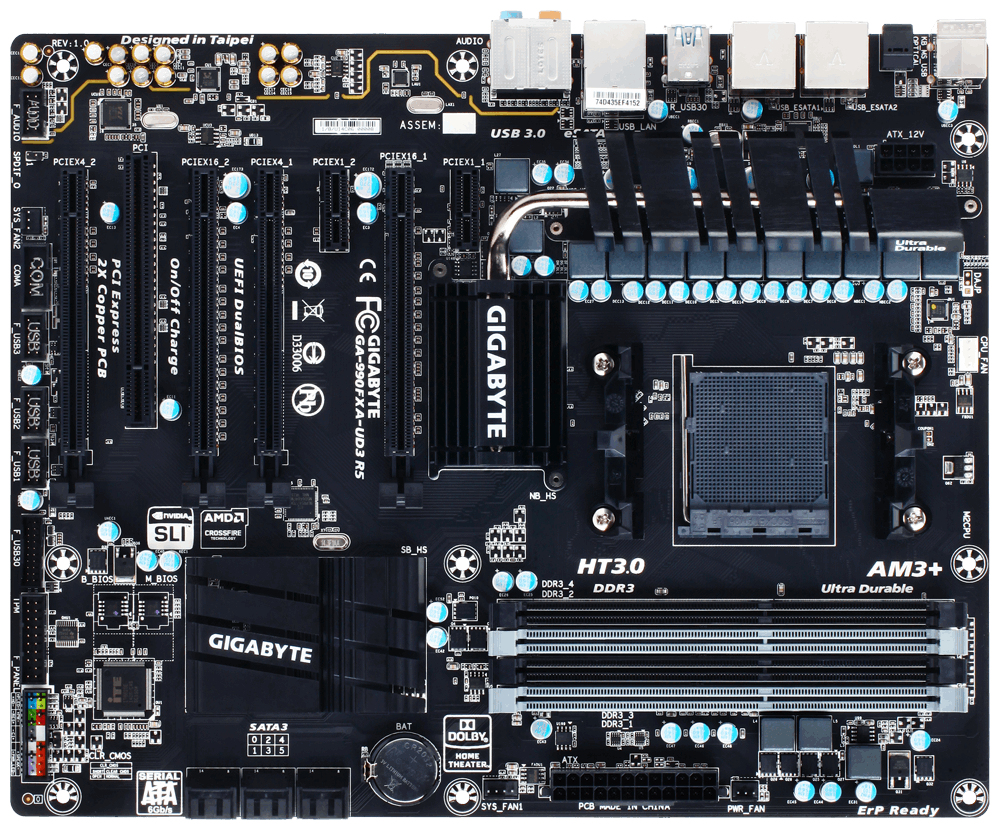

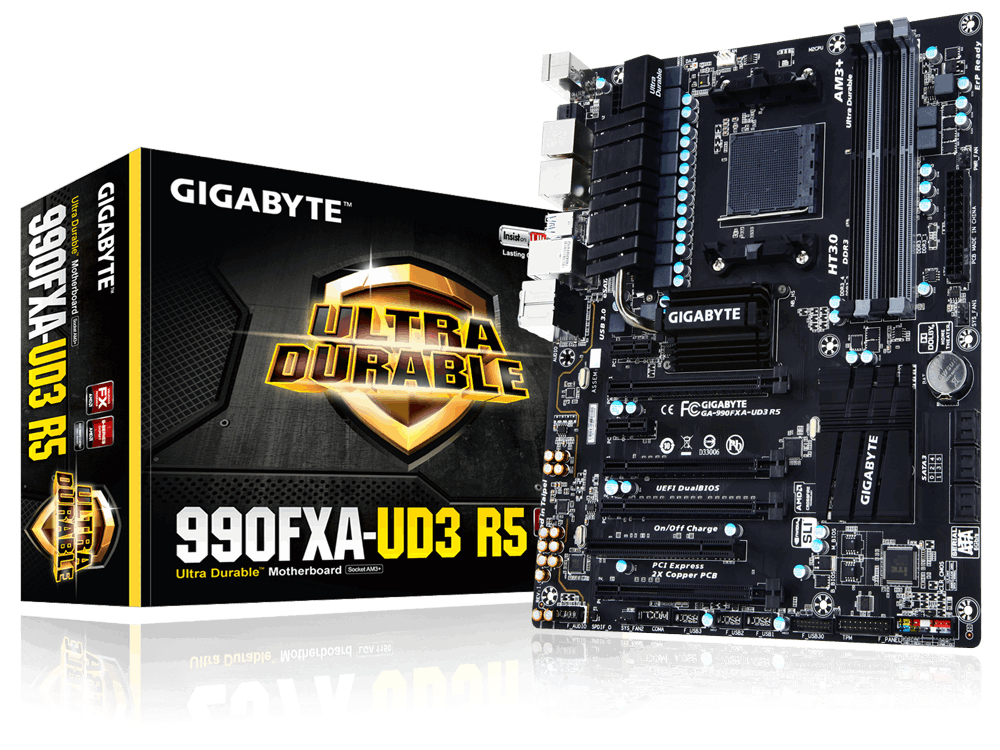

GIGABYTE GA-990FXA-UD3 R5
Model GA-990FXA-UD3 R5EAN 7734322923084
41 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA, SATA III
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors14
- USB 2.0 ports quantity3
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA, SATA III
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 14
- USB 2.0 ports quantity
- 3
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-990FXA-UD3 R5
- Part number
- GA-990FXA-UD3 R5
- EAN / UPC
- 7734322923084, 734911489066, 4719331814281, 5283566774560 +3 more
- Also known as
- GIGABYTE GA-990FXA-UD3 R5 motherboard AMD 990FX Socket AM3 ATX
Specifications
41 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | AMD Phenom |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1066,1333,1600,1866,2000 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA, SATA III |
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 14 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Number of SATA III connectors | 6 |

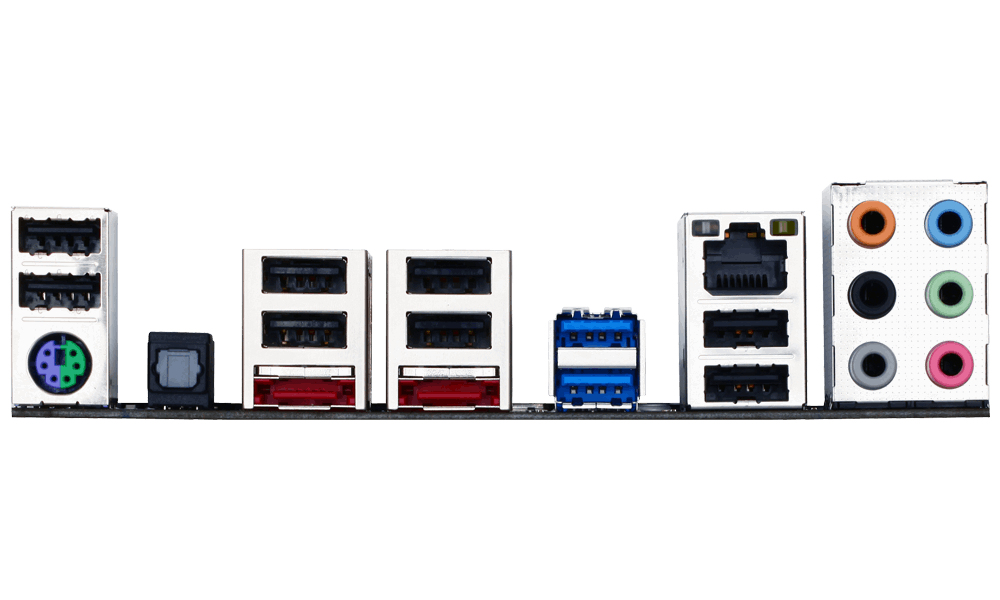

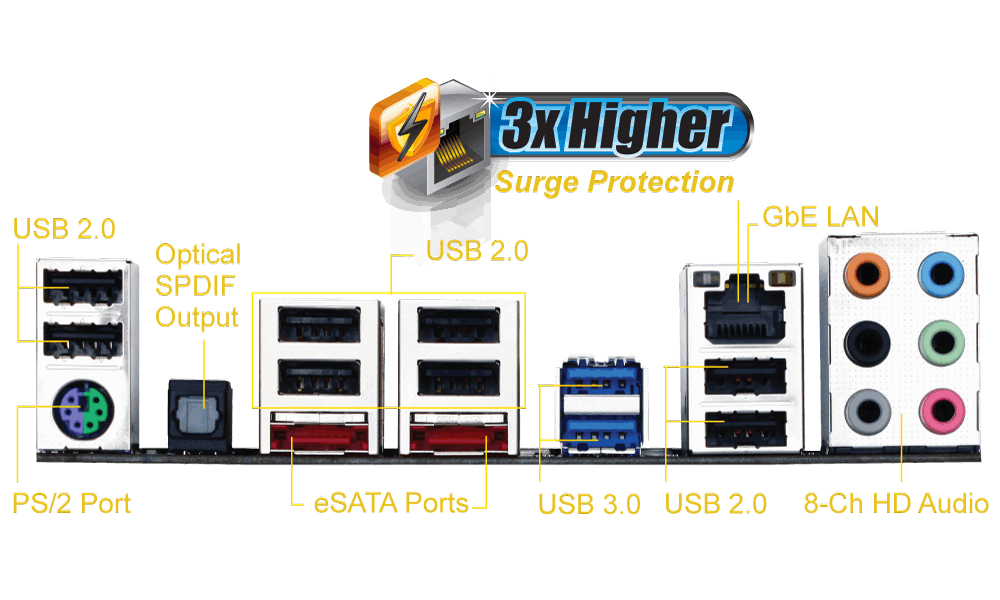

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |

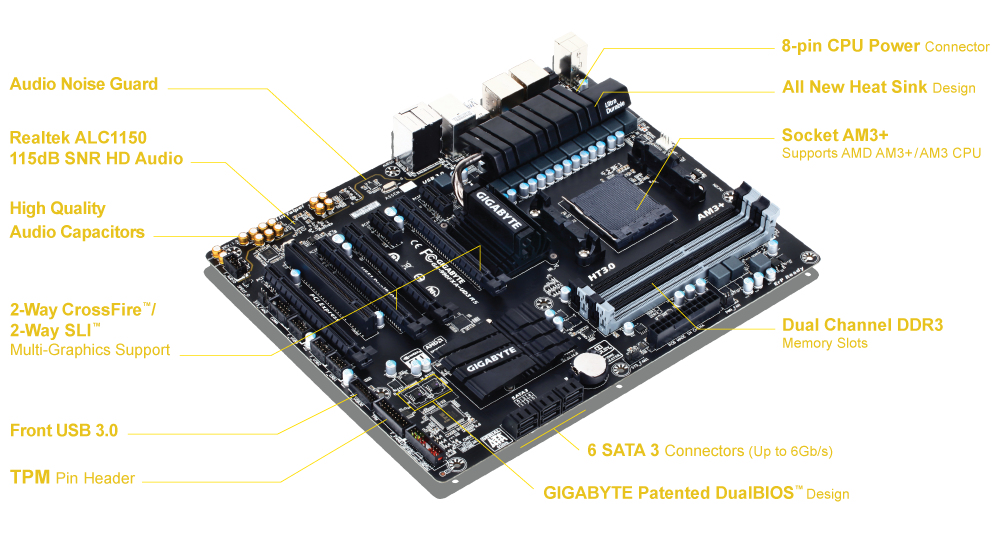

Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD 990FX |
| Motherboard southbridge | AMD SB950 |
| Audio chip | Realtek ALC1150 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Voltage |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Enterprise, Windows 8, Windows 8.1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x4 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 2.x) slots | 2 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM) |
What people say
Reviews & ratings
GIGABYTE GA-990FXA-UD3 R5
No reviews yet
Be the first to tell others how GIGABYTE GA-990FXA-UD3 R5 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-990FXA-UD3 R5
All motherboard comparisons- GIGABYTE GA-990FXA-UD3 R5 vsGIGABYTE GA-Z170MX-Gaming 5Compare specs
- GIGABYTE GA-990FXA-UD3 R5 vsGIGABYTE GA-Z170-HD3 DDR3 (rev. 1.0)Compare specs
- GIGABYTE GA-990FXA-UD3 R5 vsGIGABYTE GA-Z170-HD3 motherboard Intel® Z170 ATXCompare specs
- GIGABYTE GA-990FXA-UD3 R5 vsGIGABYTE Mainboards Intel® Z97 LGA 1150 (Socket H3) ATXCompare specs

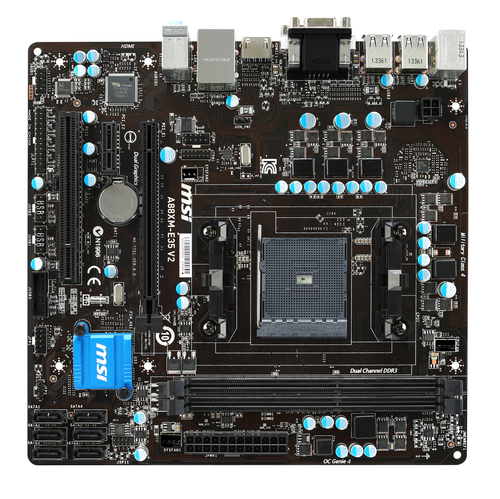

- GIGABYTE GA-990FXA-UD3 R5 vsMSI A88XM-E35 V2Compare specs

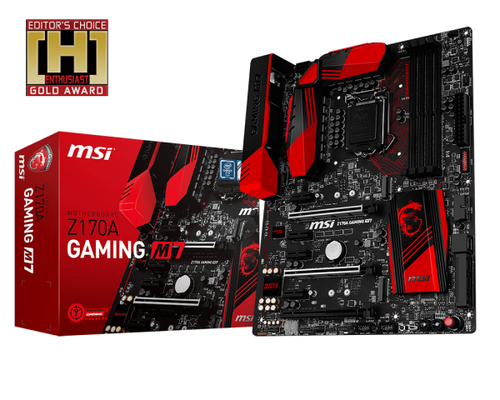

- GIGABYTE GA-990FXA-UD3 R5 vsMSI Z170A GAMING M7Compare specs
- GIGABYTE GA-990FXA-UD3 R5 vsMSI Z170A Gaming ProCompare specs

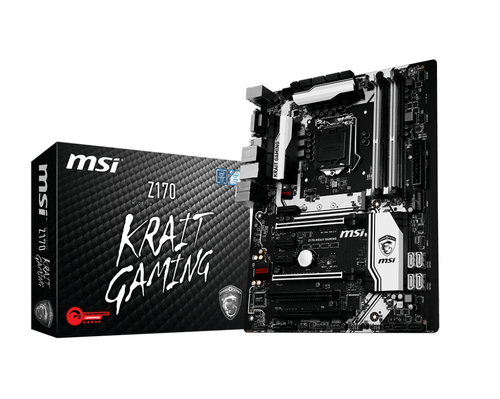

- GIGABYTE GA-990FXA-UD3 R5 vsMSI Z170 Krait GamingCompare specs
