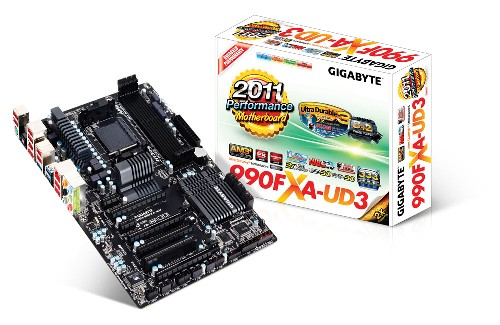

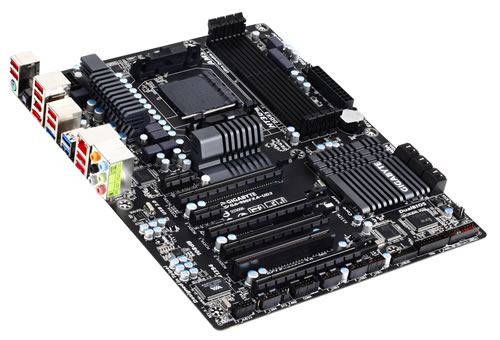

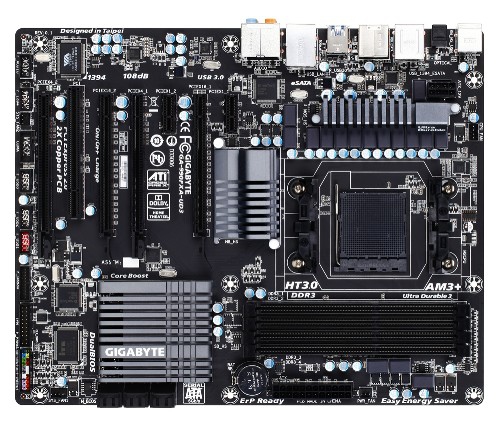

GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX
Model GA-990FXA-UD3Part no. GA-990FXA-UD3-R1EAN 7337331799581
64 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics cardNo
- USB 2.0 connectors3
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card
- No
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-990FXA-UD3
- Part numbers
- GA-990FXA-UD3-R1, GA-990FXA-UD3
- EAN / UPC
- 7337331799581, 172302908916, 320127565276, 705089481329 +11 more
- Also known as
- GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX
Specifications
64 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6 |
| System bus rate | 5.2 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

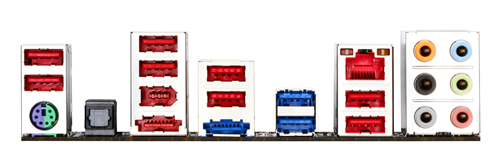

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD 990FX |
| Motherboard southbridge | AMD SB950 |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 4 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
| ACPI version | 1.0b |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Marvell 88SE9172 |
| Audio output | S/PDIF |
What people say
Reviews & ratings
GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX
All motherboard comparisons- GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX vsGIGABYTE GA-Z68A-D3H-B3 motherboard Intel Z68 LGA 1155 (Socket H2) ATXCompare specs
- GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX vsGIGABYTE Motherboard GA-Z68A-D3-B3 Intel Z68 LGA1155 PCI Express DDR3Compare specs

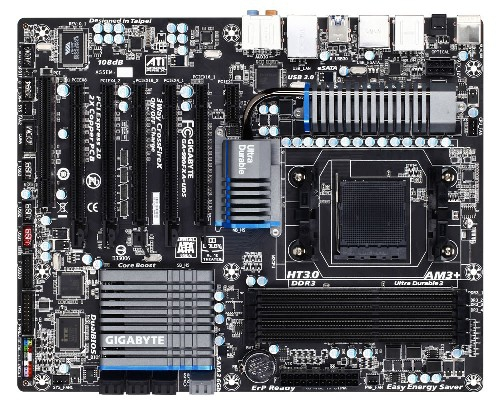

- GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX vsGIGABYTE GA-990FXA-UD5 motherboard AMD 990FX Socket AM3+ ATXCompare specs

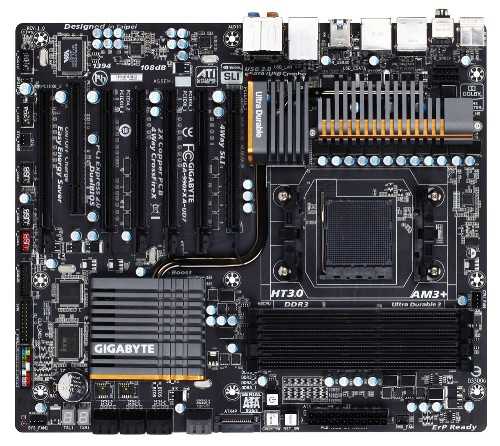

- GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX vsGIGABYTE GA-990FXA-UD7 motherboard AMD 990FX Socket AM3 ATXCompare specs
- GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX vsMSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATXCompare specs
- GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX vsASUS Crosshair V FormulaCompare specs

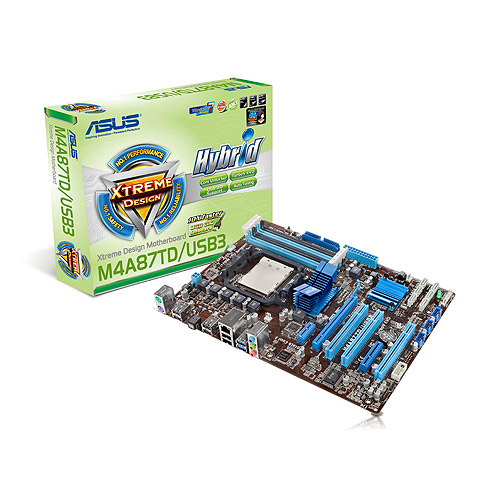

- GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX vsASUS M4A87TD/USB3 AMD 870 (RX881) Socket AM3 ATXCompare specs

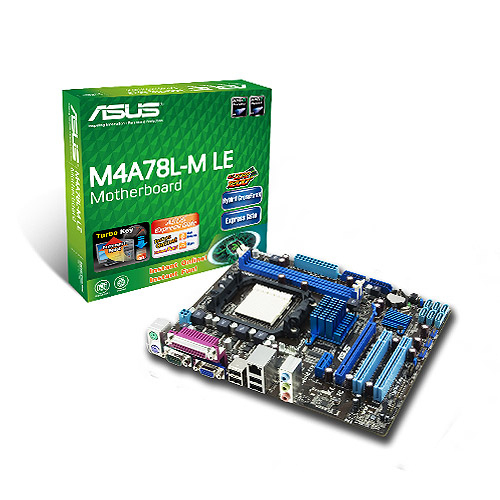

- GIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATX vsASUS M4A78L-M LECompare specs
