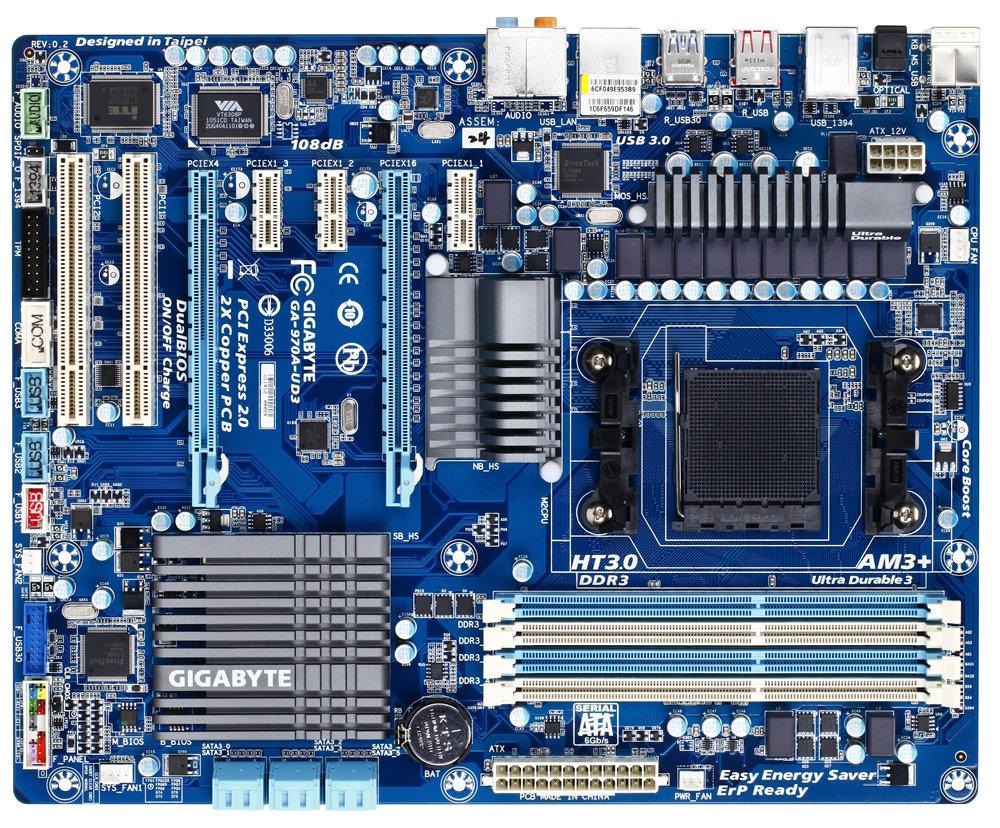

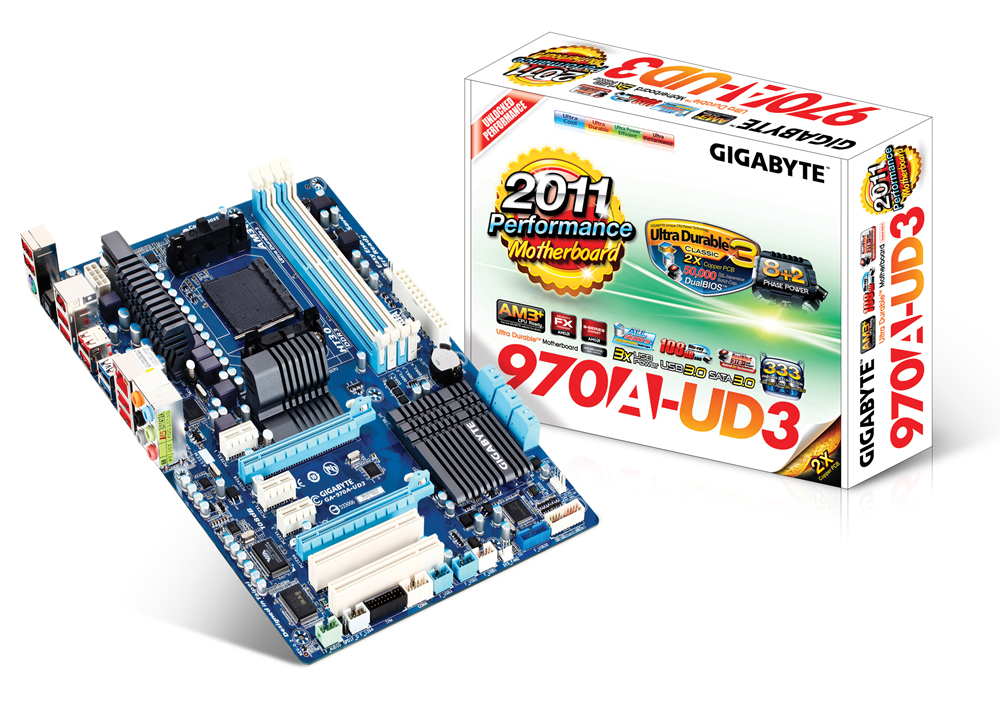

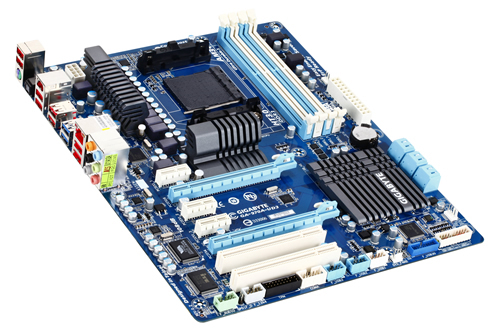

GIGABYTE GA-970A-UD3 motherboard AMD 970 Socket AM3 ATX

GIGABYTE GA-970A-UD3 motherboard AMD 970 Socket AM3 ATX

Model GA-970A-UD3Part no. GA-970A-UD3-R1/1.1EAN 8183130129130

53 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10, JBOD
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10, JBOD
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
8
Brand
GIGABYTE
Category
Motherboard
Model
GA-970A-UD3
Part numbers
GA-970A-UD3-R1/1.1, GA-970A-UD3, GA-970A-UD3-R1, GA-970A-UD3-R1.x
EAN / UPC
8183130129130, 230494843825, 818313012913, 4719331820282
Also known as
GIGABYTE GA-970A-UD3 motherboard AMD 970 Socket AM3 ATX

Specifications

53 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6

Memory

Number of memory slots4
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10, JBOD

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Number of IEEE1394 connectors1
TPM connectorYes

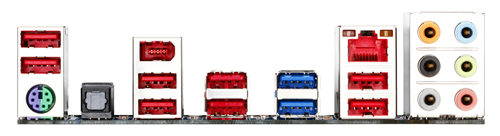

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetAMD 970
Motherboard southbridgeAMD SB950
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows XP, Vista, 7

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots2
PCI slots2

BIOS

BIOS typeAWARD
BIOS memory size64 Mbit
ACPI version1.0b

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Bundled softwareNorton Internet Security
