GIGABYTE GA-970A-DS3P FX

GIGABYTE GA-970A-DS3P FX

Model GA-970A-DS3P FXEAN 889523010907

59 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • RAID levels0, 1, 5, 10, JBOD
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
RAID levels
0, 1, 5, 10, JBOD
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
GA-970A-DS3P FX
Part number
GA-970A-DS3P FX
EAN / UPC
889523010907, 4719331802233
Also known as
GIGABYTE GA-970A-DS3P FX motherboard AMD 990FX Socket AM3+ ATX

Specifications

59 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD FX™, AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600,1866,2000 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10, JBOD

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
12V power connectorYes

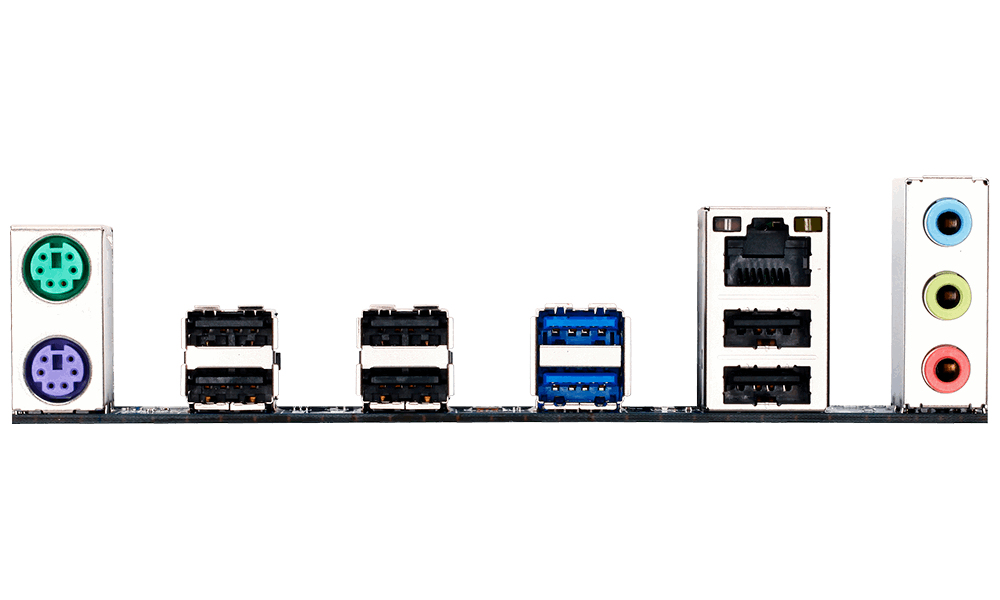

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 990FX
Motherboard southbridgeAMD SB950
Audio chipRealtek ALC887
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature, Voltage
Power source typeATX
Windows operating systems supportedWindows 10, Windows 7, Windows 8.1

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots2
PCI slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth214 mm

Packaging content

Bundled softwareNorton Internet Security
