GIGABYTE GA-970A-DS3 motherboard AMD 970 Socket AM3+ ATX

GIGABYTE GA-970A-DS3 motherboard AMD 970 Socket AM3+ ATX

Model GA-970A-DS3EAN 230494861232

53 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
GIGABYTE
Category
Motherboard
Model
GA-970A-DS3
Part number
GA-970A-DS3
EAN / UPC
230494861232, 112039998750, 191120002248, 818313015181 +1 more
Also known as
GIGABYTE GA-970A-DS3 motherboard AMD 970 Socket AM3+ ATX

Specifications

53 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10, JBOD

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes

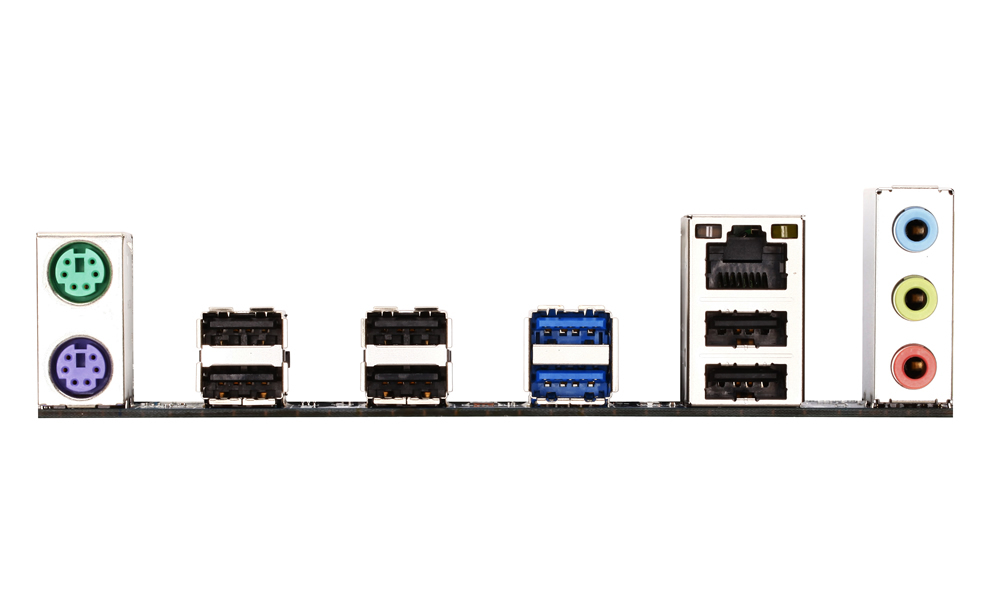

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0

Network

Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 970
Motherboard southbridgeAMD SB950
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMicrosoft Windows 7/Vista/XP
CertificationRoHS

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots2
PCI Express slots version2.0
PCI slots2

BIOS

BIOS typeAWARD
Clear CMOS jumperYes

Weight & dimensions

Width3050 mm
Depth2250 mm

Packaging content

Bundled softwareNorton Internet Security (OEM version)

Other features

Audio outputS/PDIF
