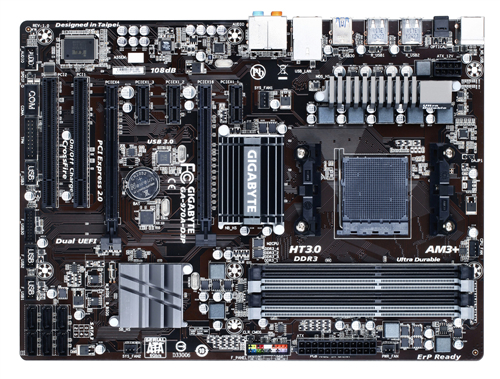

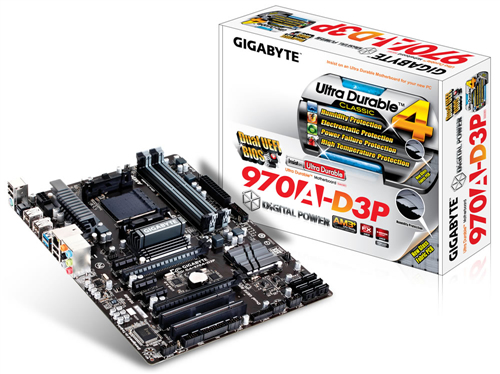

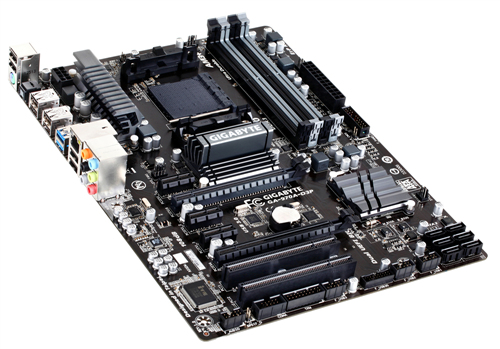

GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX
Model GA-970A-D3PEAN 7426900100146
50 specifications
- Memory32 GB
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors3
- USB 2.0 ports quantity8
Overview
- Memory
- 32 GB
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-970A-D3P
- Part number
- GA-970A-D3P
- EAN / UPC
- 7426900100146, 132017757742, 163121158309, 172302724578 +8 more
- Also known as
- GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX
Specifications
50 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3+ |
| Compatible processor series | AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory voltage | 1.5 V |
| Internal memory | 32 GB |
| Supported memory clock speeds | 1066,1333,1600,1866,2000 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 6, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

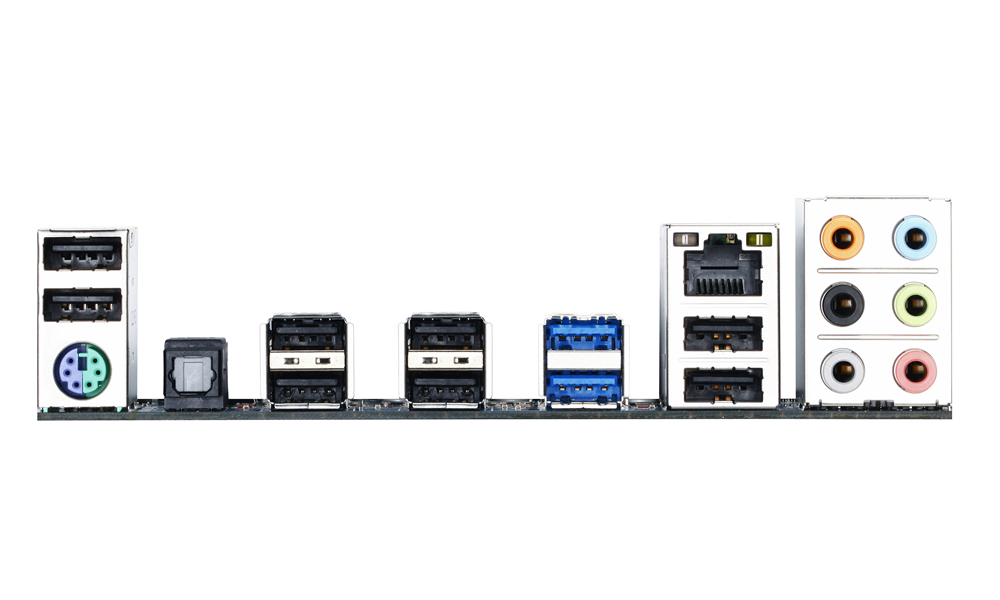

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD 970 |
| Motherboard southbridge | AMD SB950 |
| Audio chip | VIA VT2021 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 3 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 64 Mbit |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 605 mm |
| Depth | 224 mm |
What people say
Reviews & ratings
GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX
All motherboard comparisons- GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX vsGIGABYTE GA-H81M-DS2 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs
- GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX vsGIGABYTE GA-H81M-S2PV motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs

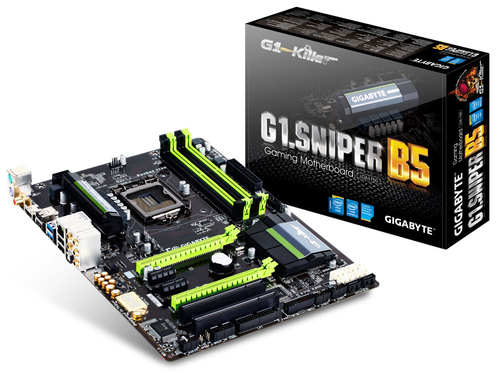

- GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX vsGIGABYTE G1.Sniper B5Compare specs

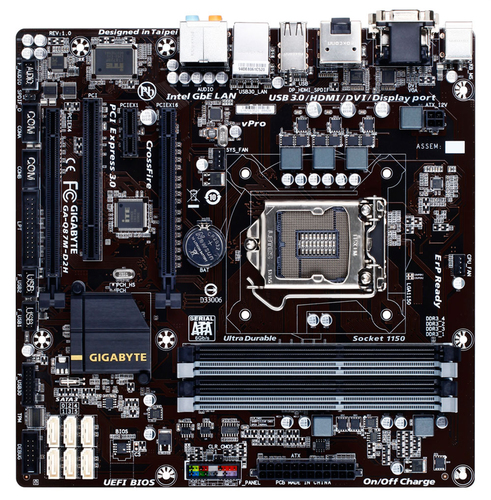

- GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX vsGIGABYTE GA-Q87M-D2H motherboard Intel® Q87 LGA 1150 (Socket H3) micro ATXCompare specs

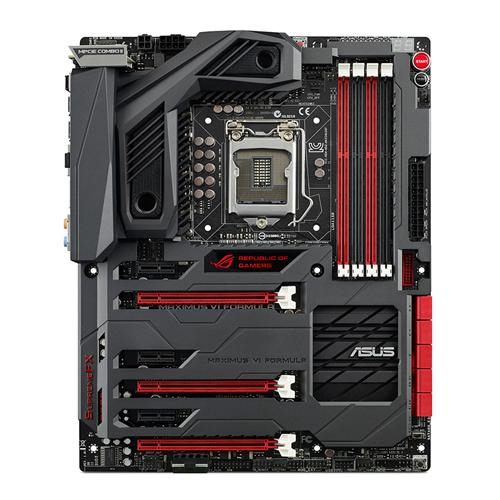

- GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX vsASUS MAXIMUS VI FORMULACompare specs
- GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX vsASUS A55BM-A/USB3 AMD A55 FCH Socket FM2+ micro ATXCompare specs
- GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX vsMSI 785GM-P45 motherboard AMDCompare specs

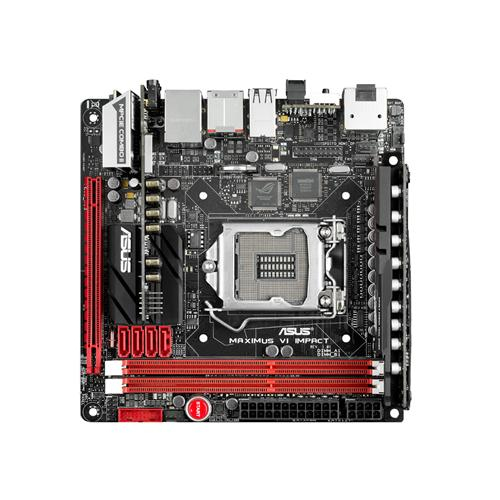

- GIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATX vsASUS Maximus VI ImpactCompare specs
