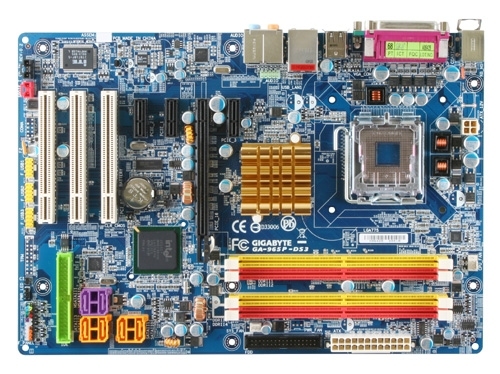

GIGABYTE GA-965P-DS3 Intel P965+ ICH8 chipset
Model GA-965P-DS3 Intel P965+ ICH8 chipsetPart no. GA-965P-DS3EAN 4719331824075
46 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 0+1, JBOD
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- Networking featuresGigabit LAN
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, JBOD
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- Networking features
- Gigabit LAN
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-965P-DS3 Intel P965+ ICH8 chipset
- Part number
- GA-965P-DS3
- EAN / UPC
- 4719331824075
- Also known as
- GIGABYTE GA-965P-DS3 Intel P965+ ICH8 chipset LGA 775 (Socket T) ATX
Specifications
46 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, JBOD |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | No |
| Number of COM connectors | No |
| Number of IEEE1394 connectors | 0 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC883 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 3 x PCI Express x1 3 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATAII |
| Audio output | 7.1 |
| Azalia Digital Header (ADH) connector | No |
| EZ plug connector | No |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | No |
