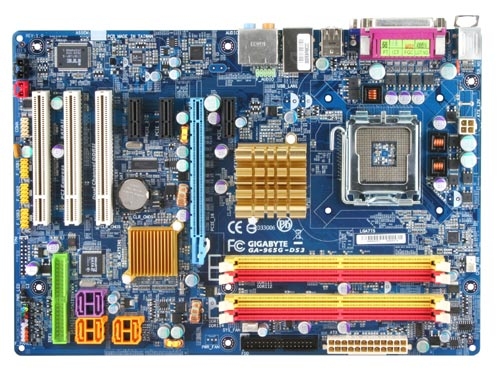

GIGABYTE GA-965G-DS3 Intel G965 + ICH8 chipset
Model GA-965G-DS3 Intel G965 + ICH8 chipsetPart no. 965P-DS3 REV3.3
29 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, JBOD
- USB 2.0 connectors3
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, JBOD
- USB 2.0 connectors
- 3
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-965G-DS3 Intel G965 + ICH8 chipset
- Part number
- 965P-DS3 REV3.3
- Also known as
- GIGABYTE GA-965G-DS3 Intel G965 + ICH8 chipset LGA 775 (Socket T) ATX
Specifications
29 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | PCI Express x16 PCI Express x1 PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
