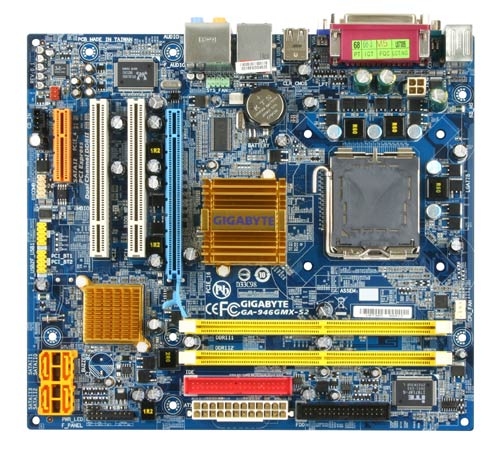

GIGABYTE GA-946GMX-S2 Intel 946GZ + ICH7 chipset
Model GA-946GMX-S2 Intel 946GZ + ICH7 chipsetPart no. GA-946GMX-S2EAN 4719331815165
30 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
- Motherboard form factormicro ATX
- Width220 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- micro ATX
- Width
- 220 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-946GMX-S2 Intel 946GZ + ICH7 chipset
- Part number
- GA-946GMX-S2
- EAN / UPC
- 4719331815165
- Also known as
- GIGABYTE GA-946GMX-S2 Intel 946GZ + ICH7 chipset LGA 775 (Socket T) micro ATX
Specifications
30 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Core™2 Duo |
| Processor system buses supported | 533,800,1066 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 PCI Express x 16 slot - 1 PCI Express x 4 slot - 2 PCI slots |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | Intel 3000 |
