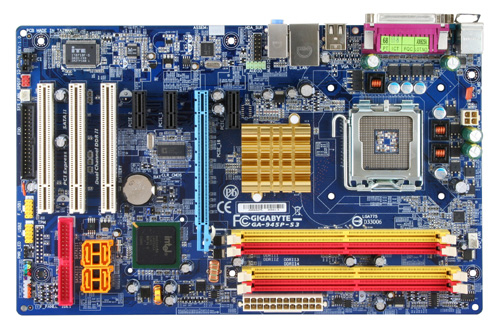

GIGABYTE GA-945P-DS3 Intel 945P+ ICH7 chipset motherboard
Model GA-945P-DS3 Intel 945P+ ICH7 chipset motherboardPart no. GA-945PD-S3
22 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- Networking featuresGigabit LAN
- Motherboard form factorATX
- Expansion slotsPCI Express x 16 PCI Express x 1
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- Gigabit LAN
- Motherboard form factor
- ATX
- Expansion slots
- PCI Express x 16 PCI Express x 1
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-945P-DS3 Intel 945P+ ICH7 chipset motherboard
- Part number
- GA-945PD-S3
- Also known as
- GIGABYTE GA-945P-DS3 Intel 945P+ ICH7 chipset motherboard LGA 775 (Socket T) ATX
Specifications
22 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | PCI Express x 16 PCI Express x 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 4 Mbit |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
