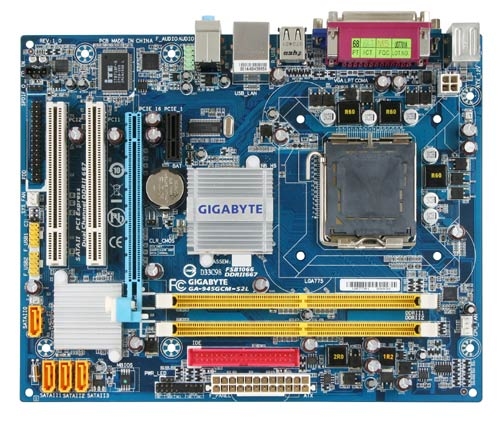

GIGABYTE GA-945GCM-S2L motherboard LGA 775 (Socket T) micro ATX
Model GA-945GCM-S2LEAN 4719331834128
37 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111C
- Motherboard form factormicro ATX
- BIOS typeAWARD
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- micro ATX
- BIOS type
- AWARD
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-945GCM-S2L
- Part number
- GA-945GCM-S2L
- EAN / UPC
- 4719331834128
- Also known as
- GIGABYTE GA-945GCM-S2L motherboard LGA 775 (Socket T) micro ATX
Specifications
37 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | Gigabit ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/XP/2000 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 1 x PCI Express x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 193 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE |
| Controller interface type | SATA |
| Floppy disk drive connector | Yes |
| Graphics controller | Intel GMA 950 |
What people say
Reviews & ratings
GIGABYTE GA-945GCM-S2L motherboard LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-945GCM-S2L motherboard LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-945GCM-S2L motherboard LGA 775 (Socket T) micro ATX
All motherboard comparisons- GIGABYTE GA-945GCM-S2L motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-73PVM-S2H motherboard LGA 775 (Socket T) micro ATXCompare specs

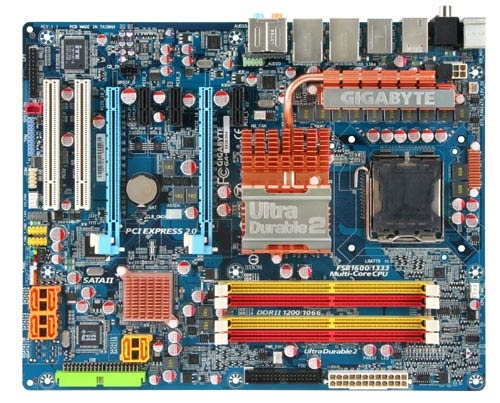

- GIGABYTE GA-945GCM-S2L motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATXCompare specs
- GIGABYTE GA-945GCM-S2L motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE Motherboard GA-EX38-DS4Compare specs

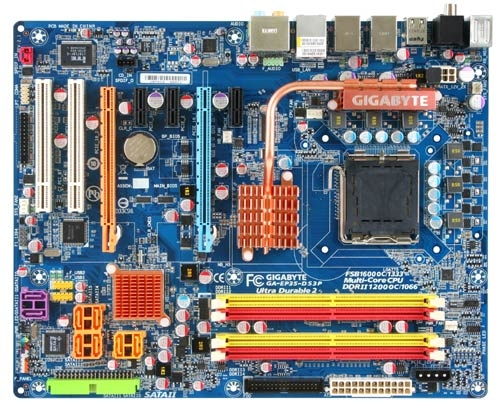

- GIGABYTE GA-945GCM-S2L motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE Motherboard GA-EP35-DS3PCompare specs
